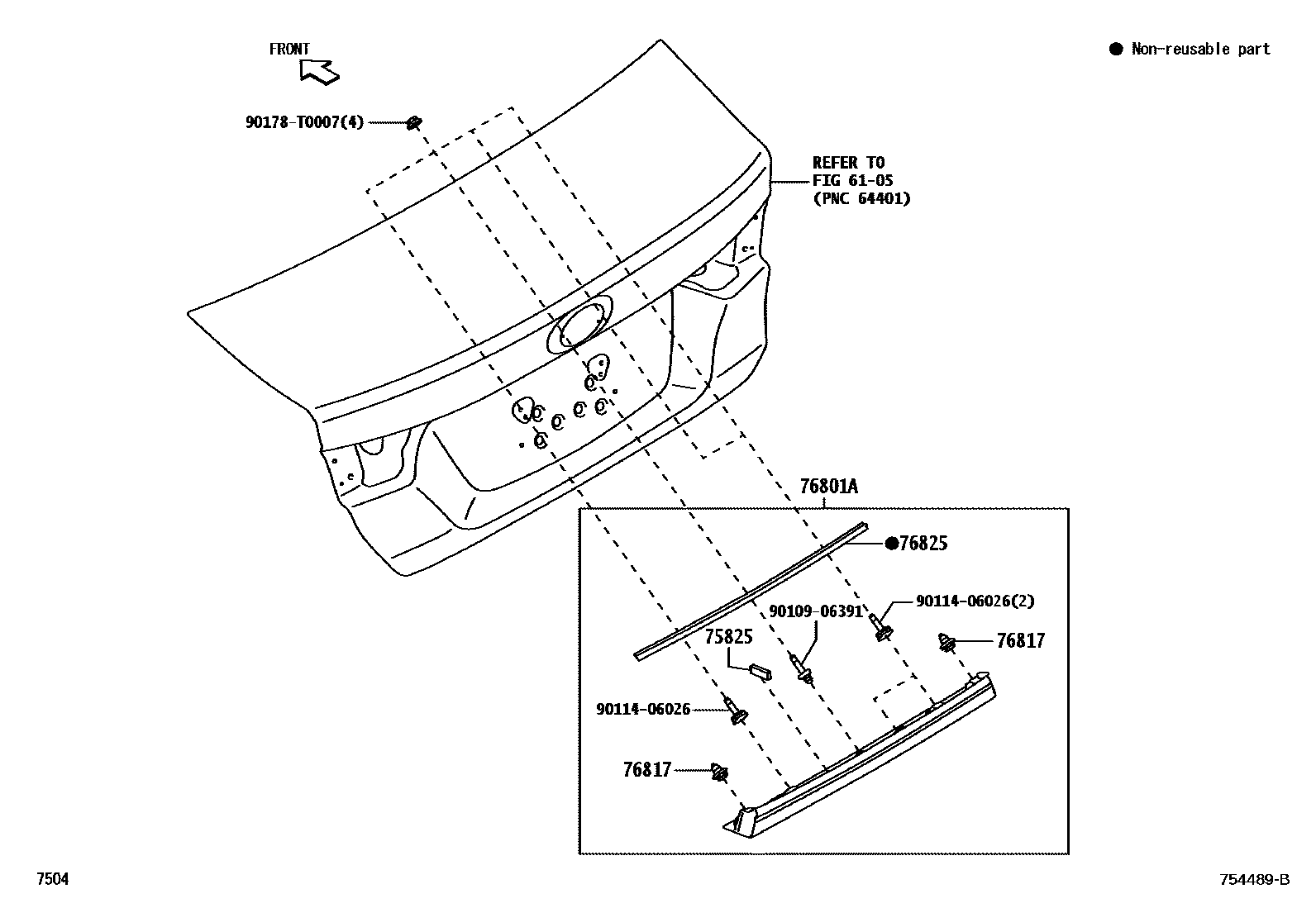

REAR MOULDING
6105LUGGAGE COMPARTMENT DOOR & LOCK
75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING
main75825-BZ010iNGC101,102..H..GCC; NGC102..5F..L; NGC102..CVT..L;NGC102..LHD..(H,M)..(GEN,PHL);NGC100,101,NYC100..(G,H,M)..(GEN,PHL,TH); NGC102..H..GCC; NGC102..RHD..CVT..GEN; NGC102..RHD..CVT..H..GEN202208
BANGLADESH; GCC; MEXICO; NEPAL; QATAR; SINGAPORE; UNITED ARAB EMIRATES; YEMEN,JORDAN,LEBANON
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.
BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
main76801-BZ170-C0iNGC101,102..H..GCC;NGC102..RHD..CVT..H..GEN; NGC101..RHD..M; NGC102..LHD..H..GEN202208
AUDIOLESS PACKAGE,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; BANGLADESH,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
main76801-BZ180-C0iNGC100; NGC101,102..H..GCC; NGC101,102..PHL; NGC101..5F..M..GEN; NGC101..LHD..CVT..M..GEN; NGC101..RHD..(H,M);NGC101,102,NYC100..LHD..H..GEN; NGC102..H..GCC; NGC102..RHD..CVT..GEN; NGC102..RHD..CVT..H..GEN202208
BANGLADESH,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; BLACK,040 ,089 ,1K0 ,218 ,2PS ,2YY ,3R3 ,R77 ,S44; BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; BLACK,089 ,1K0 ,R77 ,S44; GCC,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),BLACK,089 ,1K0 ,3R3 ,R77 ,S44; LAOS,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; NEPAL,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; QATAR,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; SINGAPORE,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; UNITED ARAB EMIRATES,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; VANUATU,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44; YEMEN,JORDAN,LEBANON,BLACK,040 ,089 ,1K0 ,218 ,3R3 ,R77 ,S44
BLACK,089 ,1D4 ,1K3 ,218 ,8X2 ,R77
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,MEXICO
NO PAINT REQ.,AUDIOLESS PACKAGE
GRADE PACKAGE-HI(TH)&(INT+EXT+SPEAKER),GRAY ME.,040 ,089 ,1K0 ,218 ,3R3 ,R77
76817CLIP, BACK DOOR OUTSIDE GARNISH
main90467-09206×2iNGC102..5F..L; NGC102..CVT..L;NGC101,102..H..GCC;NGC10#..(H,M)..(GEN,MA,PHL,TH)202208
MEXICO
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9010906391
main90109-06391
9011406026
main90114-06026
90178T0007
main90178-T0007
8 parts on this diagram · 1 diagram in section
