Toyota 11G210 — FRONT SEAT & SEAT TRACK

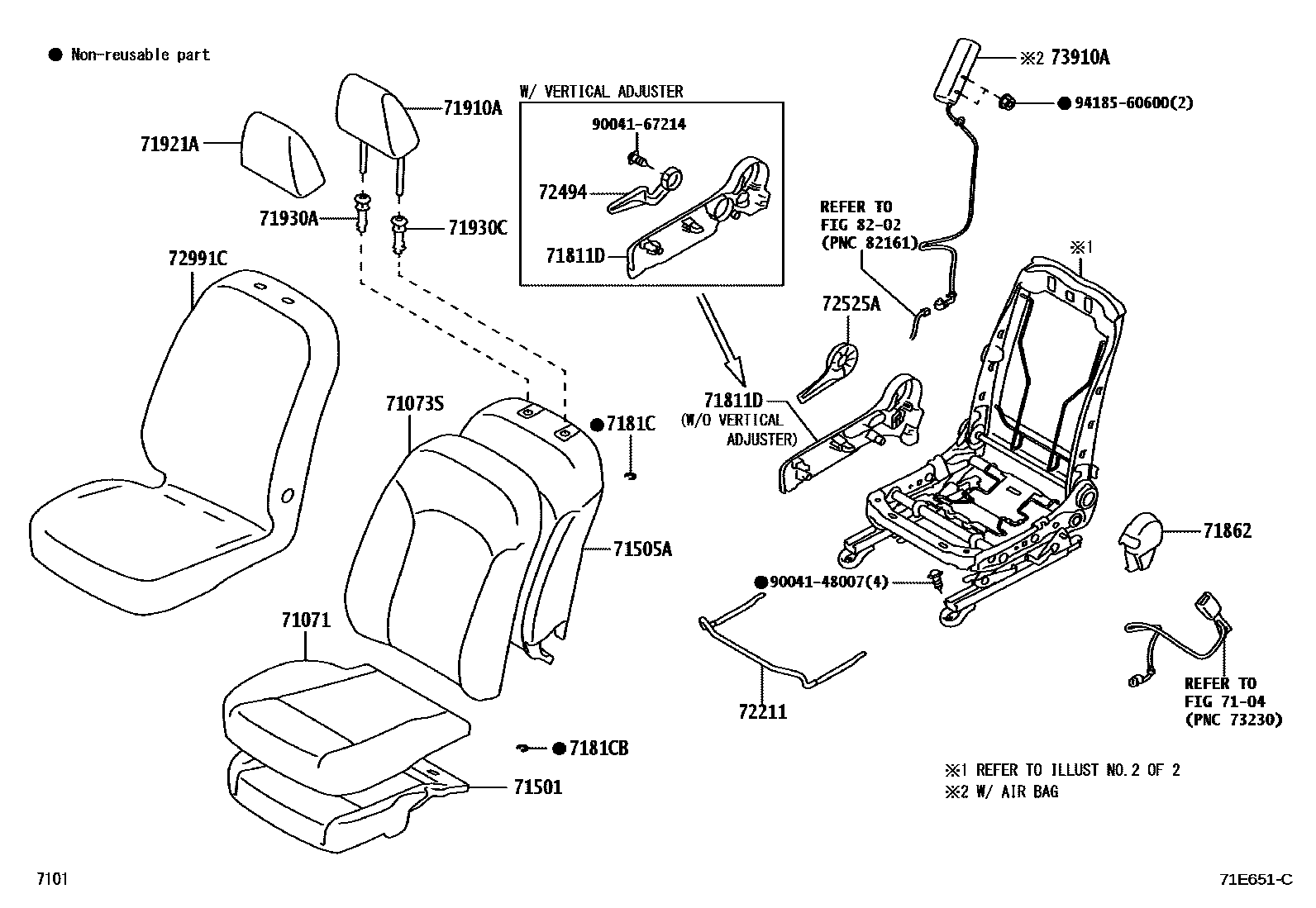

Parts diagram

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

71501PAD SUB-ASSY, FRONT SEAT CUSHION, RH

71505APAD SUB-ASSY, FRONT SEATBACK, RH

71811DSHIELD, FRONT SEAT CUSHION, RH

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71862SHIELD, FRONT SEAT CUSHION, INNER LH

71910AHEADREST ASSY, FRONT SEAT

71921ACOVER, FRONT SEAT HEADREST

71930ASUPPORT ASSY, FRONT SEAT HEADREST

71930CSUPPORT, FRONT SEAT HEADREST, LH

72211HANDLE, SEAT TRACK ADJUSTING

72494HANDLE, VERTICAL ADJUSTING, RH

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

72991CCOVER, FRONT SEAT

73910AAIRBAG ASSY, FRONT SEAT, RH

8202WIRING & CLAMP

→ Go to FIG 82-02

9004148013

9004167214

9418560600

22 parts on this diagram · 8 diagrams in section

FRONT SEAT & SEAT TRACK for Toyota 11G210

This section contains 62 genuine Toyota parts for the FRONT SEAT & SEAT TRACK system of the Toyota 11G210. Key components include: SEAT BELT & CHILD RESTRAINT SEAT, SPRING SUB-ASSY, FRONT SEAT CUSHION, RH, SPRING SUB-ASSY, FRONT SEAT CUSHION, LH, COVER SUB-ASSY, FRONT SEAT CUSHION, RH, COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE).
