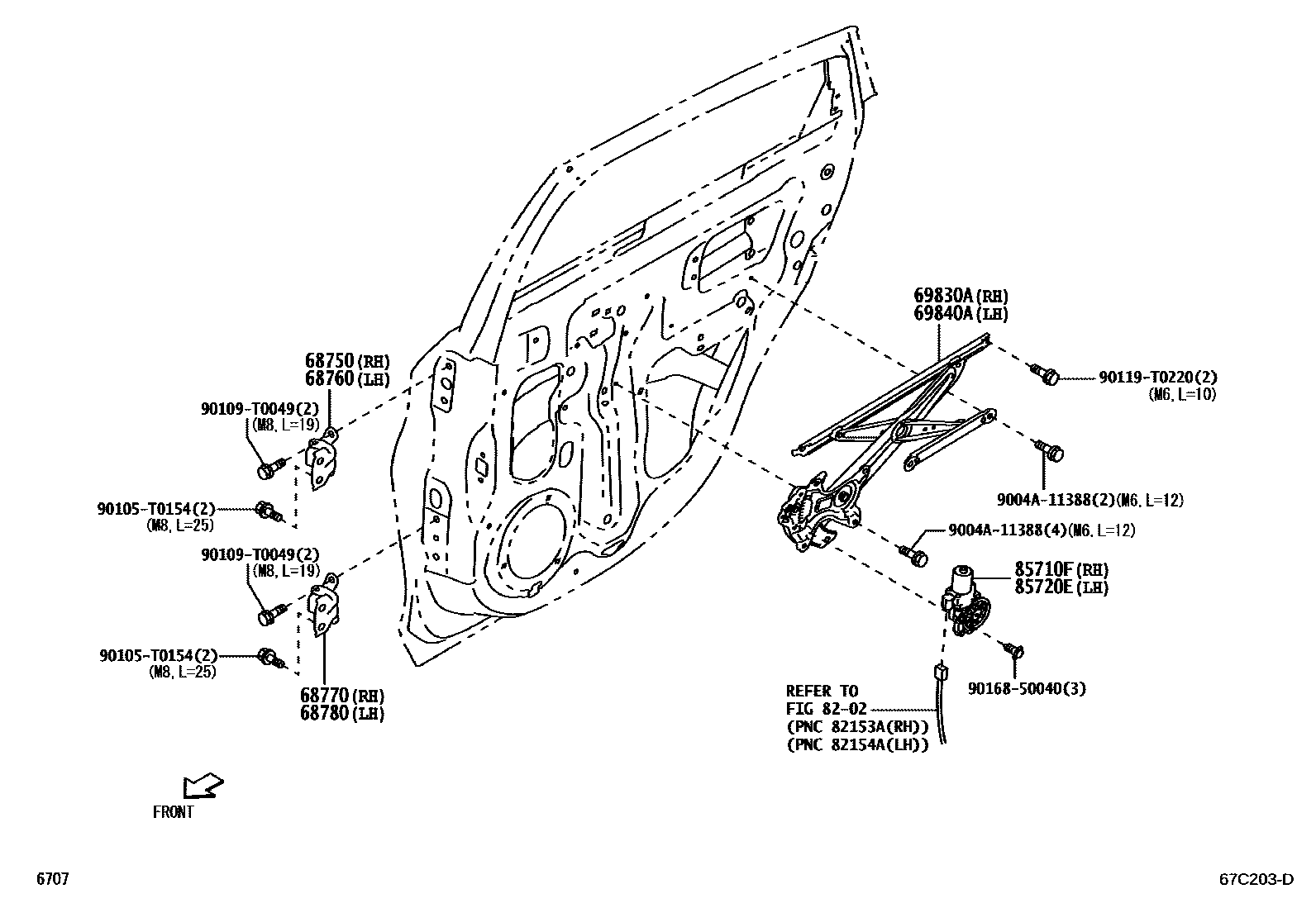

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-BZ130iNGC102..MA202303

main68750-BZ150iNGC10#,NYC100..THP202208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-BZ130iNGC102..MA202303

main68760-BZ150iNGC10#,NYC100..THP202208

68770HINGE ASSY, REAR DOOR, LOWER RH

main68760-BZ130iNGC102..MA202303

main68760-BZ150iNGC10#,NYC100..THP202208

68780HINGE ASSY, REAR DOOR, LOWER LH

main68750-BZ130iNGC102..MA202303

main68750-BZ150iNGC10#,NYC100..THP202208

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69801-BZ210iNGC102..MA202303

main69801-BZ220iNGC10#,NYC100..THP202208

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69802-BZ200iNGC10#,NYC100..THP202208

main69802-BZ210iNGC102..MA202303

8202WIRING & CLAMP

→ Go to FIG 82-02

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-BZ270iNGC10#202208

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-BZ240iNGC10#202208

9004A11388

main9004A-11388

90105T0154

main90105-T0154

90109T0049

main90109-T0049

90119T0220

main90119-T0220

9016850040

main90168-50040

14 parts on this diagram · 2 diagrams in section
