Toyota 11G210 — REAR DOOR LOCK & HANDLE

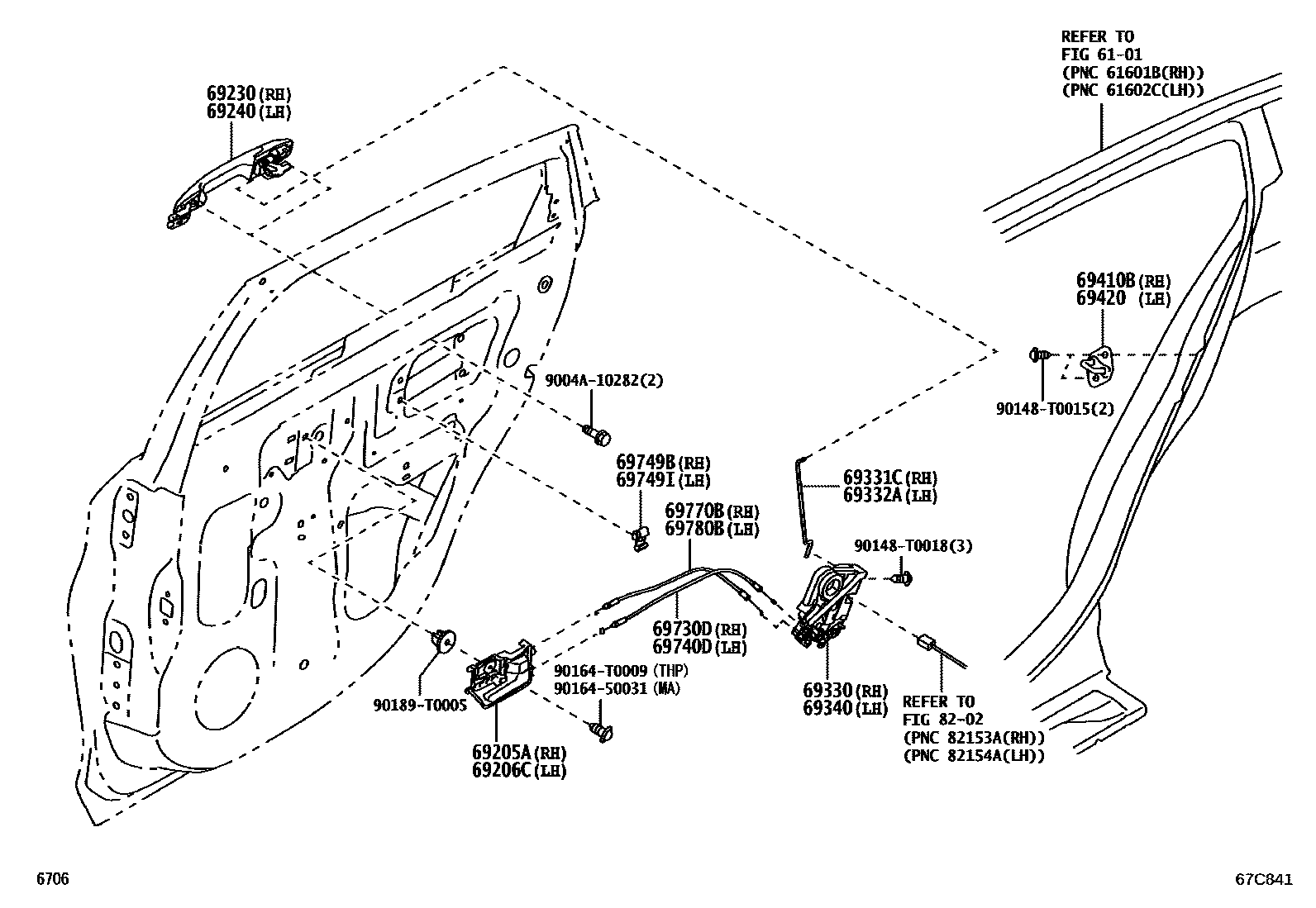

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

69330LOCK ASSY, REAR DOOR, RH

69331CROD, REAR DOOR LOCK OPEN, RH

69332AROD, REAR DOOR LOCK OPEN, LH

69340LOCK ASSY, REAR DOOR, LH

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

69420PLATE ASSY, REAR DOOR LOCK STRIKER

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

69749BCLAMP, REAR DOOR LOCK LINK

69749ICLAMP, DOOR LOCK LINK

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A10282

90148T0015

90148T0018

9016450031

90164T0009

90189T0005

24 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE for Toyota 11G210

This section contains 24 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota 11G210. Key components include: SIDE MEMBER, HANDLE SUB-ASSY, REAR DOOR INSIDE, RH, HANDLE SUB-ASSY, REAR DOOR INSIDE, LH, HANDLE ASSY, REAR DOOR OUTSIDE, RH, HANDLE ASSY, REAR DOOR OUTSIDE, LH.
