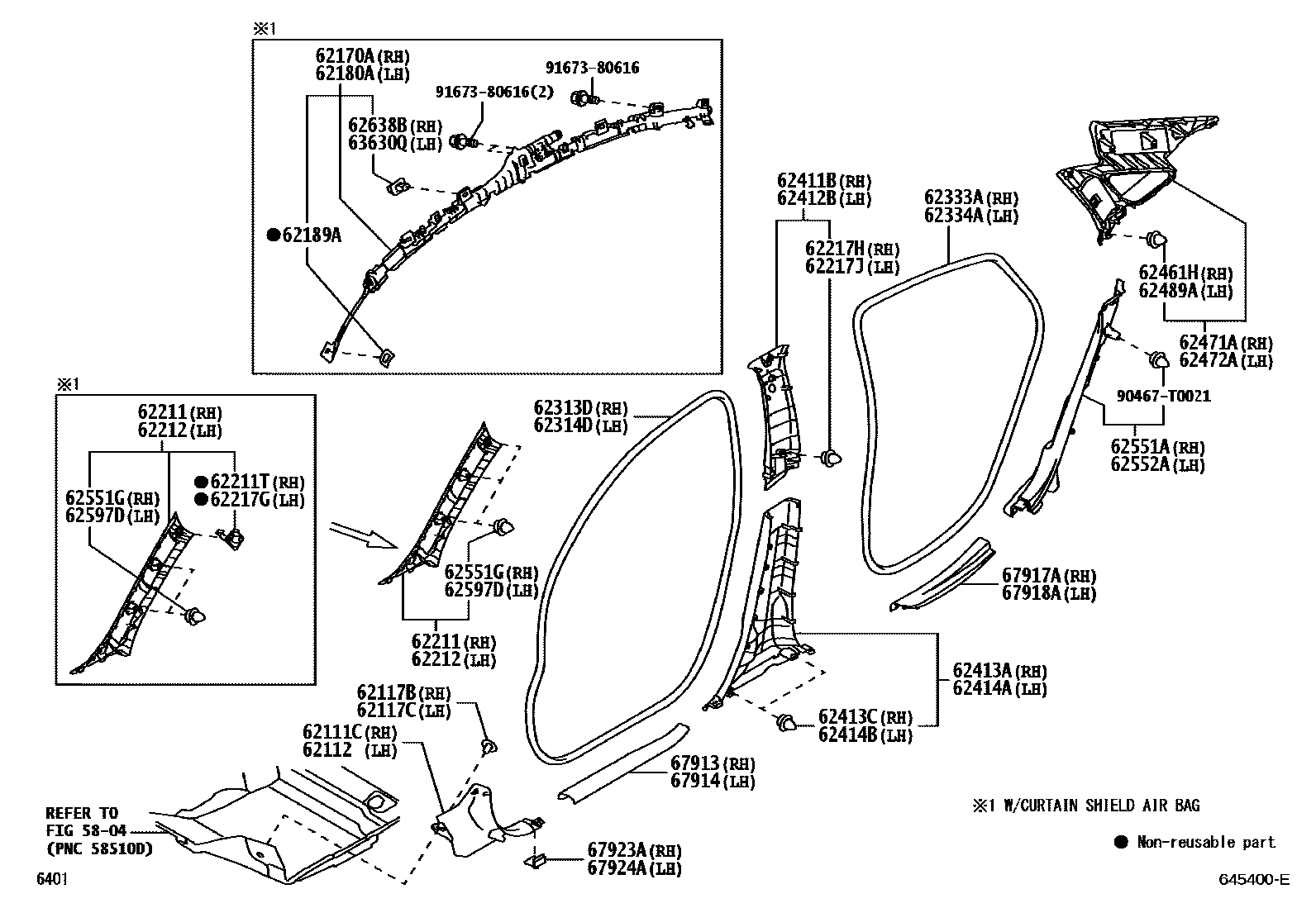

Toyota 11G210 — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804MAT & CARPET
62111CBOARD, COWL SIDE TRIM, RH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211TCLIP(FOR FRONT PILLAR GARNISH)
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62414BCLIP (FOR CENTER LOWER GARNISH)
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
62472AGARNISH, ROOF SIDE, INNER LH
62489ACLIP, ROOF SIDE INNER GARNISH
62551ACOVER, REAR SEAT SIDE, RH
62551GCLIP
62552ACOVER, REAR SEAT SIDE, LH
62597DCLIP
62638BCLIP
63630QCLIP
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67923ACLAMP, DOOR SCUFF PLATE, NO.1
67924ACLAMP, DOOR SCUFF PLATE, NO.2
90467T0021
9167380616
42 parts on this diagram · 2 diagrams in section
INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING for Toyota 11G210
This section contains 42 genuine Toyota parts for the INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING system of the Toyota 11G210. Key components include: MAT & CARPET, BOARD, COWL SIDE TRIM, RH, BOARD, COWL SIDE TRIM, LH, CLIP, NO.1(FOR COWL SIDE TRIM), CLIP, NO.2(FOR COWL SIDE TRIM).
