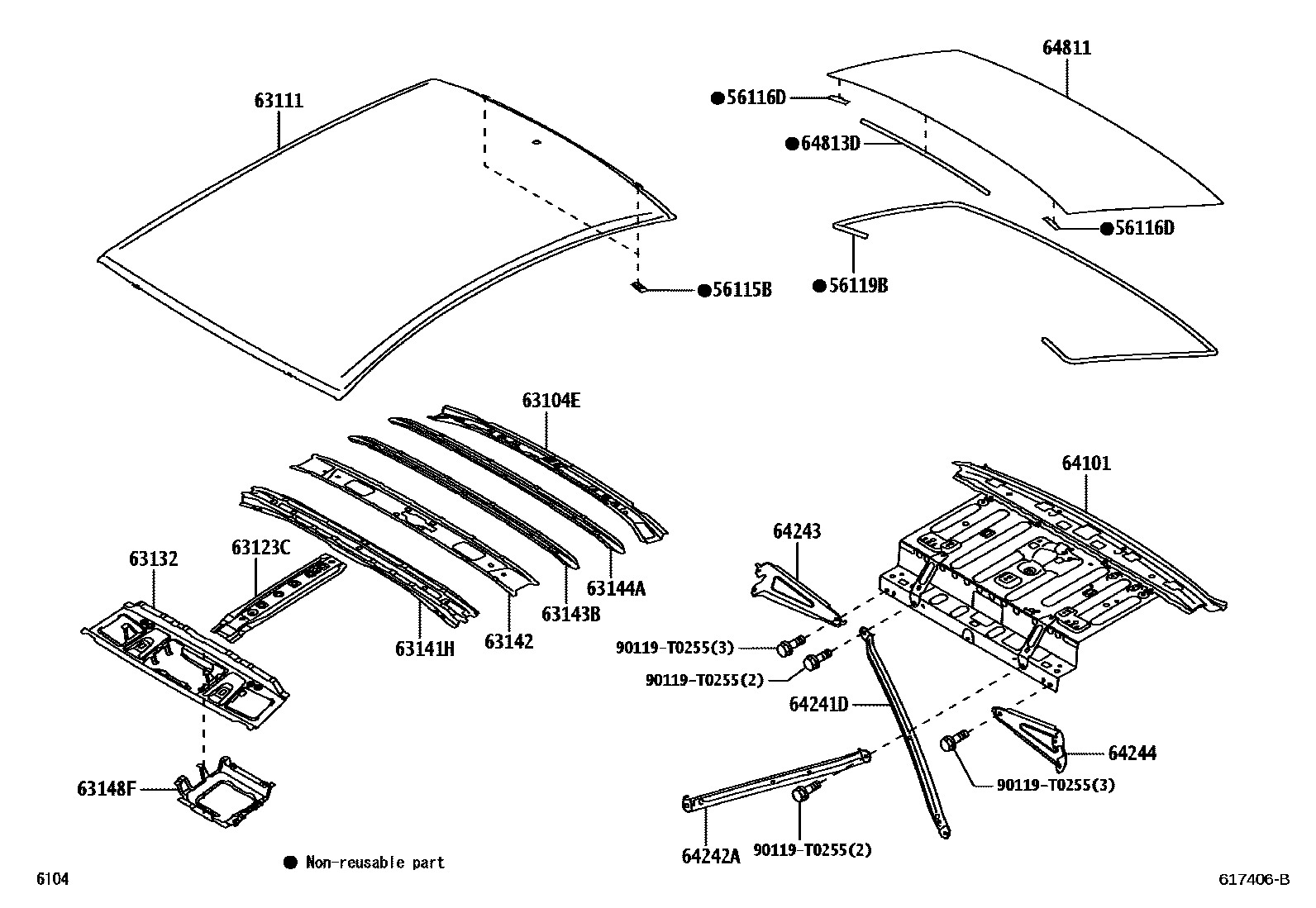

Toyota 11G210 — ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
56119BDAM, BACK WINDOW GLASS ADHESIVE
63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63111PANEL, ROOF
63123CREINFORCEMENT, ROOF PANEL
63132PANEL, WINDSHIELD HEADER, INNER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148FBRACKET, ROOM LAMP
64241DPANEL, ROOM PARTITION
64242APANEL, ROOM PARTITION, LH
64243PANEL, ROOM PARTITION, NO.2 RH
64244PANEL, ROOM PARTITION, NO.2 LH
64813DDAM, BACK WINDOW GLASS ADHESIVE
90119T0255
20 parts on this diagram · 1 diagram in section
ROOF PANEL & BACK WINDOW GLASS for Toyota 11G210
This section contains 20 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota 11G210. Key components include: STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, DAM, BACK WINDOW GLASS ADHESIVE, REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR, PANEL, ROOF.
