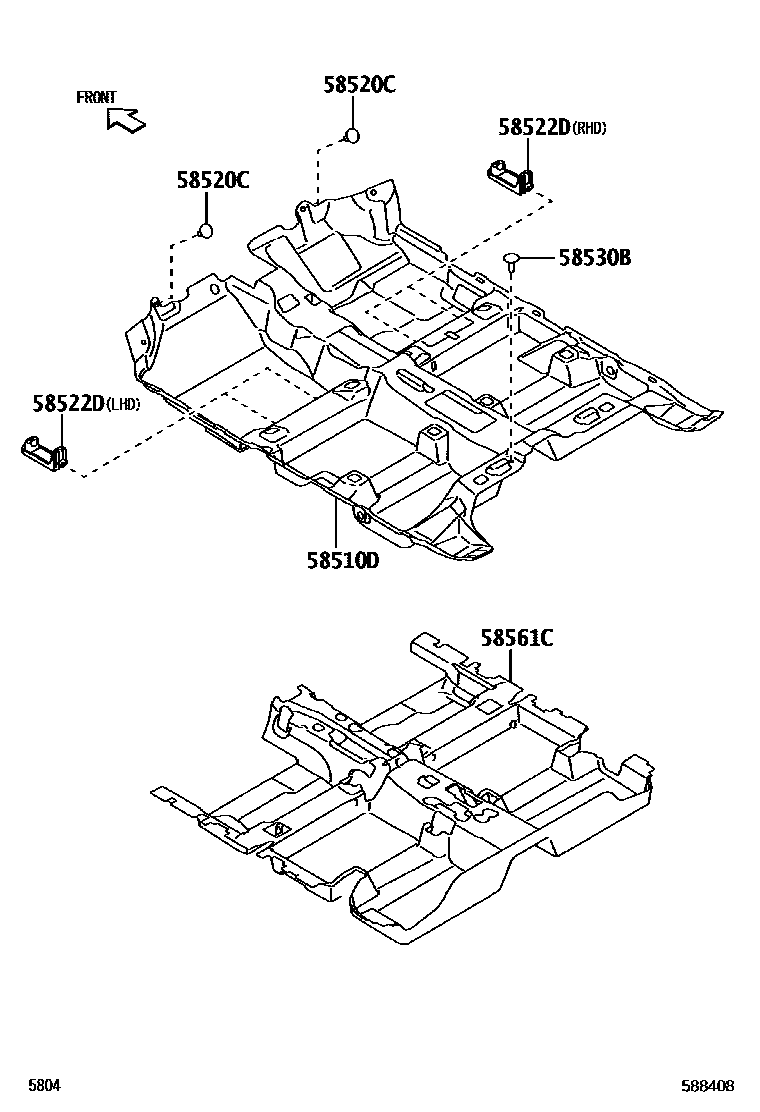

MAT & CARPET

0001 1 0002 1FLOOR MAT

58510DCARPET ASSY, FLOOR, FRONT

main58051-BZ350-C0iNGC102..5F..H202208

BLACK,TRIM2#

main58510-BZZ00-C1iNGC100; NGC101..RHD..(H,L); NGC101..RHD..M;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#

main58510-BZZ10-C1iNGC102..MA202303

BLACK,TRIM2#

main58510-BZZ40-C1iNGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN; NGC101..5F..L;NGC101..5F..PHL;NGC102..LHD..(GEN,PHL);NGC101..LHD..CVT..M..(GEN,PHL)202208

BLACK,TRIM2#; BLACK,TRIM2#,4#

main58051-BZ360-C0iNGC102..RHD..CVT..H..GEN202208

INDONESIA,BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-C1×2iNGC100; NGC101..5F..L;NGC102..5F..H;NGC102..MA,PHL;NGC101..5F..PHL;NGC102..LHD..GEN;NGC101..RHD..(H,L);NGC101..LHD..CVT..M..(GEN,PHL); NGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iNGC10#202208

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iNGC100; NGC101..5F..L;NGC102..5F..H;NGC102..MA,PHL;NGC101..5F..PHL;NGC102..LHD..GEN;NGC101..RHD..(H,L);NGC101..LHD..CVT..M..(GEN,PHL); NGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-BZ050iNGC10#..THP202208

main58561-BZ060iNGC102..MA202303

5 parts on this diagram · 2 diagrams in section
