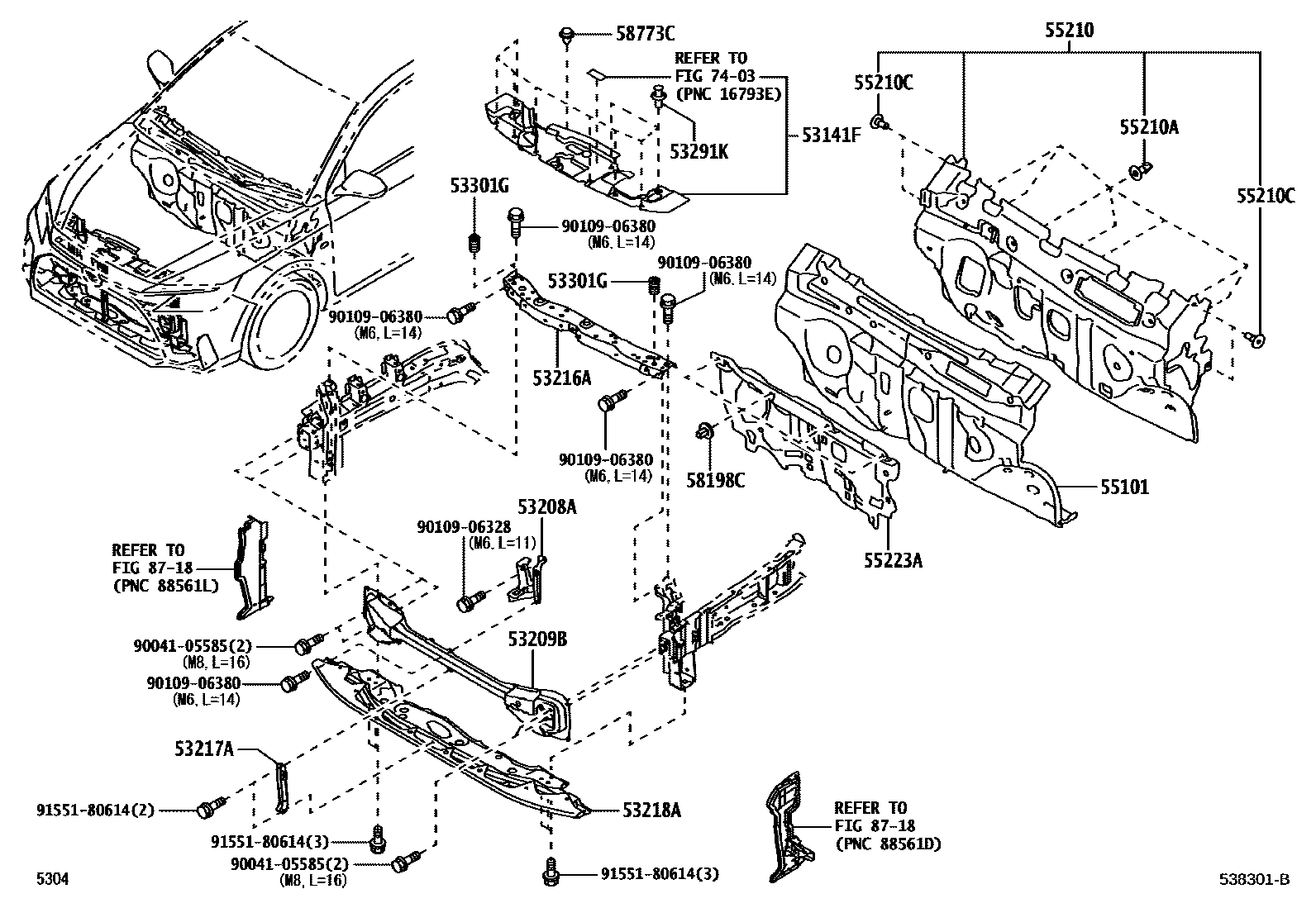

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53141FCOVER, RADIATOR

main53141-BZ050iNGC10#,NYC100..THP202208

main53141-BZ060iNGC102..MA202303

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-BZ160iNGC10#202208

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-BZ110iNGC10#..RHD202208

main53209-BZ130iNGC102..5F..L;NGC101..LHD..(GEN,PHL);NGC102..LHD..(H,M)..(GEN,PHL)202208

main53209-BZ150iNGC102..CVT..L;NGC101,102..GCC202208

MEXICO

53216ASUPPORT, RADIATOR, UPPER

main53216-BZ340iNGC10#202208

53217ABRACE, HOOD LOCK SUPPORT

main53217-BZ030iNGC10#202208

53218ASUPPORT, RADIATOR, LOWER

main53028-BZ250iNGC102..CVT..L;NGC101,102..GCC202208

MEXICO

main53028-BZ310iNGC102..5F..L;NGC100,101..GEN,PHL,TH;NGC102..(H,M)..(GEN,MA,PHL)202208

53291KCLIP, RADIATOR COVER PLATE

main90467-T0048iNGC10#202208

53301GCUSHION, HOOD BUMPER

main90541-15037iNGC10#202208

55101PANEL SUB-ASSY, DASH

main55101-BZR20iNGC100,102..RHD..CVT202208

main55101-BZR30iNGC102..5F..H202208

main55101-BZR40iNGC102..RHD..CVT..H..GEN202208

BANGLADESH

main55101-BZR40iNGC101..RHD202208

NEPAL

main55101-BZR50iNGC101..5F..M;NGC102..LHD..5F202208

main55101-BZR70iNGC102..5F..L202208-202310

MEXICO

main55101-BZR70iNGC102..5F..L202208-202310

ECUADOR

main55101-BZR70iNGC102..LHD..5F202208-202310

PERU

main55101-BZR80iNGC101,102..LHD..CVT..M;NGC101,102..LHD..H..(GEN,PHL)202208

main55101-BZS00iNGC101..M..GCC202208-202310

YEMEN,JORDAN,LEBANON&GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA)

main55101-BZS00iNGC102..CVT..L;NGC101,102..H..GCC202208-202310

PERU

main55101-BZS00iNGC102..CVT..L;NGC101,102..H..GCC202208-202310

MEXICO

55210INSULATOR ASSY, DASH PANEL

main55210-BZ410iNGC10#..RHD202208

main55210-BZ710iNGC101,102..LHD202208

55210ACLIP

main90467-11122iNGC10#202208

55210CCLIP

main90467-13079iNGC10#202208

55223AINSULATOR, DASH PANEL, OUTER

main55223-BZ250iNGC10#..RHD202208

main55223-BZ260iNGC101,102..LHD202208

58198CCLIP, DASH PANEL INSULATOR PAD

main90467-06197iNGC101,102..LHD202208

58773CRETAINER(RADIATOR COVER)

main90467-07221iNGC10#202208

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004105585

main90041-05585

9010906328

main90109-06328

9010906380

main90109-06380

9155180614

main91551-80614

21 parts on this diagram · 3 diagrams in section
