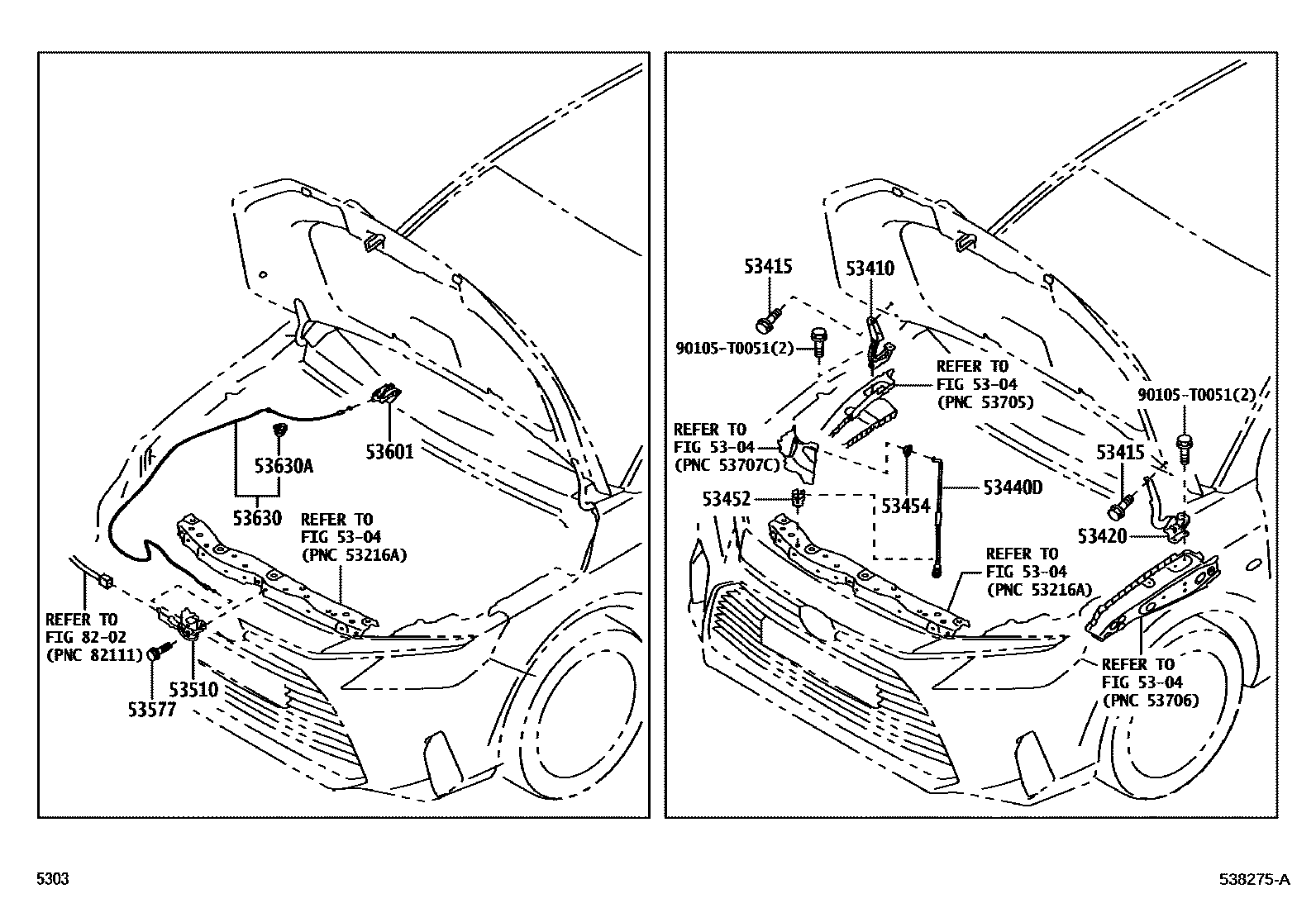

HOOD LOCK & HINGE

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53410-BZ080iNGC10#202208

53415BOLT, HOOD HINGE

main90105-T0051×4iNGC10#202208

53420HINGE ASSY, HOOD, LH

main53420-BZ080iNGC10#202208

53440DSUPPORT ASSY, HOOD

main53440-BZ170iNGC10#202208

53452HOLDER, HOOD STAY

main53452-BZ100iNGC10#202208

53454CLIP, HOOD SUPPORT ROD

main90480-T0009iNGC10#202208

53510LOCK ASSY, HOOD

main53510-BZ450iNGC10#..RHD202208

main53510-BZ460iNGC101,102,NYC100..LHD202208

53577BOLT, HOOD LOCK

main90105-T0051×3iNGC10#202208

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iNGC100; NGC101..5F..L;NGC102..5F..H;NGC102..MA,PHL;NGC101..5F..PHL;NGC102..LHD..GEN;NGC101..RHD..(H,L);NGC101..LHD..CVT..M..(GEN,PHL); NGC101..RHD..M;NGC101,102..GCC;NGC101..5F..M..GEN;NGC101..LHD..H..GEN;NGC102..RHD..CVT..GEN202208

BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ380iNGC10#,NYC100..RHD..THP202208

main53630-BZ390iNGC101,102,NYC100..LHD202208

main53630-BZ400iNGC102..MA202303

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main85373-BZ180iNGC10#202208

8202WIRING & CLAMP

→ Go to FIG 82-02

90105T0051

main90105-T0051

14 parts on this diagram · 2 diagrams in section
