Toyota 11G210 — BRAKE TUBE & CLAMP

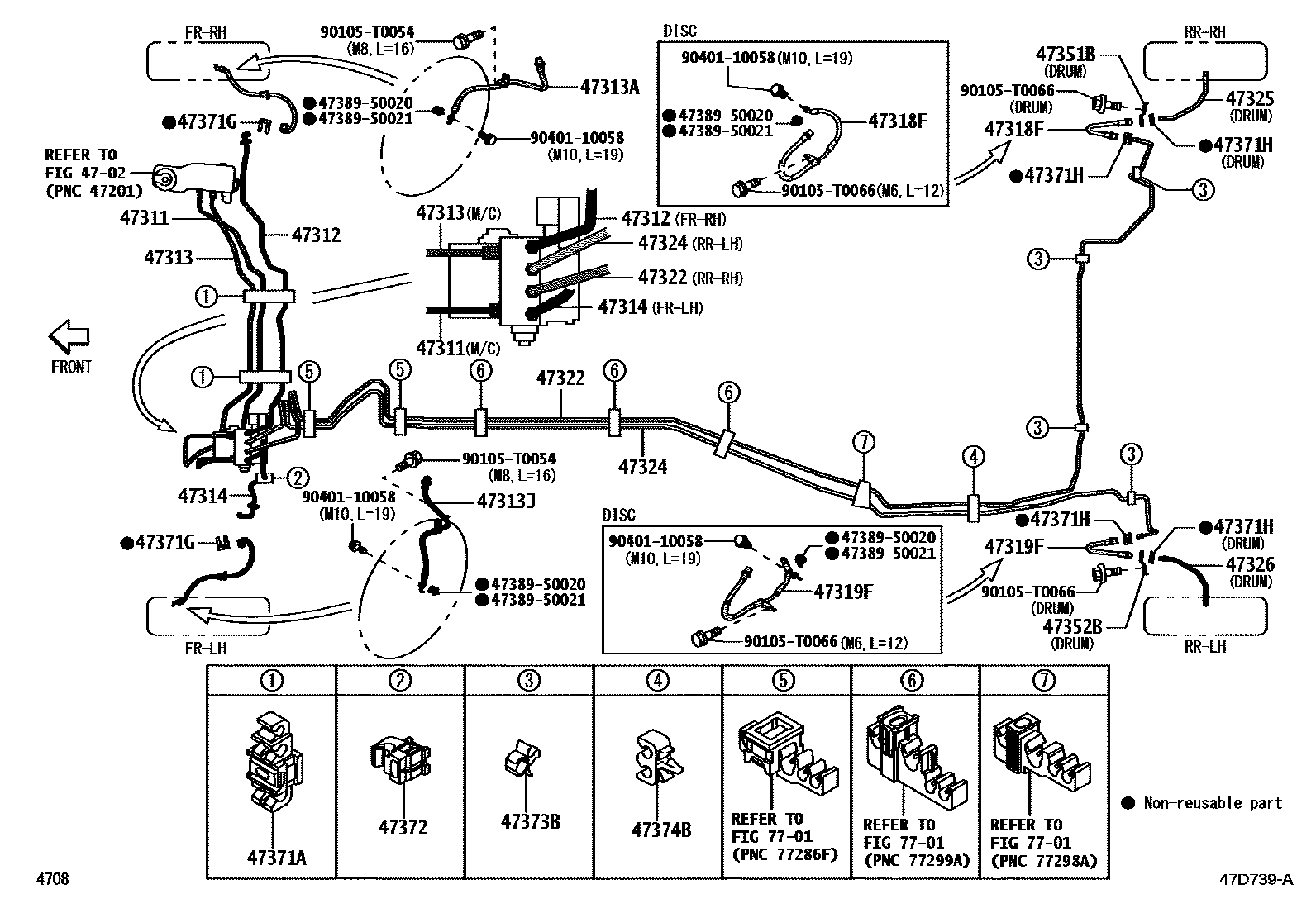

Parts diagram

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

47312TUBE, FRONT BRAKE, NO.2

47313TUBE, FRONT BRAKE, NO.3

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

47314TUBE, FRONT BRAKE, NO.4

47318FHOSE, FLEXIBLE(FOR REAR RH)

47319FHOSE, FLEXIBLE(FOR REAR LH)

47322TUBE, REAR BRAKE, NO.2

47324TUBE, REAR BRAKE, NO.4

47325TUBE, REAR BRAKE, NO.5

47326TUBE, REAR BRAKE, NO.6

47351BBRACKET, FLEXIBLE HOSE, NO.1

47352BBRACKET, FLEXIBLE HOSE, NO.2

47371ACLAMP, BRAKE TUBE, NO.1

47371GCLAMP, BRAKE TUBE, NO.11

47371HCLAMP, BRAKE TUBE, NO.12

47372CLAMP, BRAKE TUBE, NO.2

47373BCLAMP, BRAKE TUBE, NO.3

47374BCLAMP, BRAKE TUBE, NO.4

7701FUEL TANK & TUBE

→ Go to FIG 77-01

4738950020

4738950021

90105T0054

90105T0066

9040110058

27 parts on this diagram · 7 diagrams in section

BRAKE TUBE & CLAMP for Toyota 11G210

This section contains 42 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota 11G210. Key components include: MOUNTING, ACTUATOR ASSY, BRAKE, COLLAR, BRAKE ACTUATOR CASE, NO.1, CUSHION, BRAKE ACTUATOR BOLT, CUSHION, BRAKE ACTUATOR BRACKET.
