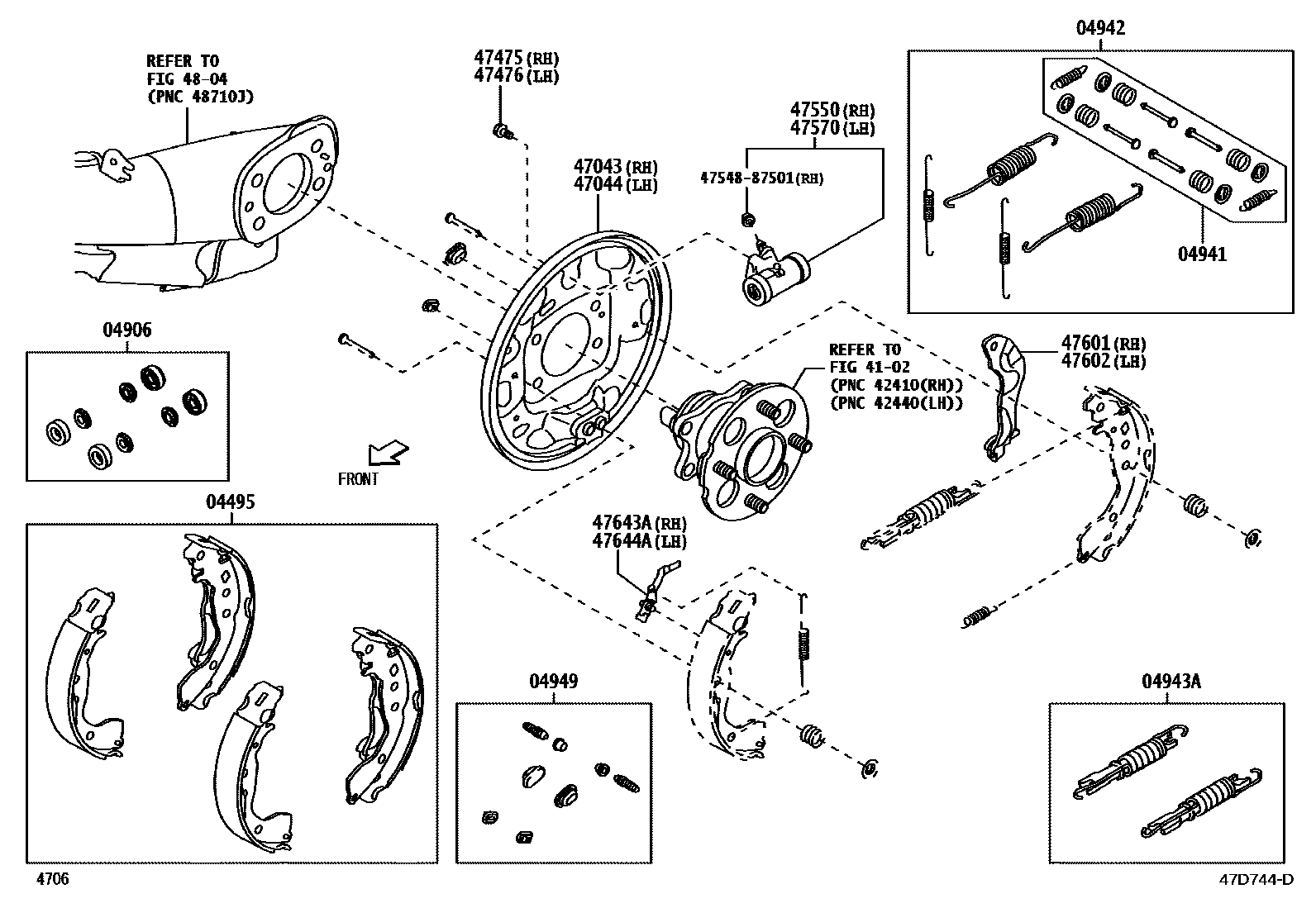

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-B1320iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-BZ130iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-B1020iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

04942SPRING KIT, REAR BRAKE

main04942-B1030iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

04943ASTRUT KIT, REAR BRAKE

main04943-B1020iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

04949PLUG KIT, REAR BRAKE

main04949-B1020iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ180iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ190iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main90041-19848iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main90041-19848iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-BZ170iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-BZ030iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-B5010iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-B5010iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ120iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ110iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208

MEXICO; MEXICO&W/O LATIN NCAP PACKAGE

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

4754887501CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main47548-87501

19 parts on this diagram · 1 diagram in section
