Toyota 11G210 — STEERING WHEEL

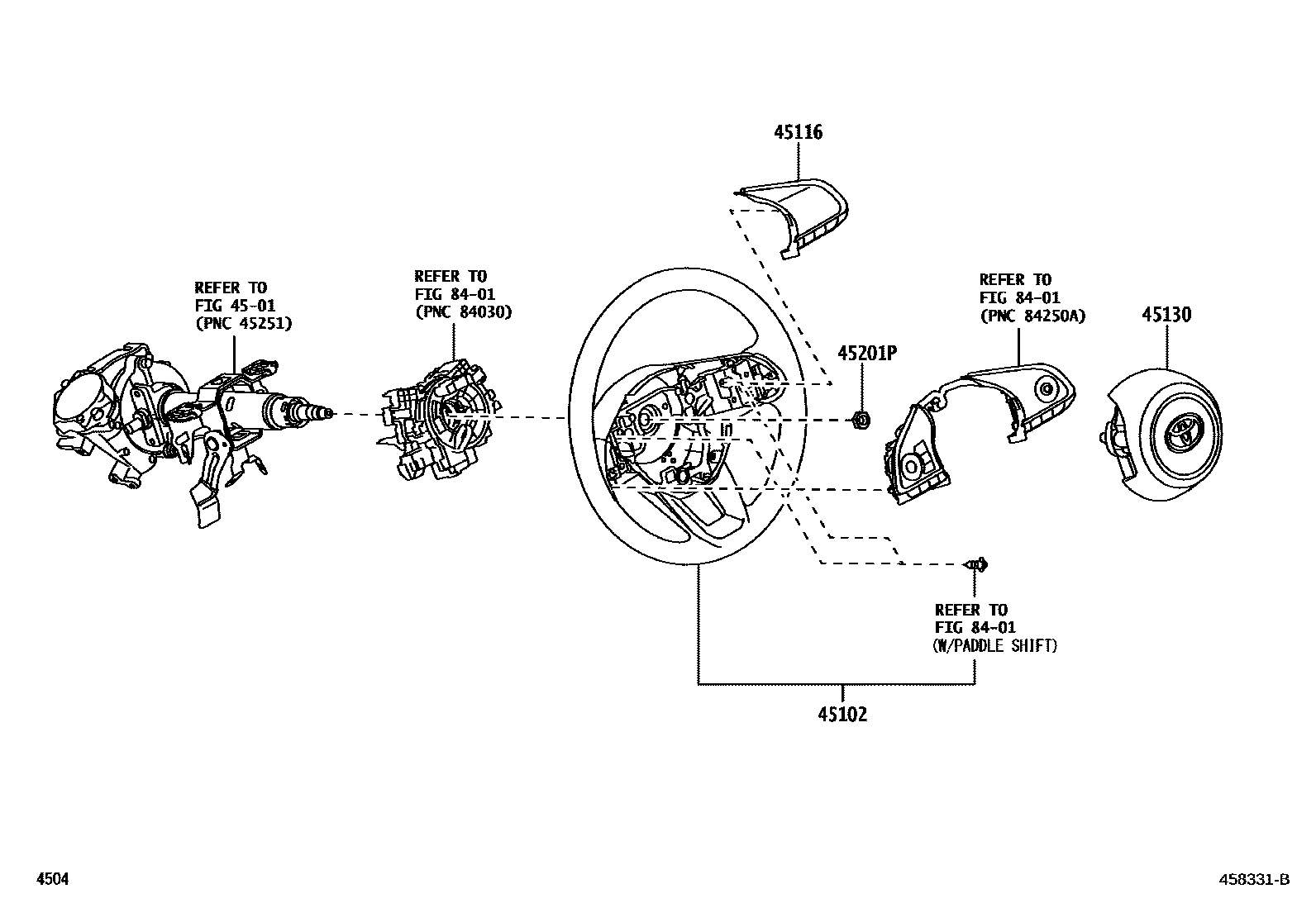

Parts diagram

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

45116ORNAMENT, STEERING WHEEL, NO.1

45130BUTTON ASSY, HORN

45201PNUT, STEERING WHEEL SET

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota 11G210

This section contains 6 genuine Toyota parts for the STEERING WHEEL system of the Toyota 11G210. Key components include: STEERING COLUMN & SHAFT, WHEEL SUB-ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.1, BUTTON ASSY, HORN, NUT, STEERING WHEEL SET.
