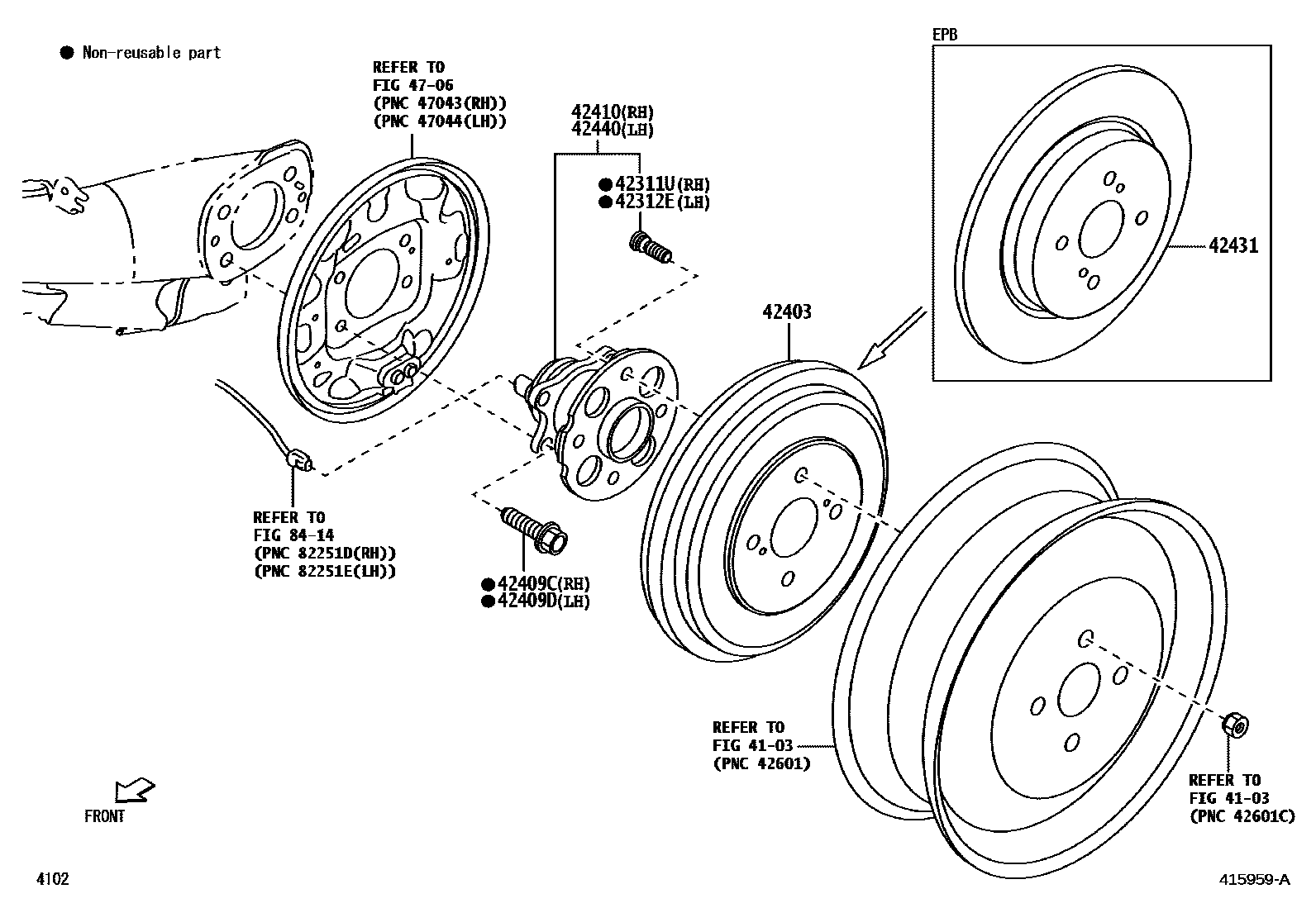

REAR AXLE SHAFT & HUB
4103DISC WHEEL & WHEEL CAP
42311UBOLT, HUB(FOR REAR AXLE RH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42403DRUM SUB-ASSY, REAR BRAKE
main42431-BZ300×2iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208
MEXICO; MEXICO&W/O LATIN NCAP PACKAGE
42409CBOLT (FOR REAR AXLE BEARING RH)
42409DBOLT (FOR REAR AXLE BEARING LH)
42410HUB & BEARING ASSY, REAR AXLE, RH
main42410-BZ120iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208
MEXICO&W/O LATIN NCAP PACKAGE,W/SENSOR; MEXICO,W/SENSOR; W/SENSOR
main42410-BZ180iNGC100; NGC101..M..GCC; NGC102..LHD..CVT..M..GEN;NGC101,102..CVT..H..(GCC,GEN,MA); NGC102..RHD..M..GEN202208
GRADE PACKAGE-HI(TH),W/SENSOR; GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA),W/SENSOR; SINGAPORE,W/SENSOR; W/SENSOR
42431DISC, REAR
main42431-BZ260×2iNGC100; NGC101..M..GCC; NGC102..LHD..CVT..M..GEN;NGC101,102..CVT..H..(GCC,GEN,MA); NGC102..RHD..M..GEN202208
GRADE PACKAGE-HI(TH); GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA); SINGAPORE
42440HUB & BEARING ASSY, REAR AXLE, LH
main42410-BZ120iNGC102..5F;NGC102..PHL;NGC102..CVT..L;NGC100,101..L,M;NGC102..RHD..M..GEN;NGC102..M..(GCC,MA); NGC102..LHD..CVT..M..GEN; NGC102..LHD..H..GEN202208
MEXICO&W/O LATIN NCAP PACKAGE,W/SENSOR; MEXICO,W/SENSOR; W/SENSOR
main42410-BZ180iNGC100; NGC101..M..GCC; NGC102..LHD..CVT..M..GEN;NGC101,102..CVT..H..(GCC,GEN,MA); NGC102..RHD..M..GEN202208
GRADE PACKAGE-HI(TH),W/SENSOR; GRADE PACKAGE-MID+ALPHA(SAUDI ARABIA),W/SENSOR; SINGAPORE,W/SENSOR; W/SENSOR
4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
8414ABS & VSC
11 parts on this diagram · 1 diagram in section
