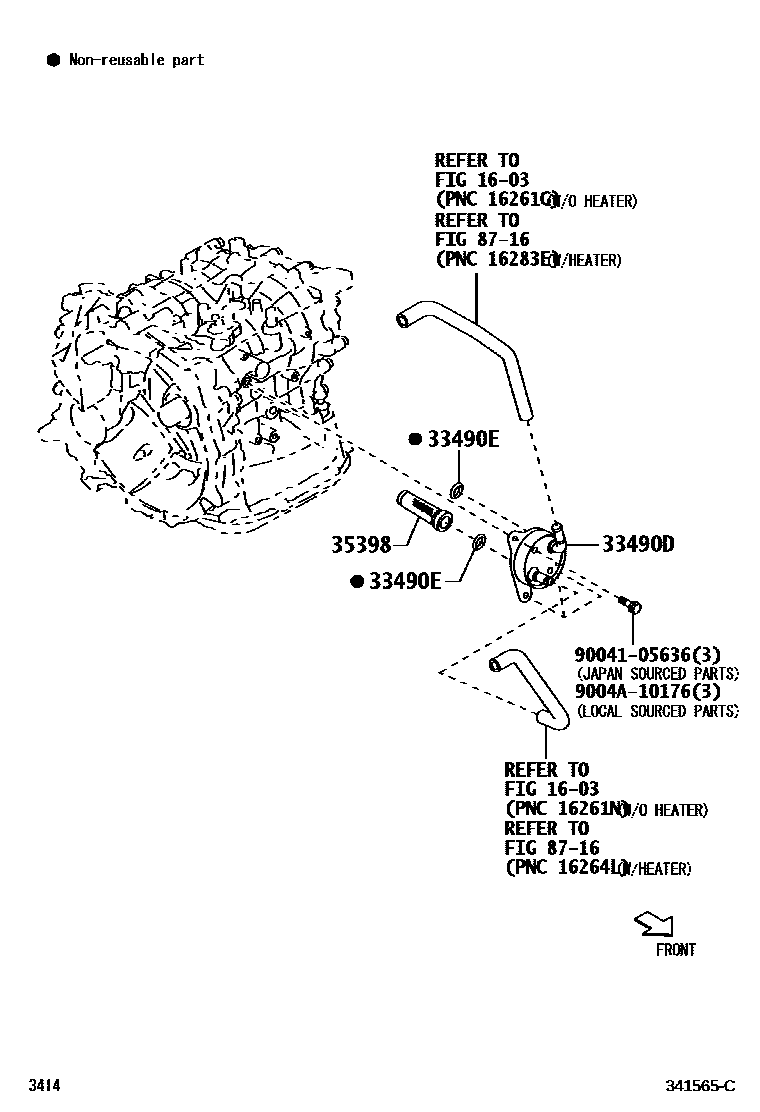

OIL COOLER & TUBE(CVT)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-B2030iNGC10#..CVT202208

33490ERING, O (FOR TRANSMISSION OIL COOLER)

main90043-01374×2iNGC10#..CVT202208

35398STRAINER, LUBRICATION OIL

main35398-B2010iNGC10#..CVT202208

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9004105636

main90041-05636

9004A10176

main9004A-10176

7 parts on this diagram · 1 diagram in section
