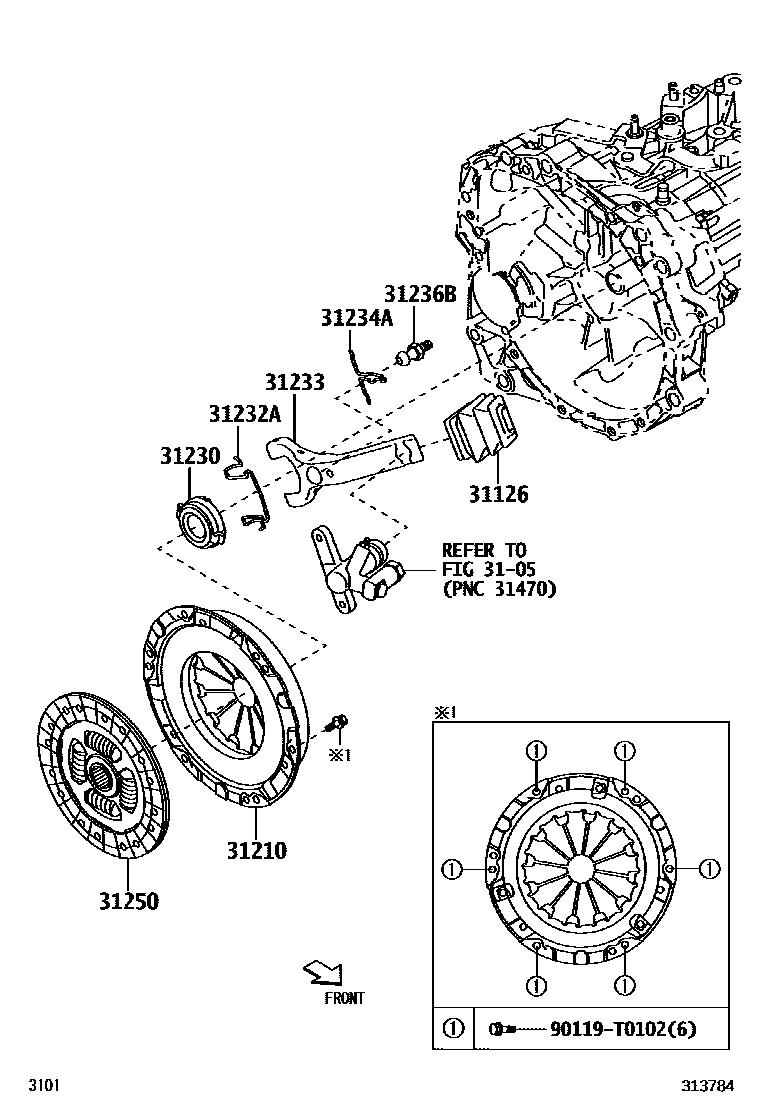

CLUTCH & RELEASE FORK

3105

31126BOOT, CLUTCH RELEASE FORK

main31126-BZ030iNGC101,102..5F202208

31210COVER ASSY, CLUTCH

main31210-BZ270iNGC102..5F202208

main31210-BZ320iNGC101..5F202208

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ070iNGC101,102..5F202208

31232ACLIP, RELEASE BEARING HUB

main31232-BZ060iNGC101,102..5F202208

31233FORK, CLUTCH RELEASE

main31233-BZ080iNGC101,102..5F202208

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ040iNGC101,102..5F202208

31236BSUPPORT, RELEASE FORK

main31236-BZ010iNGC101,102..5F202208

31250DISC ASSY, CLUTCH

main31250-BZ320iNGC102..5F202208

main31250-BZ330iNGC101..5F202208

90119T0102

main90119-T0102

10 parts on this diagram · 1 diagram in section
