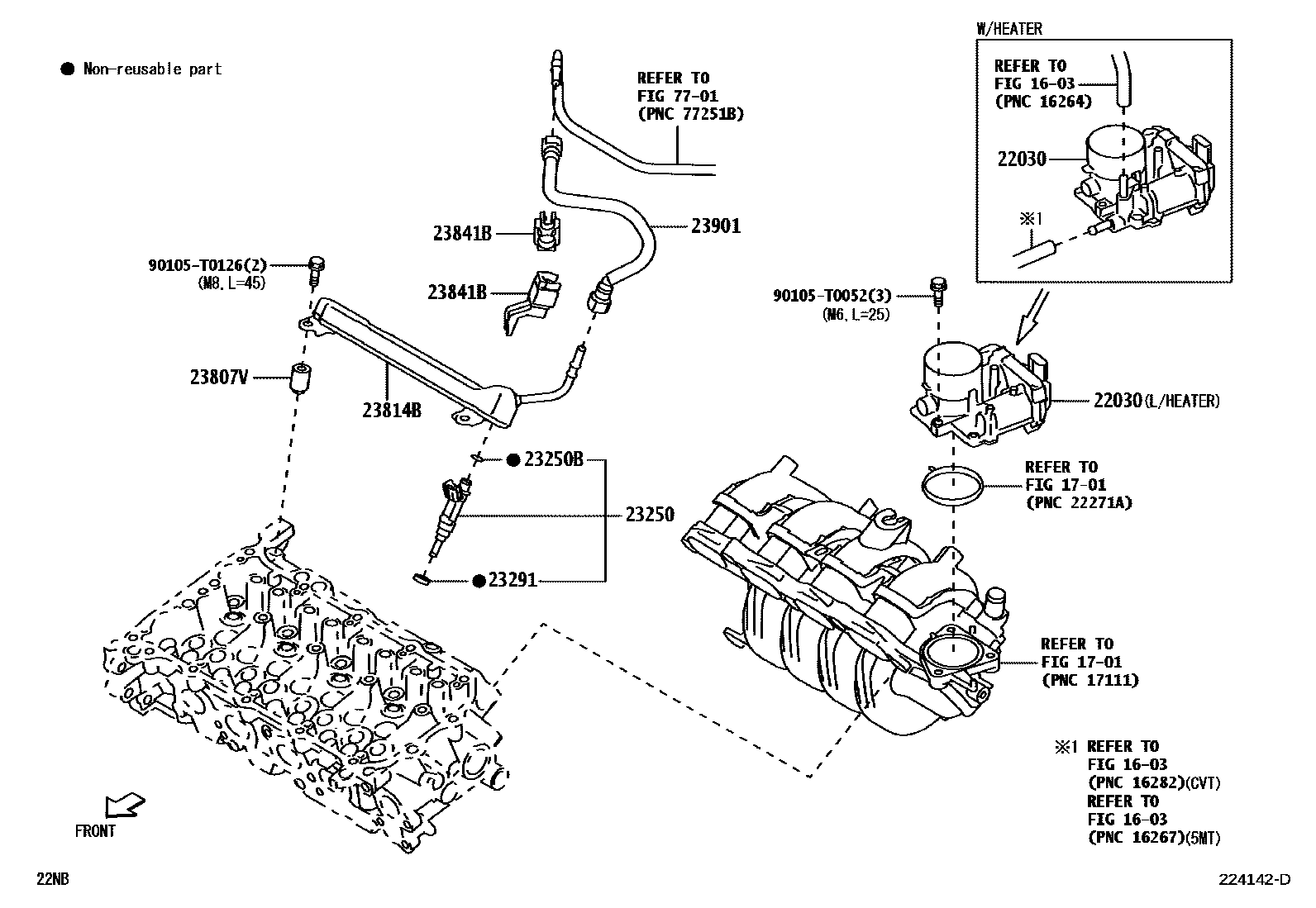

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-BZ150i2NRVE..NGC102..RHD;1NRVE,2NRVE..NGC101,102..PHL202208

main22030-BZ160i1NRVE..NGC101..GCC,GEN;2NRVE..NGC102..LHD..(GCC,GEN)202208

NEPAL

main22030-BZ160i1NRVE..NGC101..GCC,GEN;2NRVE..NGC102..LHD..(GCC,GEN)202208

BANGLADESH

main22030-BZ170i3NRVE..NGC100202208

23250INJECTOR ASSY, FUEL

main23209-09390i1NRVE..NGC101..GCC202305

TYPE C

main23209-49285i3NRVE..NGC100202208

main23209-B9080i1NRVE..NGC101..GCC202208-202305

main23209-B9080i1NRVE..NGC101..GCC202305

TYPE A

main23209-B9090i2NRVE..NGC102..MA202303

main23209-B9130i1NRVE..NGC101..GCC202305

TYPE B

main23209-B9140i1NRVE..NGC101..GCC202305

TYPE D

23250BRING, O(FOR FUEL INJECTOR)

main9004A-30072i1NRVE..NGC101..GCC202208-202305

main9004A-30072i1NRVE..NGC101..GCC202305

HITACHI

main90301-07042i3NRVE..NGC100202208

main90301-07042i1NRVE..NGC101..GCC202305

BOSCH

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRVE..NGC102..MA202303

main23291-0Y050i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i1NRVE,2NRVE,3NRVE..NGC10#202208

23814BPIPE, FUEL DELIVERY

main23814-0Y010i1NRVE,2NRVE,3NRVE..NGC10#202208

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y040i1NRVE,2NRVE,3NRVE..NGC10#202208

23901TUBE SUB-ASSY, FUEL

main23901-BZ170i2NRVE..NGC102..MA202303

main23901-BZ200i1NRVE,2NRVE..NGC101,102..THP202208

main23901-BZ240i3NRVE..NGC100202208

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105T0052

main90105-T0052

90105T0126

main90105-T0126

13 parts on this diagram · 3 diagrams in section
