EXHAUST PIPE

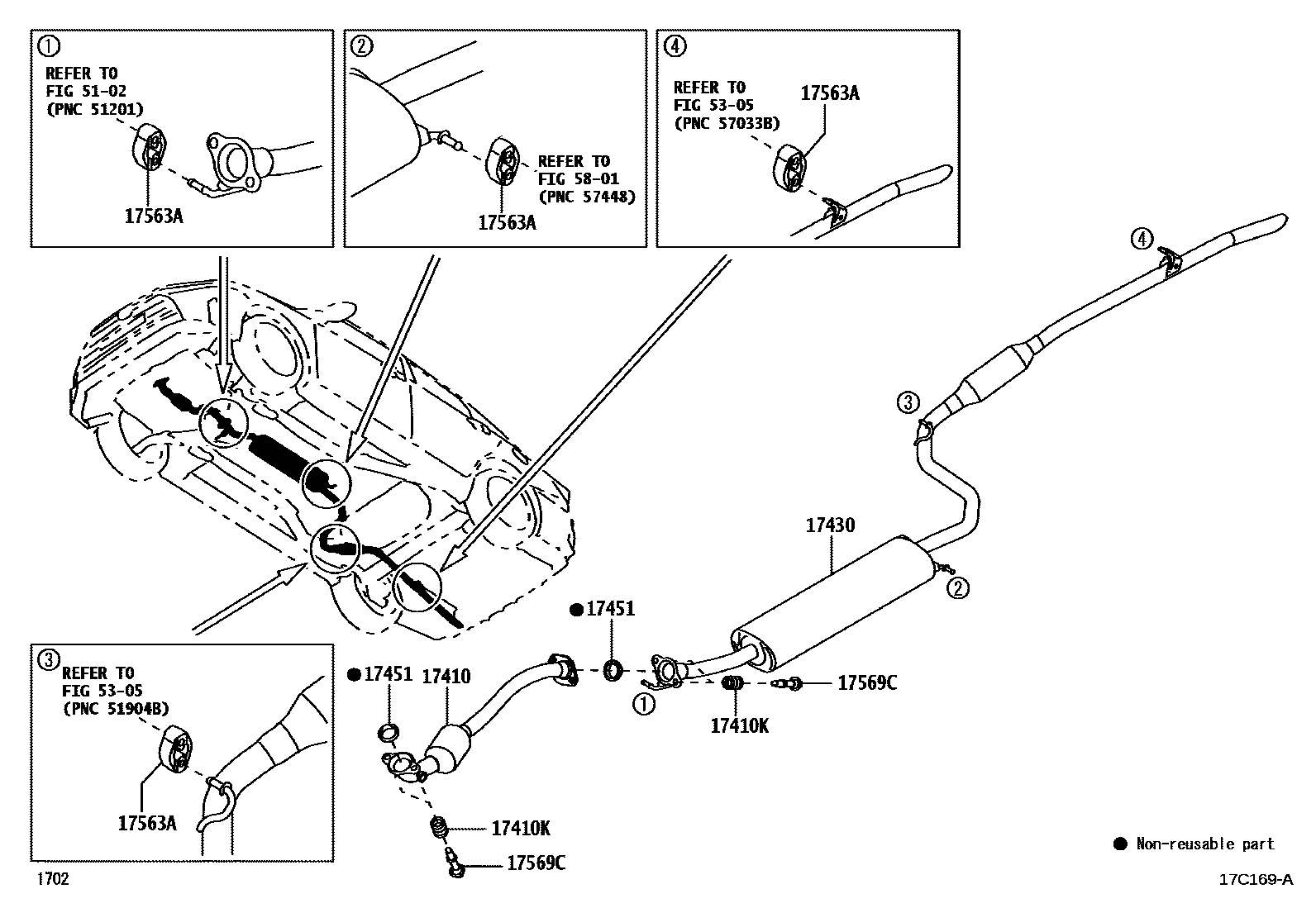

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZB90i3NRVE..NGC100202208

ID NO. = BZ430

main17410-BZC10i1NRVE..NGC101..RHD..H;2NRVE..NGC102..CVT..L; 1NRVE..NGC101..RHD..M; 2NRVE..NGC102..5F..L;2NRVE..NGC102..LHD..(H,M)..GEN; 2NRVE..NGC102..5F..L;2NRVE..NGC102..LHD..M..GEN; 2NRVE..NGC102..LHD..(H,M)..GEN; 2NRVE..NGC102..RHD..CVT..GEN202208

CHILE; COSTA RICA; FIJI; MEXICO; SINGAPORE

main17410-BZC20i2NRVE..NGC102..5F..L;1NRVE..NGC101..LHD..H;2NRVE..NGC102..THP..(H,M);1NRVE..NGC101..CVT..(L,M)202208

main17410-BZC30i1NRVE..NGC101..5F202208

main17410-BZF40i2NRVE..NGC102..MA202303

17410KSPRING, EXHAUST PIPE

main90501-T0020×4i1NRVE,2NRVE,3NRVE..NGC10#202208

17430PIPE ASSY, EXHAUST, TAIL

main17430-BZ570i2NRVE..NGC102..THP;1NRVE,3NRVE..NGC100,101..CVT202208

main17430-BZ580i1NRVE..NGC101..5F202208

main17430-BZ590i2NRVE..NGC102..MA202303

17451GASKET, EXHAUST PIPE

main17451-BZ110×2i1NRVE,2NRVE,3NRVE..NGC10#202208

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-BZ080×4i2NRVE..NGC102..MA202303

main17567-BZ090×4i1NRVE,2NR#,3NRVE..NGC10#,NYC100..THP202208

17569CBOLT, EXHAUST PIPE SUPPORT

main90109-T0016×4i1NRVE,2NRVE,3NRVE..NGC10#202208

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9 parts on this diagram · 1 diagram in section
