ENGINE OIL PUMP

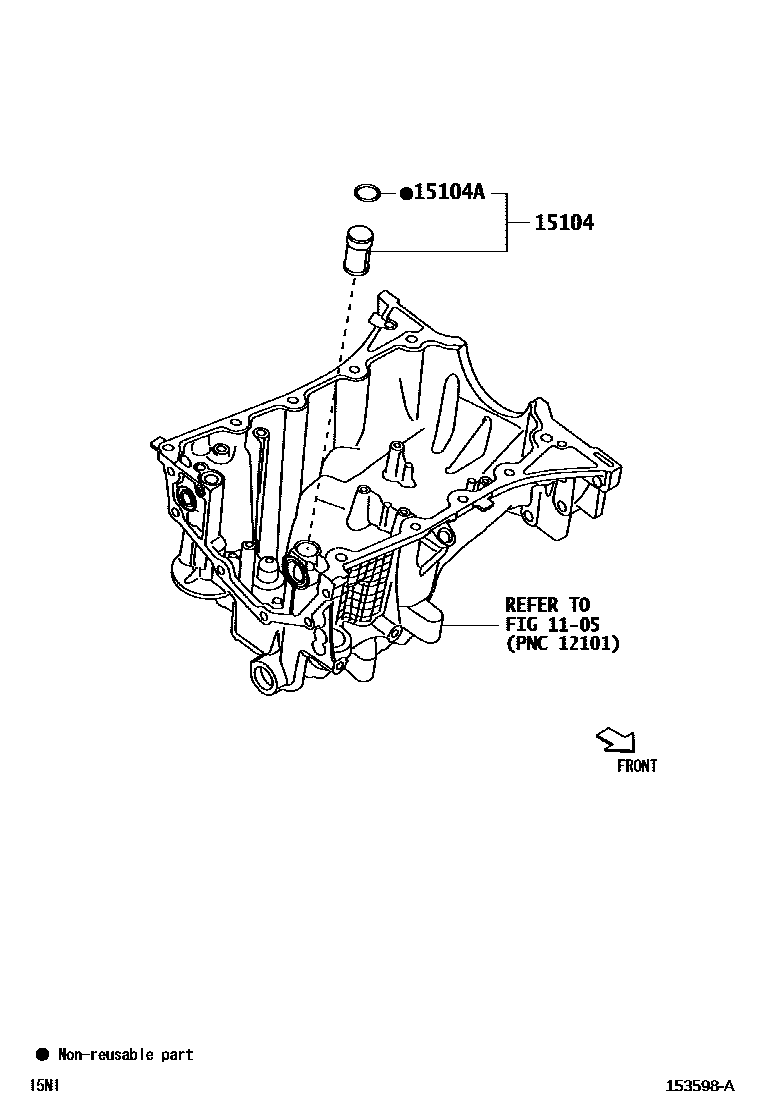

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i202208

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i202208

3 parts on this diagram · 1 diagram in section
