Toyota 11G210 — MOUNTING

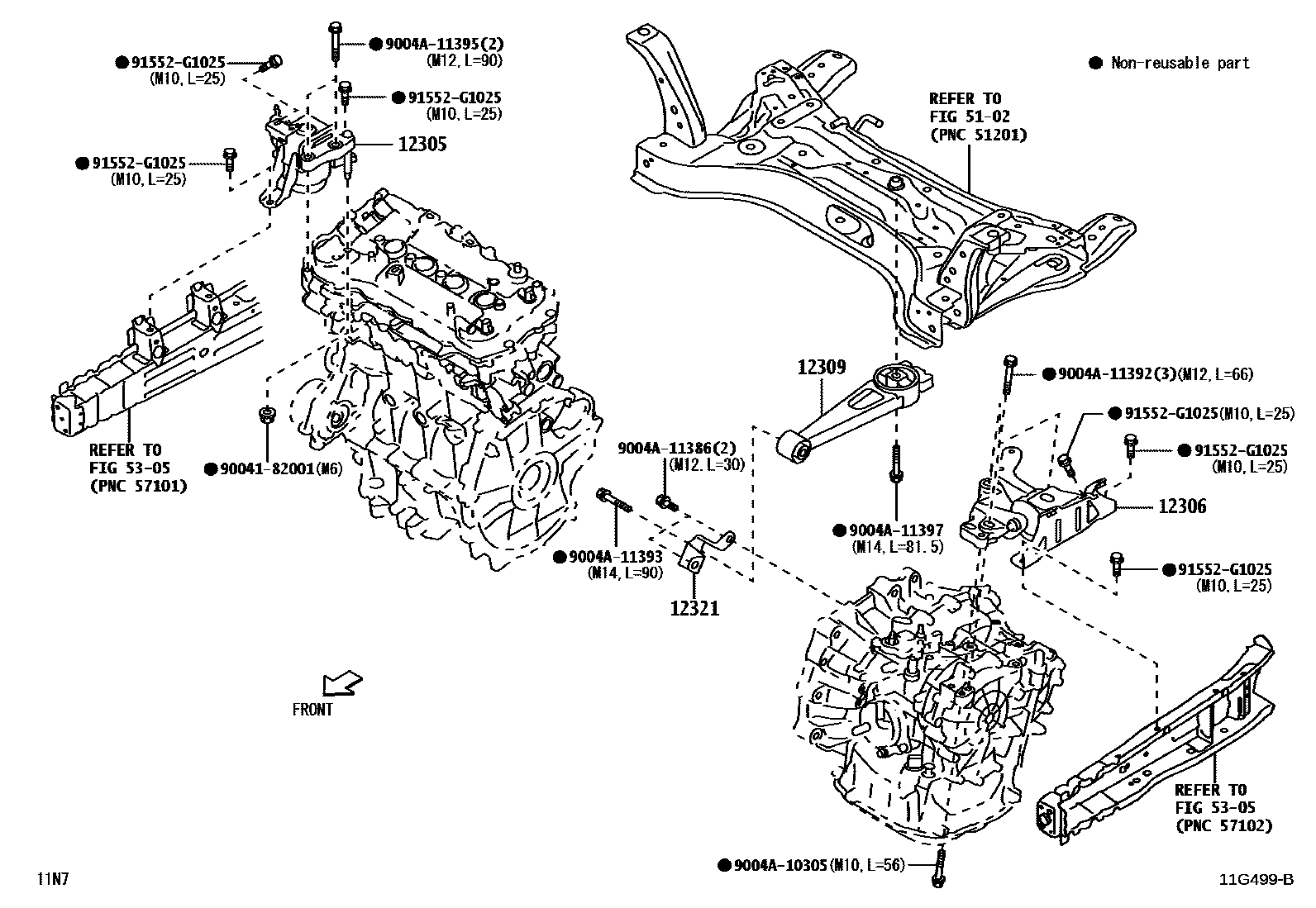

Parts diagram

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004182001

9004A10305

9004A11386

9004A11392

9004A11393

9004A11395

9004A11397

91552G1025

14 parts on this diagram · 4 diagrams in section

MOUNTING for Toyota 11G210

This section contains 20 genuine Toyota parts for the MOUNTING system of the Toyota 11G210. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, REAR, NO.1, TRANSAXLE ASSY(HEV OR BEV OR FCEV).
