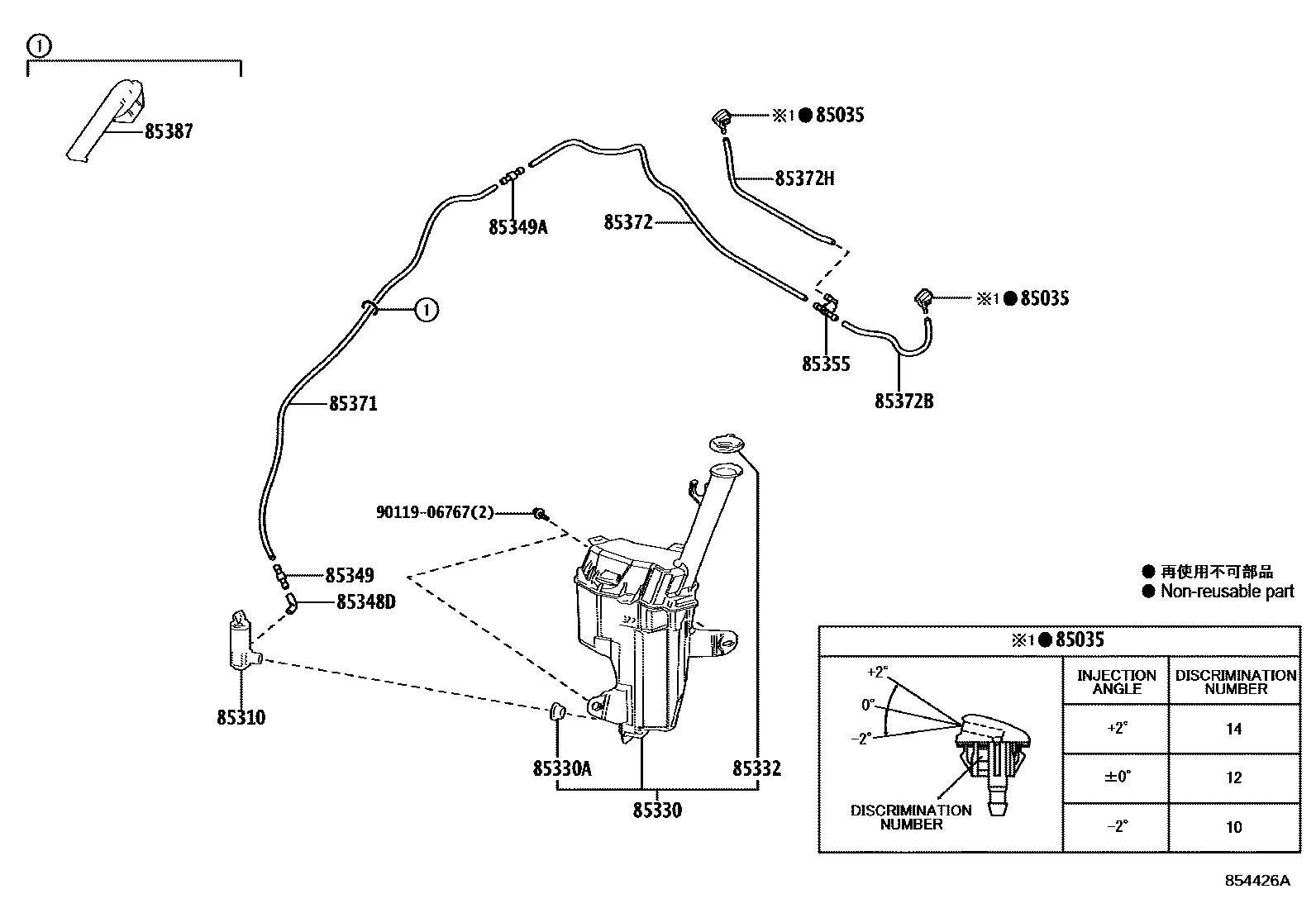

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2iGXPA16202404

ANGLE 0

main85381-52440×2iGXPA16202008-202404

ANGLE -2

main85381-52450×2iGXPA16202008-202404

ANGLE +2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070iGXPA16..EUR202008-202404

main85330-47080iGXPA16..ARL202008-202012

main85330-47081iGXPA16..ARL202410

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0030iGXPA16..EUR202307-202404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGXPA16202404

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iGXPA16..EUR202008-202303

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iGXPA16..EUR202008-202303

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGXPA16..EUR202008-202303

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iGXPA16..EUR202008-202303

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGXPA16202008-202404

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGXPA16..EUR202307-202404

L=1450(*H,L=800)

main90099-62228iGXPA16..ARL202410

L=800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGXPA16..LHD; GXPA16..RHD202008-202404

L=1450(*H,L=670); L=1450(*H,L=910)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iGXPA16..LHD; GXPA16..RHD202008-202404

L=1450(*H,L=200); L=1450(*H,L=420)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iGXPA16..RHD202008-202404

L=1450(*H,L=150)

main90099-33299iGXPA16..LHD202008-202404

L=1000(*H,L=370)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-10500iGXPA16202404

main82711-52090iGXPA16202008-202303

9011906767

main90119-06767

15 parts on this diagram · 2 diagrams in section
