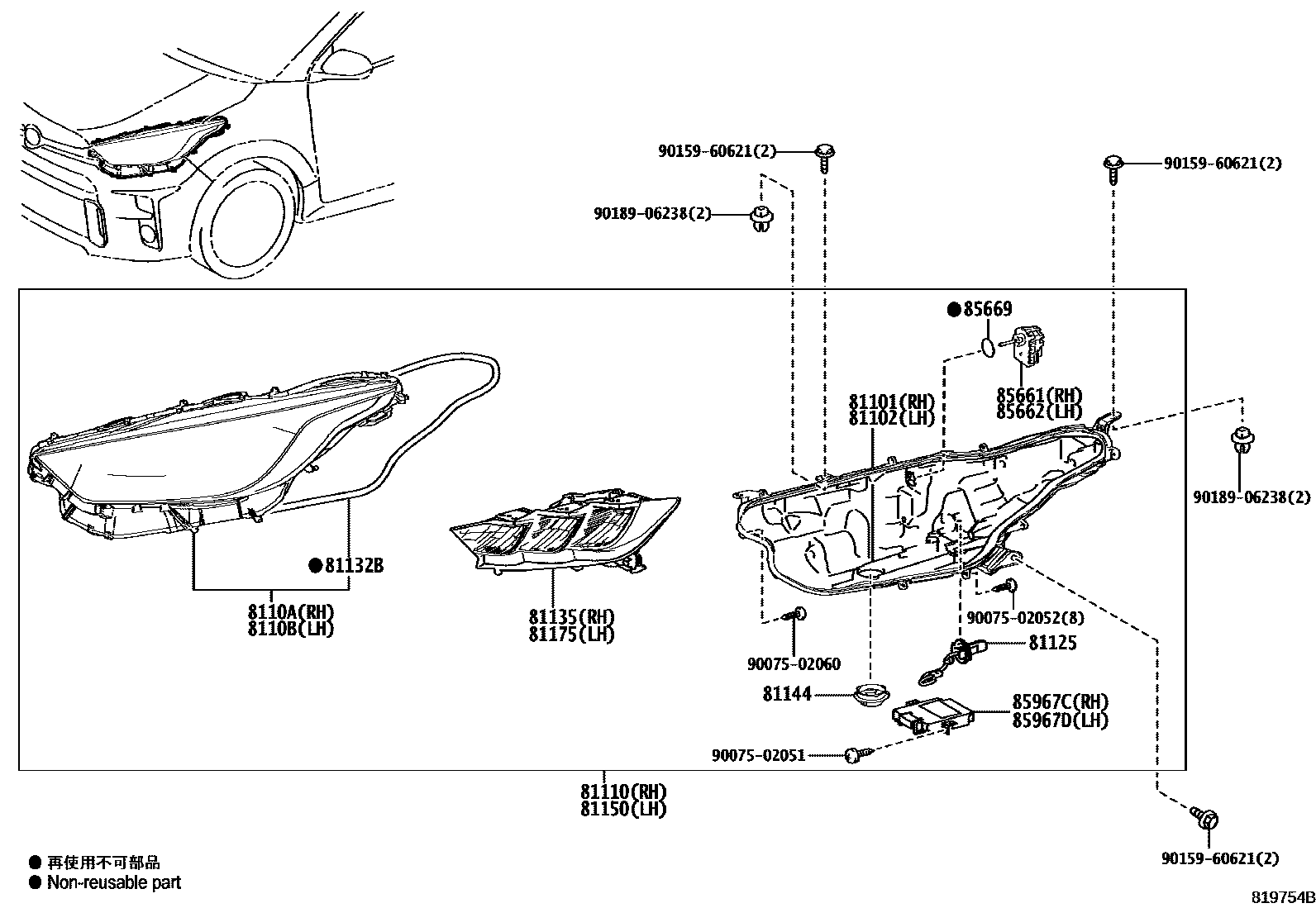

HEADLAMP

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-52N60iGXPA16..LHD202008-202403

main8111B-52N61iGXPA16..LHD202403-202404

main8111B-K0040iGXPA16..RHD202404

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-52N60iGXPA16..LHD202008-202403

main8115B-52N61iGXPA16..LHD..EUR202404

main8115B-K0040iGXPA16..RHD202008-202404

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-K0040iGXPA16202008-202404

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-K0040iGXPA16..CHI202412

81110HEADLAMP ASSY, RH

main81110-52N60iGXPA16..LHD202008-202312

main81110-52N61iGXPA16..LHD202401-202402

main81110-52N62iGXPA16..CHI202412

main81110-K0040iGXPA16..RHD202008-202312

main81110-K0041iGXPA16..RHD202401-202404

81125CORD, HEADLAMP

main81125-K0040×2iGXPA16202008-202404

81132BGASKET, HEADLAMP LENS

main81132-50590×2iGXPA16202008-202404

81135UNIT ASSY, HEADLAMP, RH

main81130-52N60iGXPA16..LHD202008-202404

main81130-K0030iGXPA16..RHD202404

81144COVER, HEADLAMP, NO.1

main90075-66016×2iGXPA16..ARL,EUR202404

81150HEADLAMP ASSY, LH

main81150-52N60iGXPA16..LHD202008-202312

main81150-52N61iGXPA16..LHD202401-202402

main81150-52N62iGXPA16..LHD..EUR202404

main81150-K0040iGXPA16..RHD202008-202312

main81150-K0041iGXPA16..RHD202401-202404

81175UNIT ASSY, HEADLAMP, LH

main81170-52N60iGXPA16..CHI202412

main81170-K0030iGXPA16..RHD202404

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iGXPA16202008-202404

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iGXPA16202008-202404

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iGXPA16202008-202404

85967CCOMPUTER, LIGHT CONTROL LED, RH

main8596A-K0020iGXPA16202008-202401

main8596A-K0021iGXPA16202401-202404

85967DCOMPUTER, LIGHT CONTROL LED, LH

main8596A-K0010iGXPA16202008-202401

main8596A-K0011iGXPA16202401-202404

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9015960621

main90159-60621

9018906238

main90189-06238

21 parts on this diagram · 1 diagram in section
