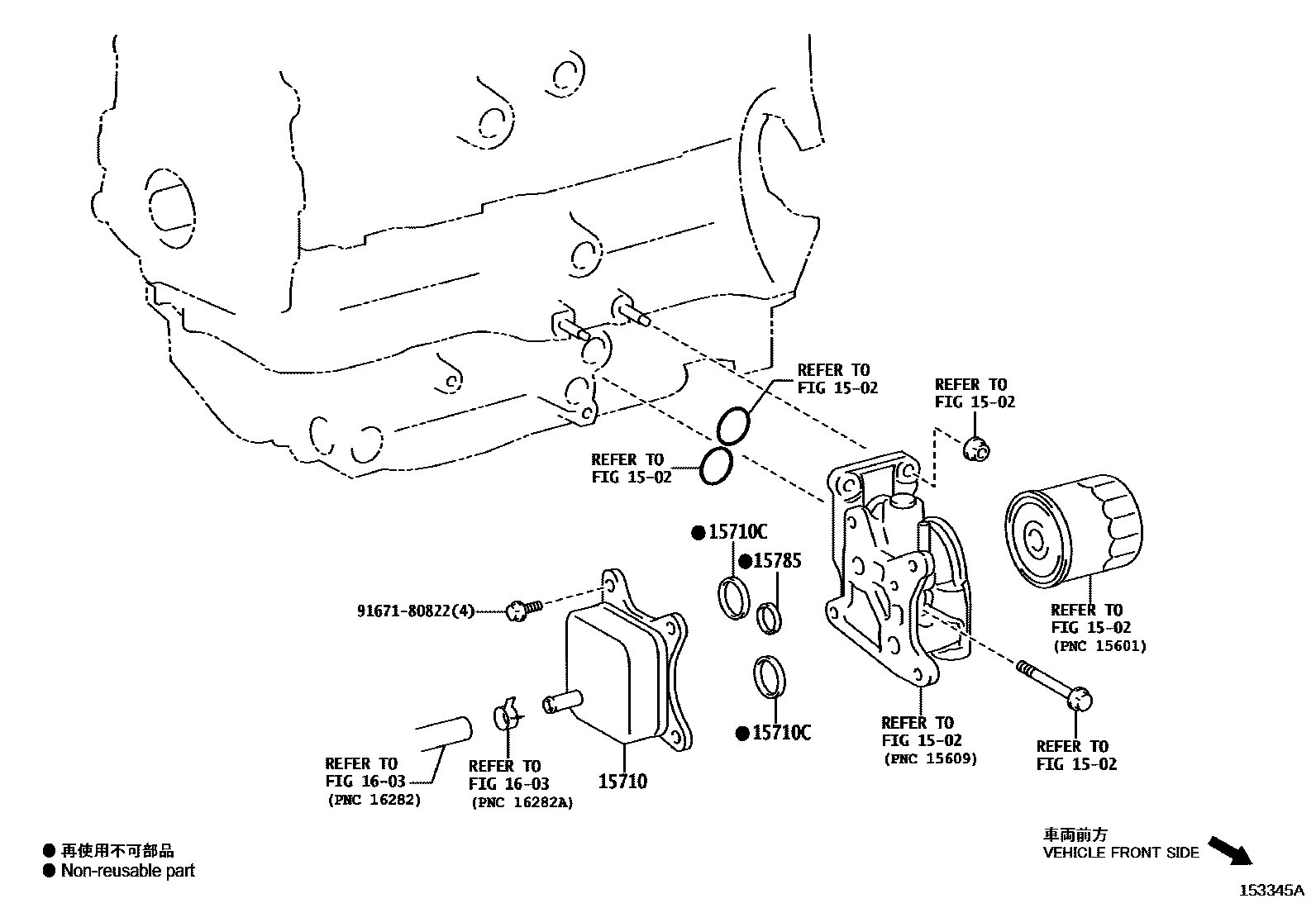

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15710-18010iG16EGTS..GXPA16202008-202404

main15710-18020iG16EGTS..GXPA16..ARL,EUR202404

15710CGASKET(FOR OIL COOLER)

main15785-25010×2iG16EGTS..GXPA16202008-202404

15785GASKET, OIL COOLER

main15785-18010iG16EGTS..GXPA16202008-202404

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9167180822

main91671-80822

6 parts on this diagram · 1 diagram in section
