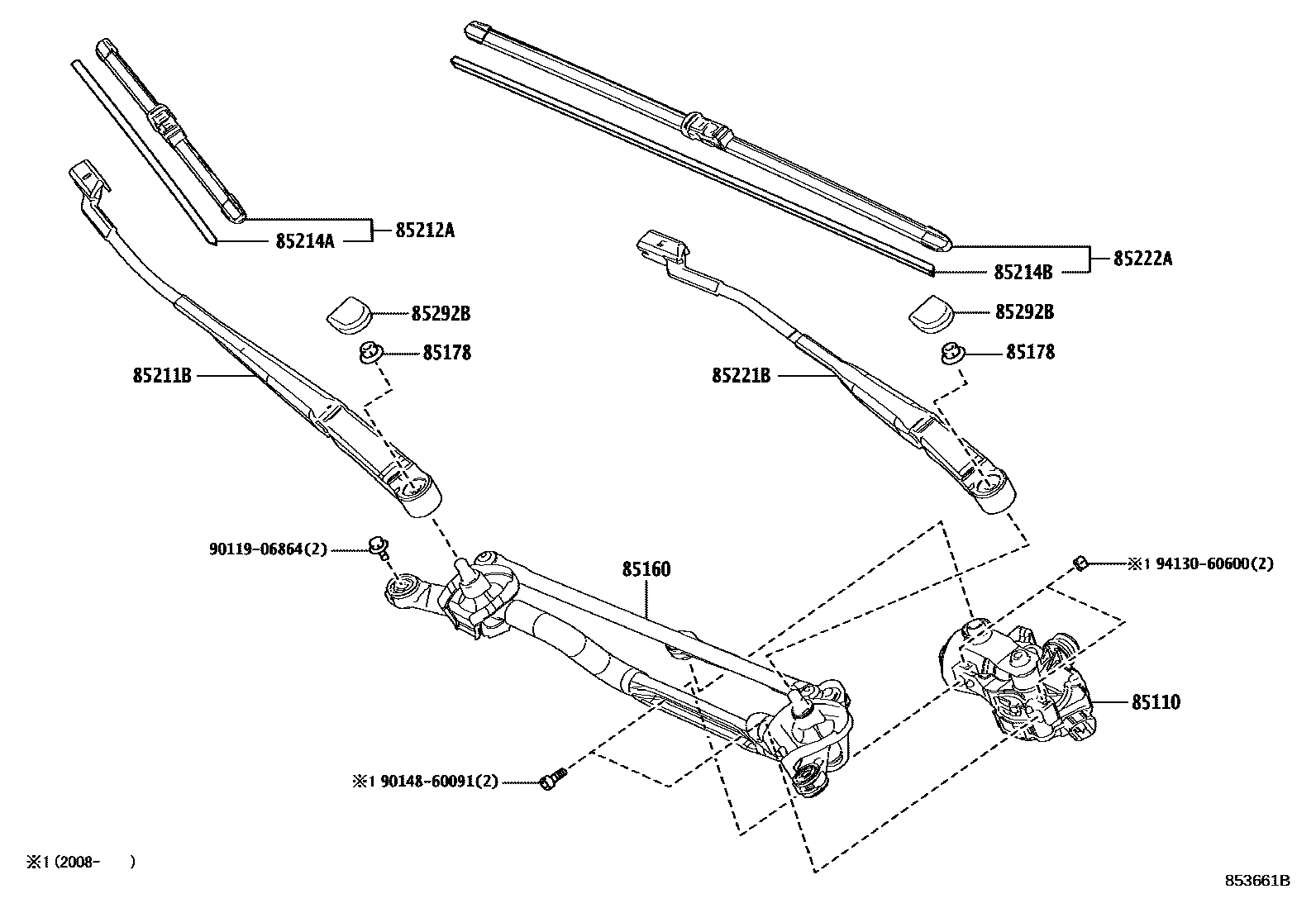

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52840iNSP170201911-202306

85160LINK ASSY, WINDSHIELD WIPER

main85150-52420iNSP170,ZSP170201611-201911

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iNSP170,ZSP170201611-201911

85211BARM, FRONT WIPER, RH

main85211-52550iNSP170,ZSP170201611-201911

main85211-52650iNSP170202012-202306

85212ABLADE, FR WIPER, RH

main85212-52280iNSP170,ZSP170201611-201911

main85212-52330iNSP170202012-202306

85214ARUBBER, WIPER, RH

main85214-68030iNSP170202012-202306

main85214-78020iNSP170,ZSP170201911-202012

85214BRUBBER, WIPER, LH

main85214-52110iNSP170202012-202306

main85214-62020iNSP170,ZSP170201911-202012

85221BARM, FRONT WIPER, LH

main85221-52470iNSP170,ZSP170201611-201911

main85221-52590iZSP170202012

85222ABLADE, FR WIPER, LH

main85222-42120iZSP170202012

main85222-52290iNSP170,ZSP170201611-201911

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D050×2iZSP170201911

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

13 parts on this diagram · 2 diagrams in section
