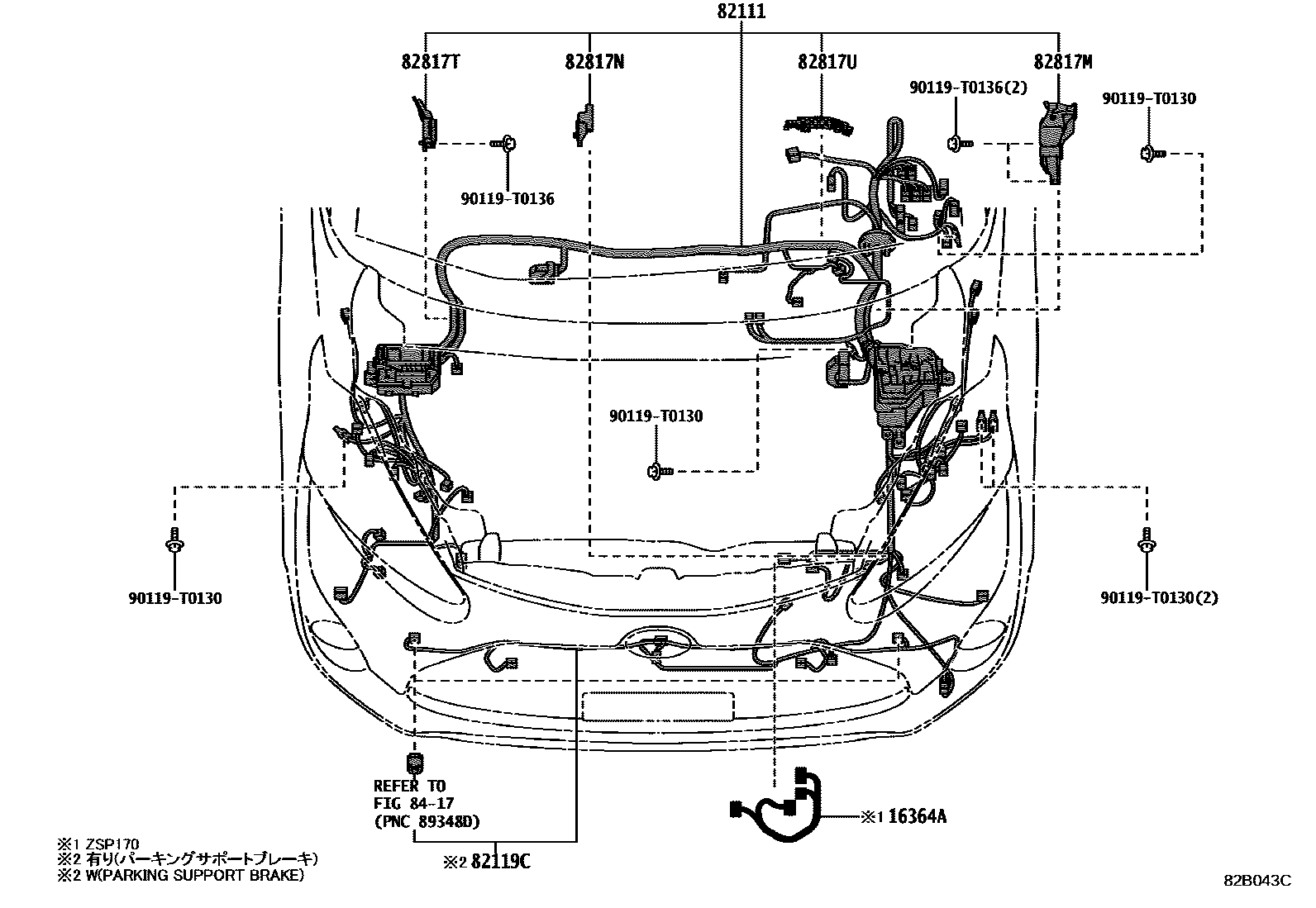

Toyota 11B310 — WIRING & CLAMP
16364AWIRE, COOLING FAN
82111WIRE, ENGINE ROOM MAIN
82119CWIRE, ENGINE ROOM, NO.5
82817PROTECTOR, WIRING HARNESS, NO.1
82817MPROTECTOR, WIRING HARNESS, NO.12
82817NPROTECTOR, WIRING HARNESS, NO.13
82817TPROTECTOR, WIRING HARNESS, NO.15
82817UPROTECTOR, WIRING HARNESS, NO.16
8417CLEARANCE & BACK SONAR
90119T0130
90119T0136
11 parts on this diagram · 10 diagrams in section
WIRING & CLAMP for Toyota 11B310
This section contains 123 genuine Toyota parts for the WIRING & CLAMP system of the Toyota 11B310. Key components include: WIRE, COOLING FAN, INTERIOR LAMP, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE ROOM, NO.5, WIRE, ENGINE.
