WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1CLAMP & BRACKET 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNENCTOR 2/2

16364AWIRE, COOLING FAN

main16364-37020i2ZRFAE..ZSP170201911

82111WIRE, ENGINE ROOM MAIN

main82111-F5F60iZSP170..D,N201911-202012

main82111-F5F70iZSP170..05S..Q201911-202012

main82111-F5F80iNSP170201911-202012

main82115-0U200iZSP170..N201611-201911

main82115-0U210iZSP170..Q,U201611-201911

main82115-0U220iNSP170201611-201911

main82115-0UQ40iZSP170..D,W;ZSP170..05S..(N,Q)202012

main82115-0UW70iNSP170202012-202306

main82115-0UQ50supersedes 82111-F5V70iZSP170..07S..Q202012

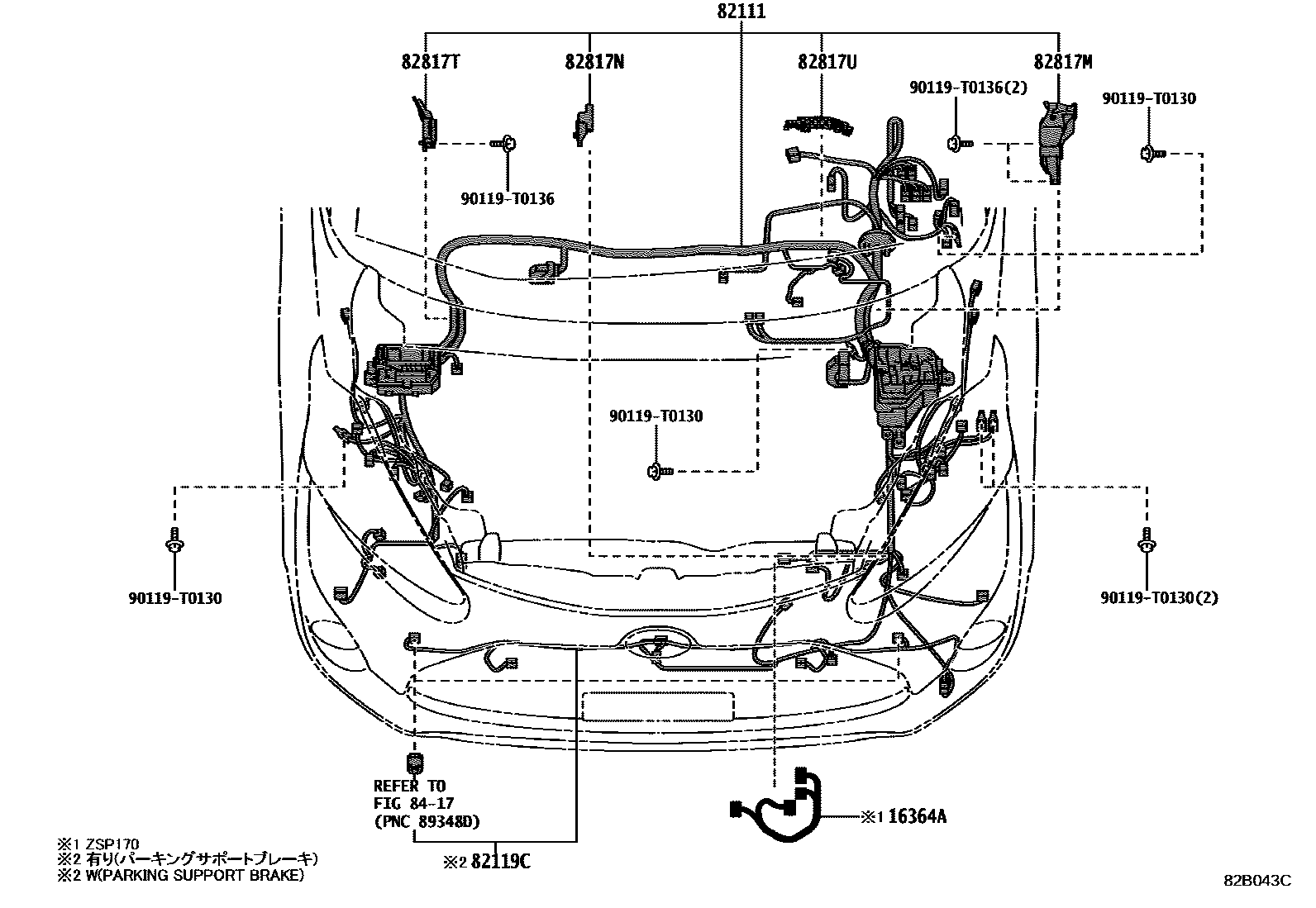

HEADLAMP-LED TYPE & WITH(*AHB)

82119CWIRE, ENGINE ROOM, NO.5

main82119-0D020supersedes 82119-0D030iZSP170..07S..Q201911

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52620iNSP170,ZSP170201611-201911

82817MPROTECTOR, WIRING HARNESS, NO.12

main82817-52A20iNSP170,ZSP170201611-201911

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-0DB10iZSP170201611-201911

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-52C00iNSP170,ZSP170201611-201911

82817UPROTECTOR, WIRING HARNESS, NO.16

main82817-52B70iNSP170,ZSP170201611-201911

8417

90119T0130

main90119-T0130

90119T0136

main90119-T0136

11 parts on this diagram · 10 diagrams in section
