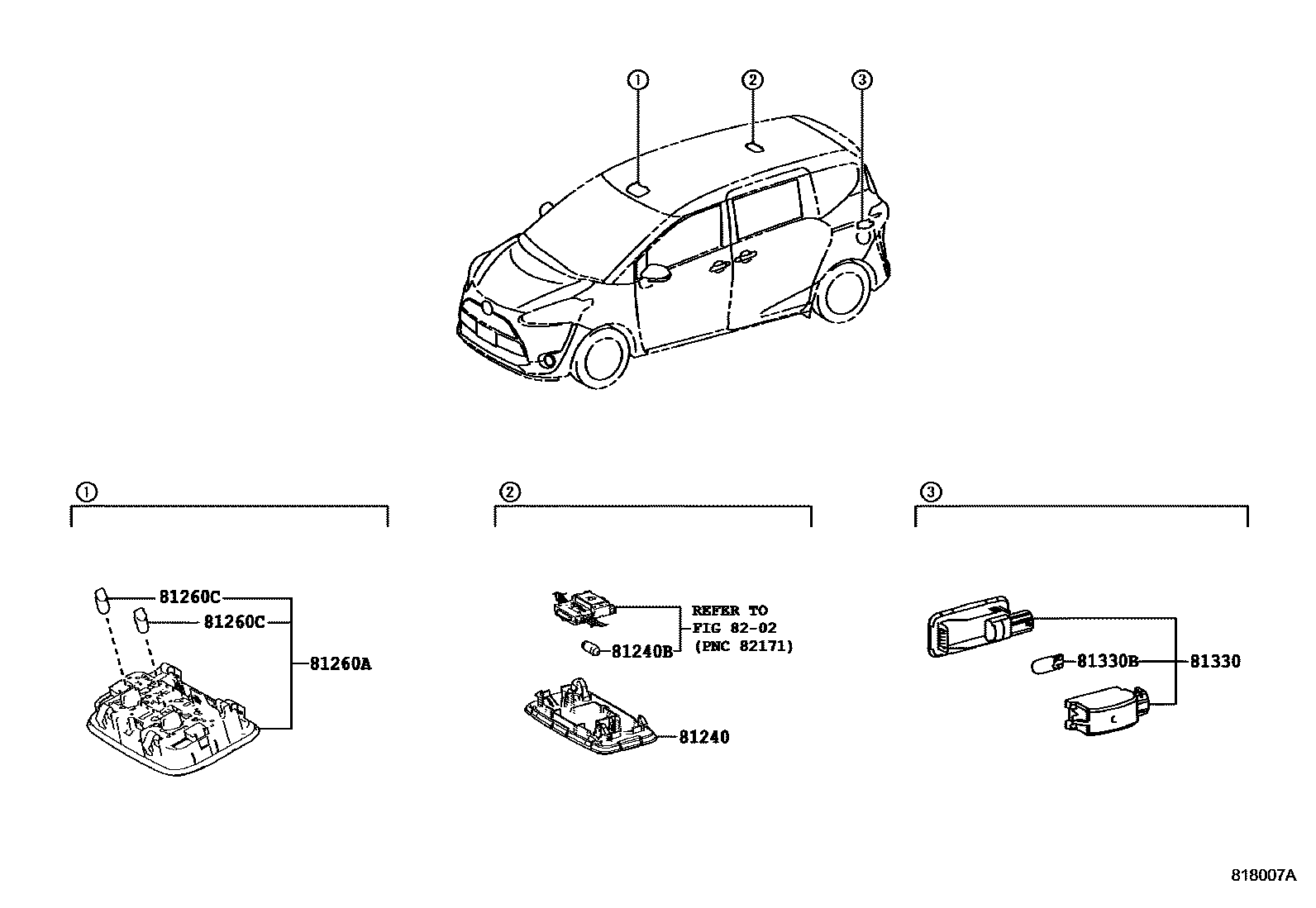

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iZSP170201611-201906

LT.GRAY,TRIM0#,2#

main81240-42020-B0iZSP170201906-201911

LT.GRAY,TRIM0#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNSP170,ZSP170201611-201911

12V 8W

81260ALAMP ASSY, MAP

main81260-68010-B2iZSP170201611-201711

LT.GRAY,TRIM0#,2#

main81260-68011-B2iZSP170201711-201911

LT.GRAY,TRIM0#,2#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNSP170,ZSP170201611-201911

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iNSP170,ZSP170201611-201911

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iNSP170,ZSP170201611-201911

12V 5W

8202

7 parts on this diagram · 1 diagram in section
