Toyota 11B310 — REAR FOG LAMP

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

81210CBULB, REAR FOG LAMP

81215HSOCKET, REAR FOG LAMP

81457CLENS & BODY, REAR FOG LAMP

81480BLAMP ASSY, REAR FOG

9007515509

90075-15509

90105T0141

90105-T0141

7 parts on this diagram · 1 diagram in section

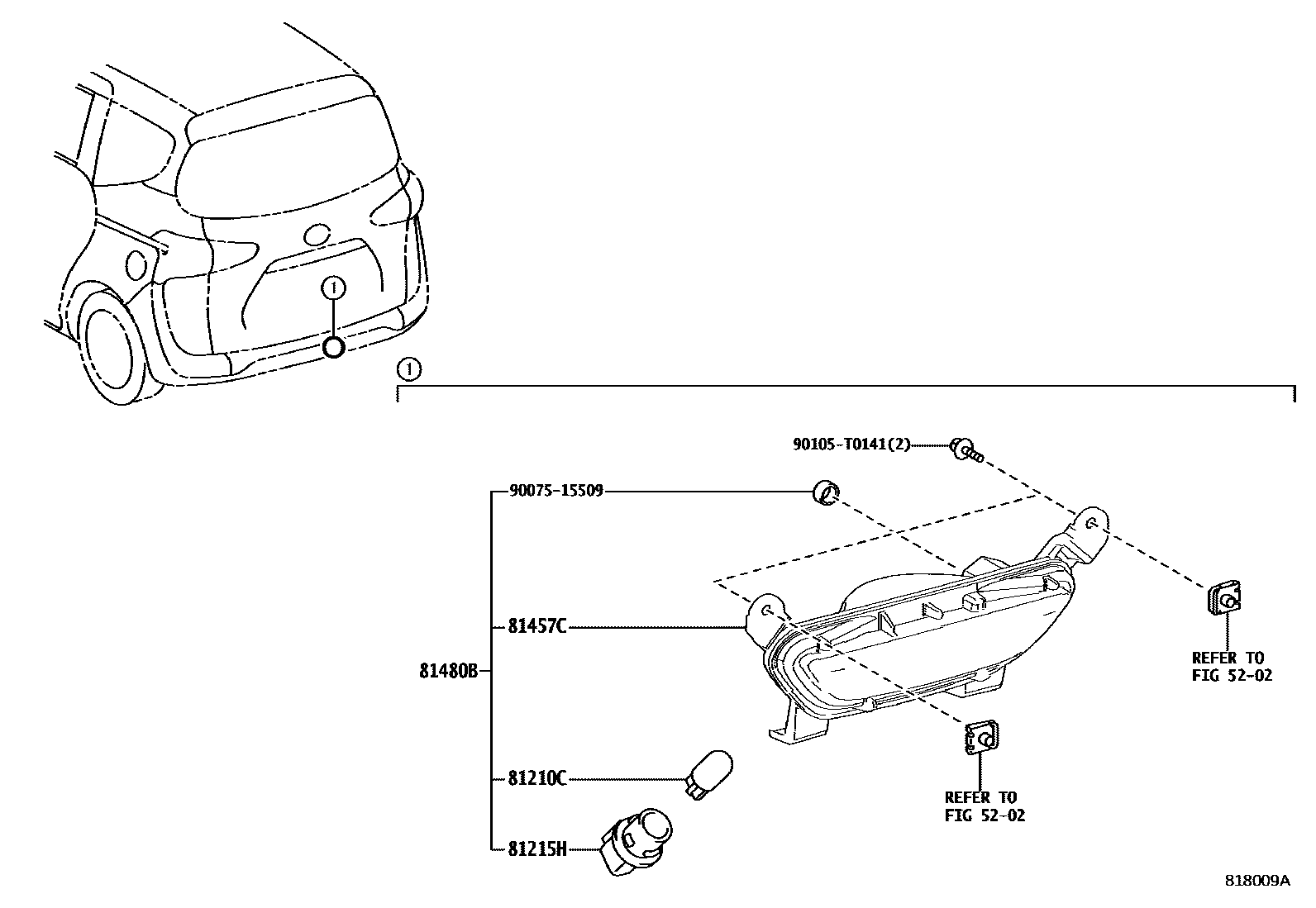

REAR FOG LAMP for Toyota 11B310

This section contains 7 genuine Toyota parts for the REAR FOG LAMP system of the Toyota 11B310. Key components include: REAR BUMPER & BUMPER STAY, BULB, REAR FOG LAMP, SOCKET, REAR FOG LAMP, LENS & BODY, REAR FOG LAMP, LAMP ASSY, REAR FOG.
