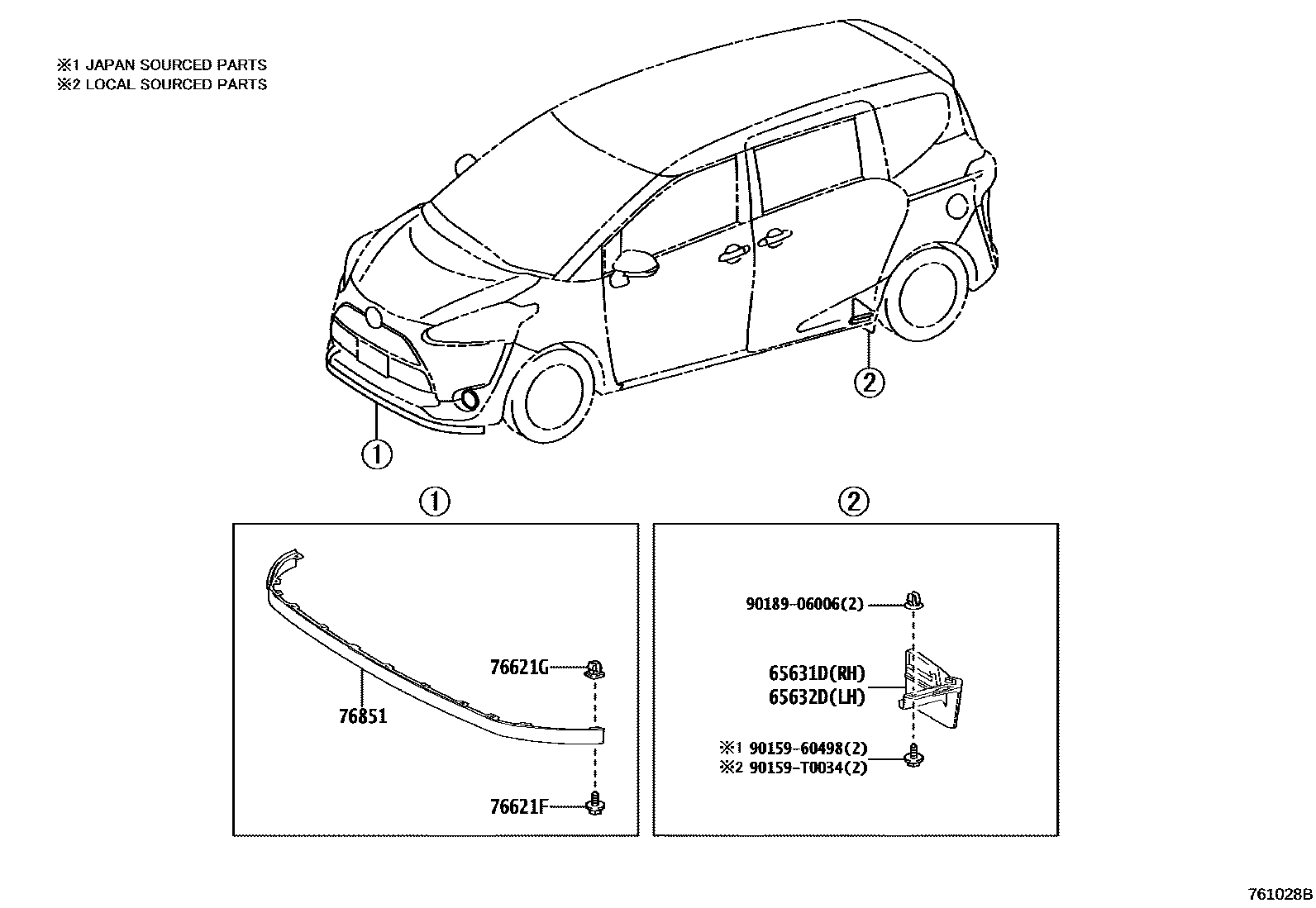

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0D120iNSP170201911-202306

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0D120iNSP170,ZSP170201611-201911

76621FSCREW, NO.1

main90159-60383×12iZSP170..07S..Q201911

(J)

main90159-T0008×12iNSP170,ZSP170201611-201911

(L)

76621GGROMMET, NO.1

main90189-06237×12iZSP170201911

76851COVER, FRONT SPOILER

main76851-0D100iZSP170201911

9015960498

main90159-60498

90159T0034

main90159-T0034

9018906006

main90189-06006

8 parts on this diagram · 2 diagrams in section
