Toyota 11B310 — REAR DOOR WINDOW REGULATOR & HINGE

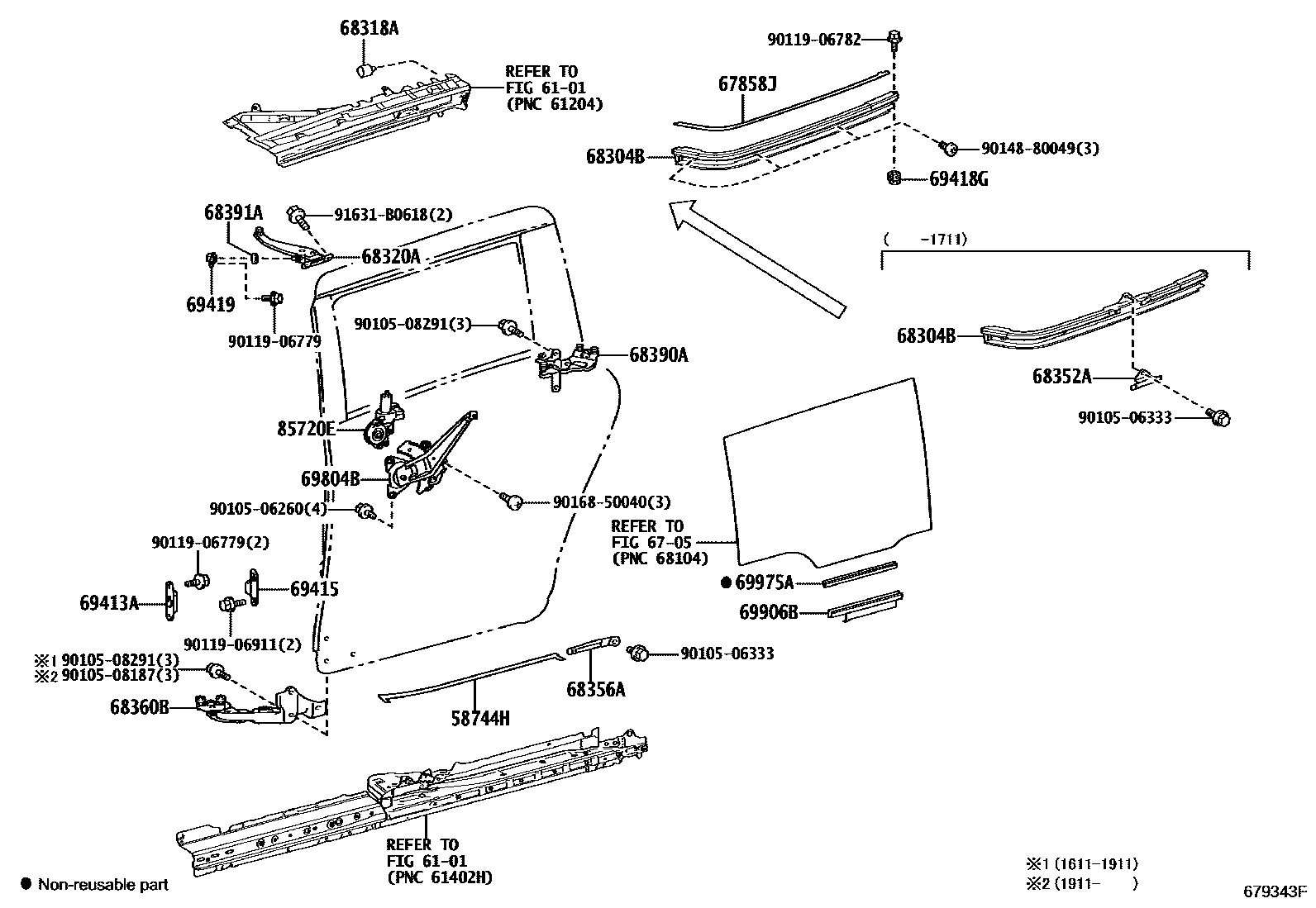

Parts diagram

58744HPROTECTOR, SLIDE DOOR PANEL, LH

6101SIDE MEMBER

→ Go to FIG 61-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

67858JPROTECTOR, SLIDE DOOR RAIL, LH

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

68318ASTOPPER, SLIDE DOOR UPPER RAIL, LH

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

68352APLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH

68356APLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

69415STOPPER, SLIDE DOOR DOWN FEMALE

69418STOP, SLIDE DOOR OPEN

69418GCUSHION, SLIDE DOOR OPEN STOPPER, LH

69419STOP, SLIDE DOOR OPEN, LH

69804BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

69975AFILLER, REAR DOOR GLASS CHANNEL

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

9010506260

9010506333

9010508187

9010508291

9011906779

9011906782

9011906911

9014880049

9016850040

91631B0618

32 parts on this diagram · 4 diagrams in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota 11B310

This section contains 57 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota 11B310. Key components include: PROTECTOR, SLIDE DOOR PANEL, RH, PROTECTOR, SLIDE DOOR PANEL, LH, SIDE MEMBER, REAR DOOR PANEL & GLASS, PROTECTOR, SLIDE DOOR RAIL, RH.
