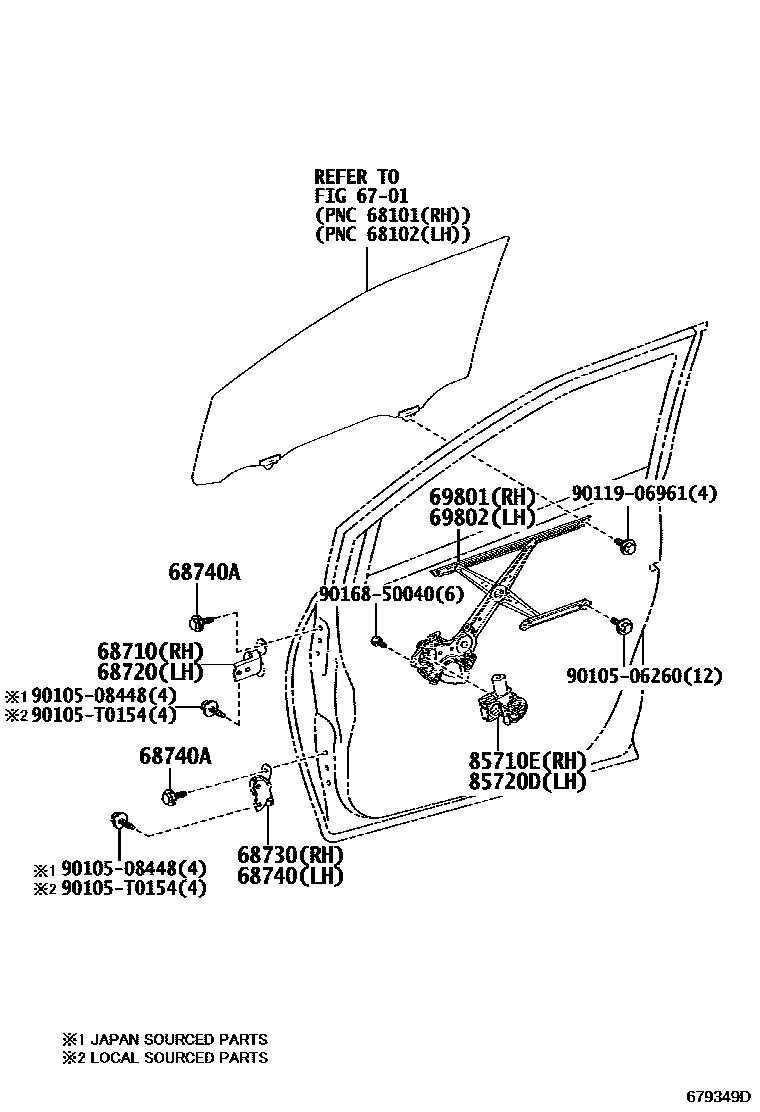

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iNSP170201911-202306

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iNSP170,ZSP170201611-201911

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iNSP170201911-202306

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iNSP170,ZSP170201611-201911

68740ABOLT(FOR FRONT DOOR HINGE)

main90105-08291×8iNSP170,ZSP170201611-201911

JAPAN SOURCED PARTS

main90105-08485×8iNSP170202006-202306

main90105-T0076×8iNSP170,ZSP170201611-201911

LOCAL SOURCED PARTS

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02340iNSP170,ZSP170201611-201911

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02350iNSP170,ZSP170201611-201911

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D380iNSP170201911-202306

main85710-0D510iNSP170,ZSP170201611-201810

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D510iNSP170,ZSP170201611-201810

main85720-0D540iNSP170,ZSP170201811-201911

9010506260

main90105-06260

9010508448

main90105-08448

90105T0154

main90105-T0154

9011906961

main90119-06961

9016850040

main90168-50040

15 parts on this diagram · 1 diagram in section
