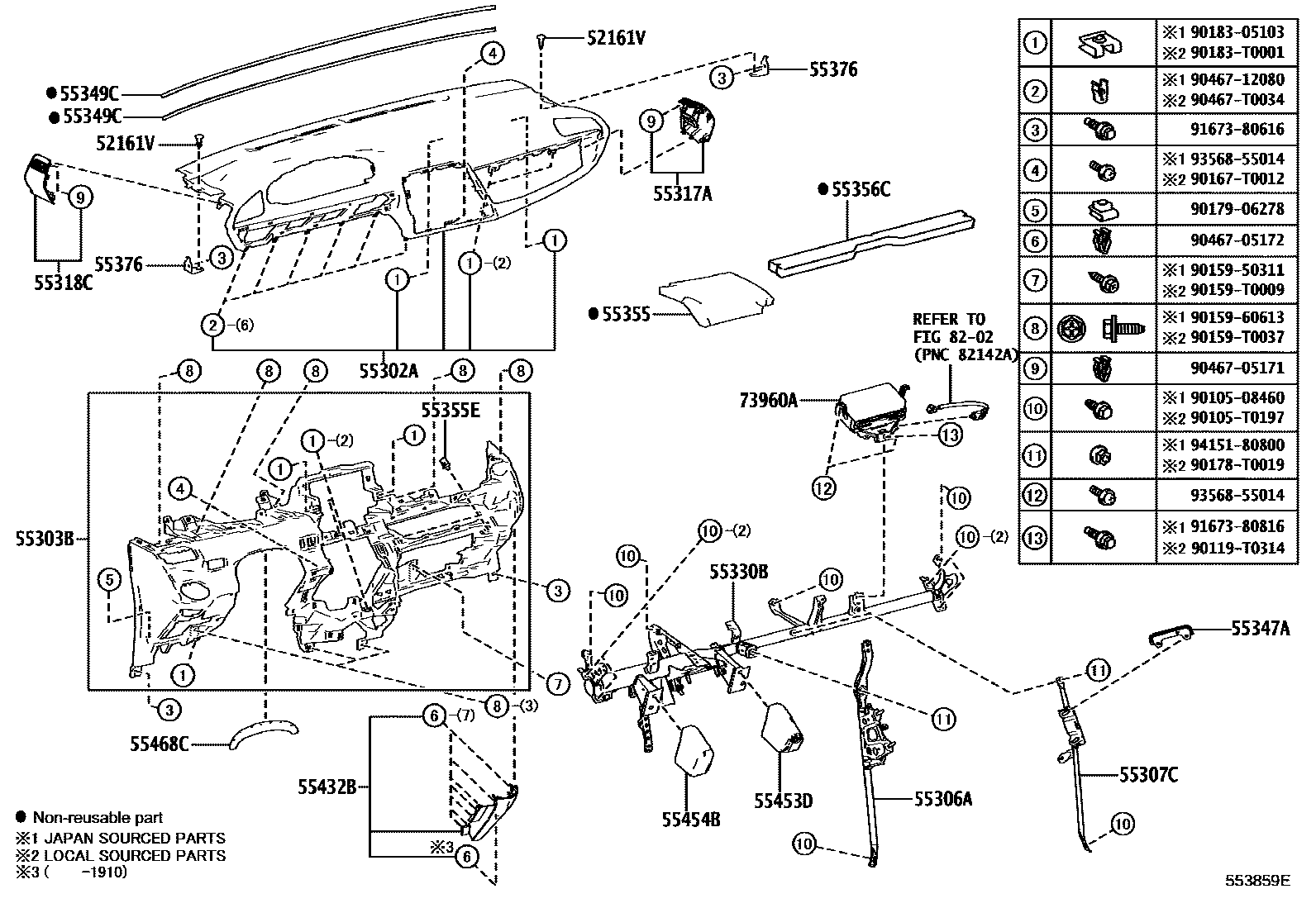

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE 0012 1DRIVER SIDE 0013 1CENTER 0014 1PASSENGER SIDE 0015 1DRIVER SIDE 0016 1CENTER 0017 1PASSENGER SIDE 0018 1DRIVER SIDE 0019 1CENTER 0020 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iZSP170201911

(L)

main52161-16010×2iZSP170201911

(J)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D230-C0iZSP170201611-201911

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D190-A0iZSP170..N,Q201911

FROMAGE,TRIM0#

main55303-0D190-C0iZSP170201911

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D380iNSP170,ZSP170201611-201911

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0D010iNSP170,ZSP170201611-201911

55317APANEL, INSTRUMENT SIDE, RH

main55318-0D180-C0iZSP170201611-201911

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-0D240-C0iZSP170..D,W201911

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0D740iNSP170,ZSP170201611-201911

main55330-0DA20iZSP170201911

55347ABRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1

main55347-0D130iNSP170201911-202306

55349CCUSHION, INSTRUMENT PANEL

main55349-0D110×2iNSP170,ZSP170201611-201911

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D220iNSP170,ZSP170201611-201911

55355ECUSHION, INSTRUMENT PANEL

main55557-52030×2iNSP170,ZSP170201611-201911

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D190iNSP170,ZSP170201611-201911

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0D150×2iNSP170201911-202306

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-0D200-A0iZSP170..N,Q201911

FROMAGE,TRIM0#

main55432-0D200-C0iZSP170201911

BLACK,TRIM2#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52190iNSP170,ZSP170201611-201911

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52190iZSP170201911

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-0D240iZSP170201911

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D150iNSP170,ZSP170201611-201911

8202

9010508460

main90105-08460

90105T0197

main90105-T0197

90119T0314

main90119-T0314

9015950311

main90159-50311

9015960613

main90159-60613

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9017906278

main90179-06278

9018305103

main90183-05103

90183T0001

main90183-T0001

9046705171

main90467-05171

9046705172

main90467-05172

9046712080

main90467-12080

90467T0034

main90467-T0034

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

40 parts on this diagram · 20 diagrams in section
