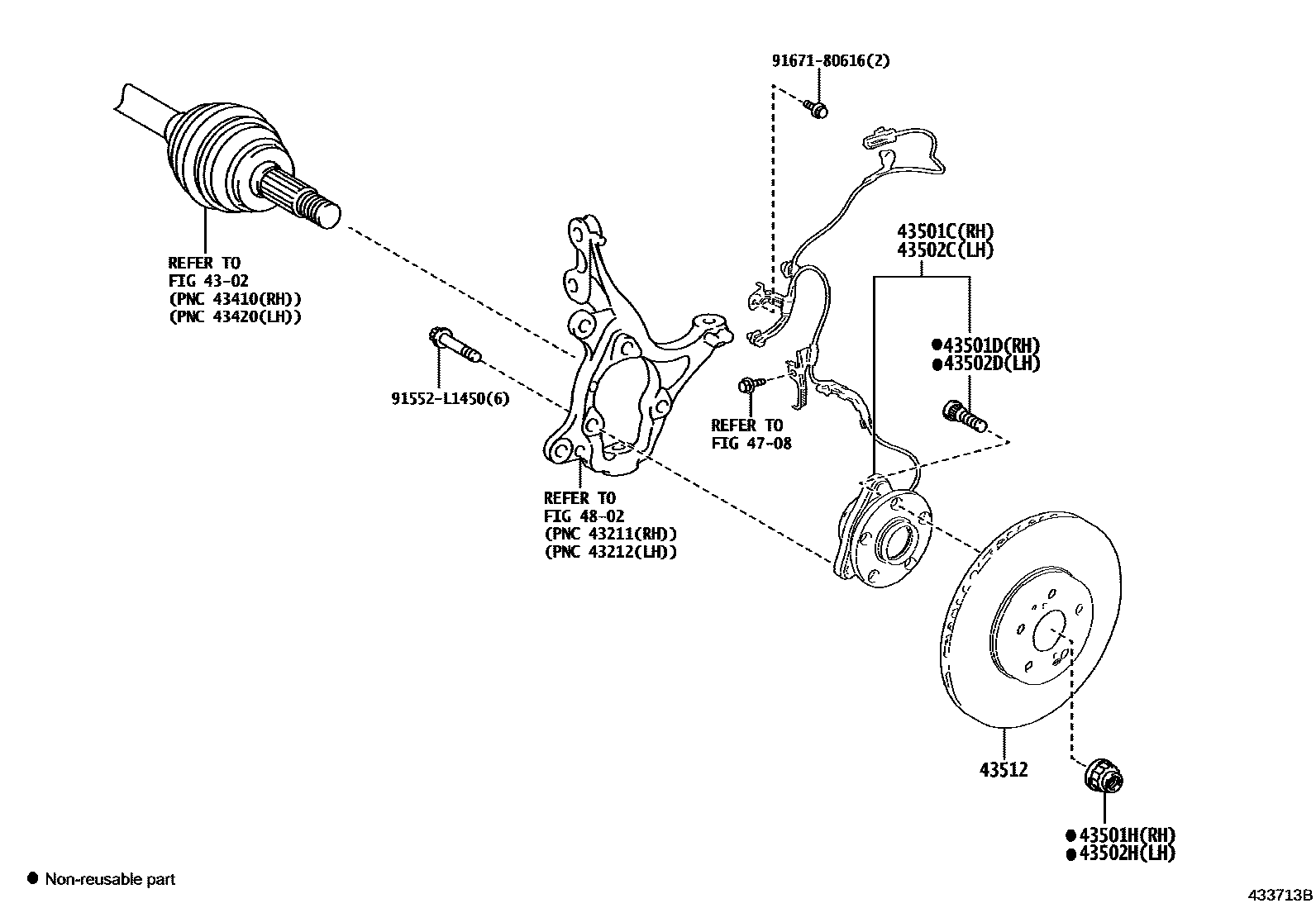

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0D120iNSP170,ZSP170201611-201911

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081×5iNSP170,ZSP170201611-201911

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNSP170,ZSP170201611-201911

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-0D020iNSP170,ZSP170201611-201911

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081×5iNSP170,ZSP170201611-201911

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNSP170,ZSP170201611-201911

43512DISC, FRONT

main43512-0D270×2iNSP170,ZSP170201611-201911

4708

4802

91552L1450

main91552-L1450

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
