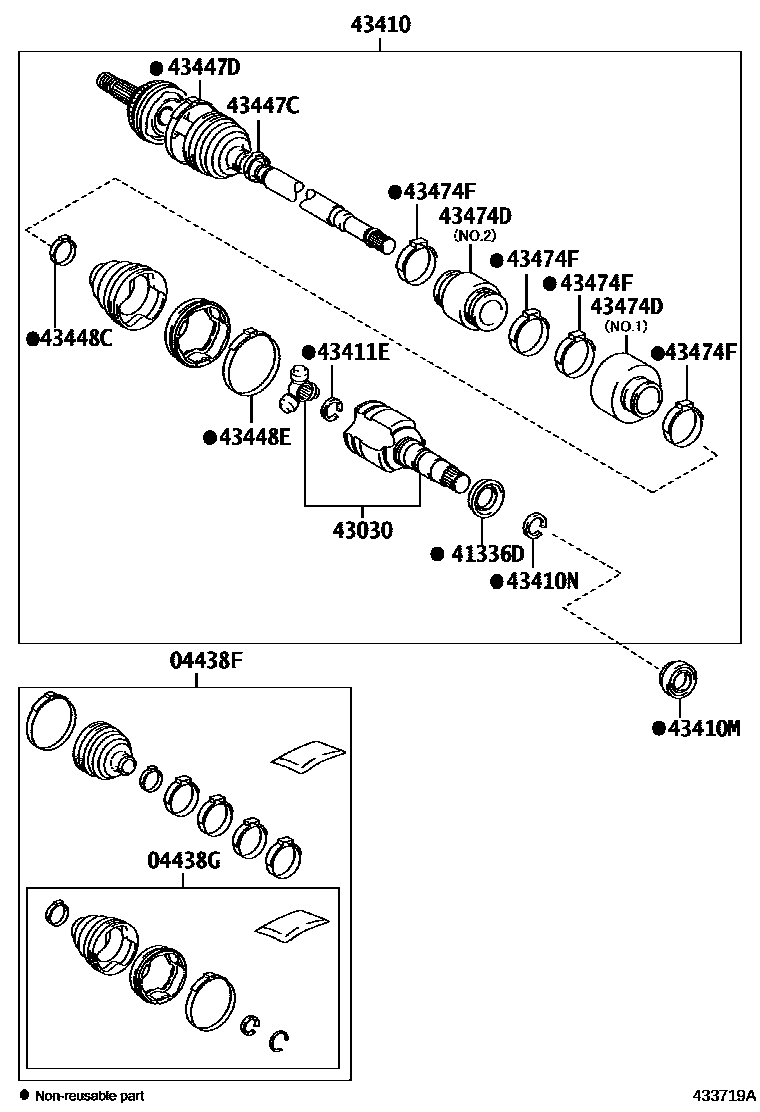

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D450iZSP170201611-201911

main04427-0D460iNSP170201611-201911

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D260iNSP170201911-202306

main04437-0D300iZSP170201611-201911

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02230iZSP170201911

main41336-0D060iNSP170201611-201911

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0D030iNSP170201611-201911

main43040-0D080iZSP170201911

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D580iNSP170201911-202306

main43410-0D590iZSP170201911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34046iNSP170201611-201808

main90311-34050iNSP170201911-202306

main90311-35069iZSP170201611-201808

main90311-35076iZSP170201911

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02470iZSP170201611-201911

main43425-0D160iNSP170201611-201911

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D150iNSP170201911-202306

main43425-0D450iZSP170201611-201911

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D670iNSP170,ZSP170201611-201911

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D660iNSP170,ZSP170201611-201911

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02A10iZSP170201911

main42345-0DA40iNSP170201911-202306

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DA30iNSP170201611-201911

main42345-0DB70iZSP170201611-201911

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D270iNSP170,ZSP170201611-201911

NO.1

main43474-0D360iNSP170,ZSP170201611-201911

NO.2

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-02B60×4iNSP170,ZSP170201611-201911

14 parts on this diagram · 2 diagrams in section
