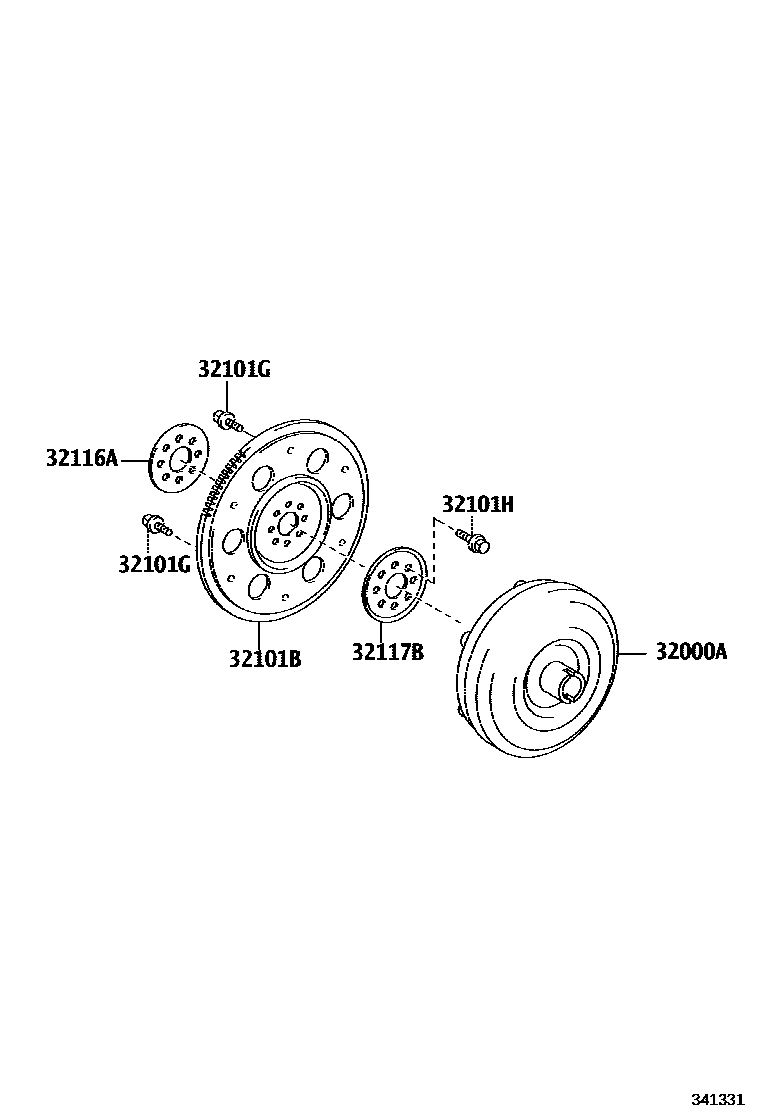

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12400iZSP170201611-201911

main32000-52200iNSP170201611-201905

main32000-52201iNSP170201906-201911

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP170202101-202306

main32101-12100iZSP170201911

main32111-52110iNSP170201911-202101

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP170201911-202306

*8-1.25PX12-8.4,BLACK

main90119-08498×5iNSP170,ZSP170201611-201911

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iNSP170,ZSP170201611-201911

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP170,ZSP170201611-201911

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP170,ZSP170201611-201911

6 parts on this diagram · 1 diagram in section
