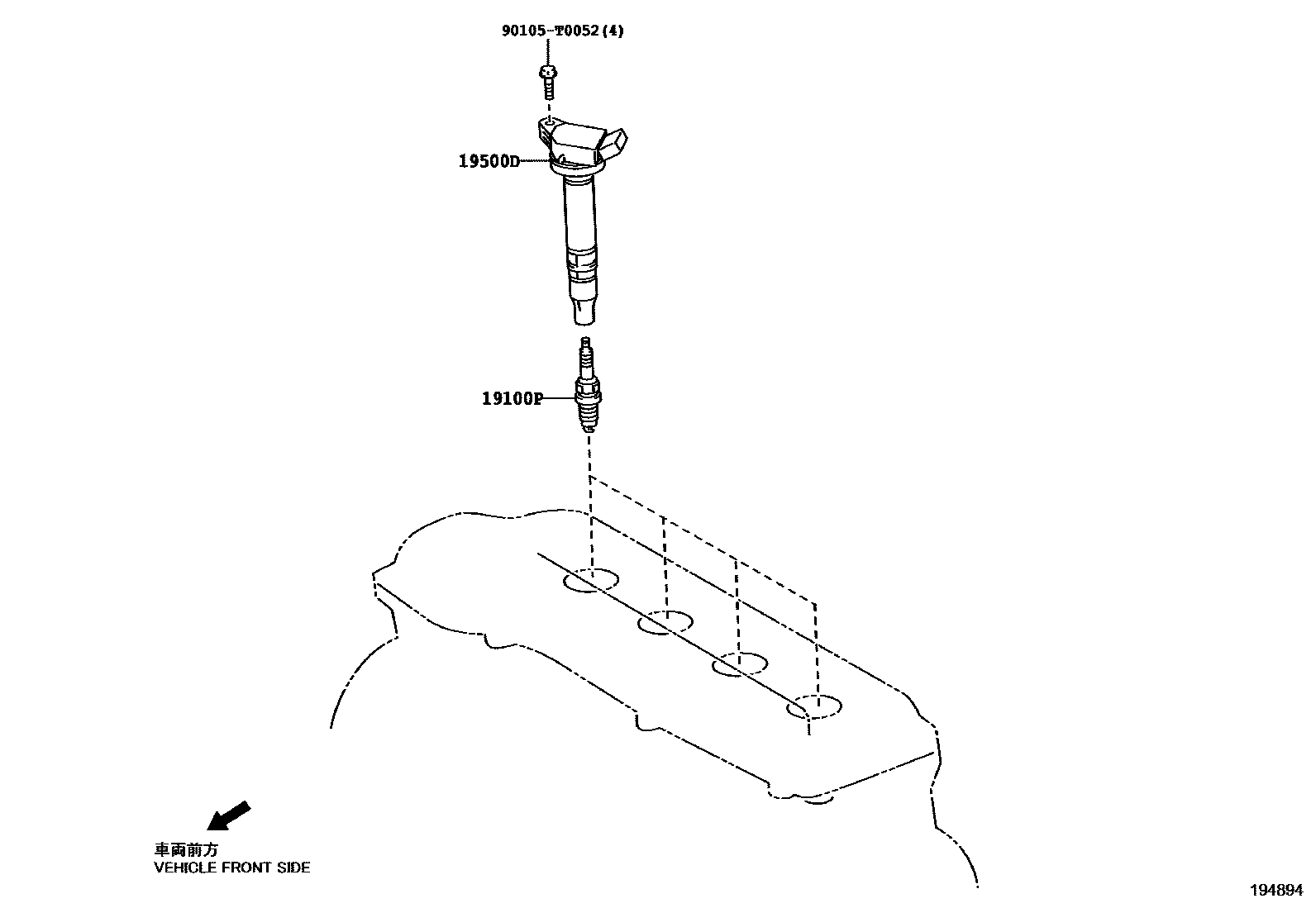

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01275×4i2NRFE..NSP170201611-201911

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258×4i2ZRFAE..ZSP170201611-201911

19500DCOIL, IGNITION, NO.1

main90919-T2011×4i2NRFE..NSP170201611-201911

90105T0052

main90105-T0052

4 parts on this diagram · 2 diagrams in section
