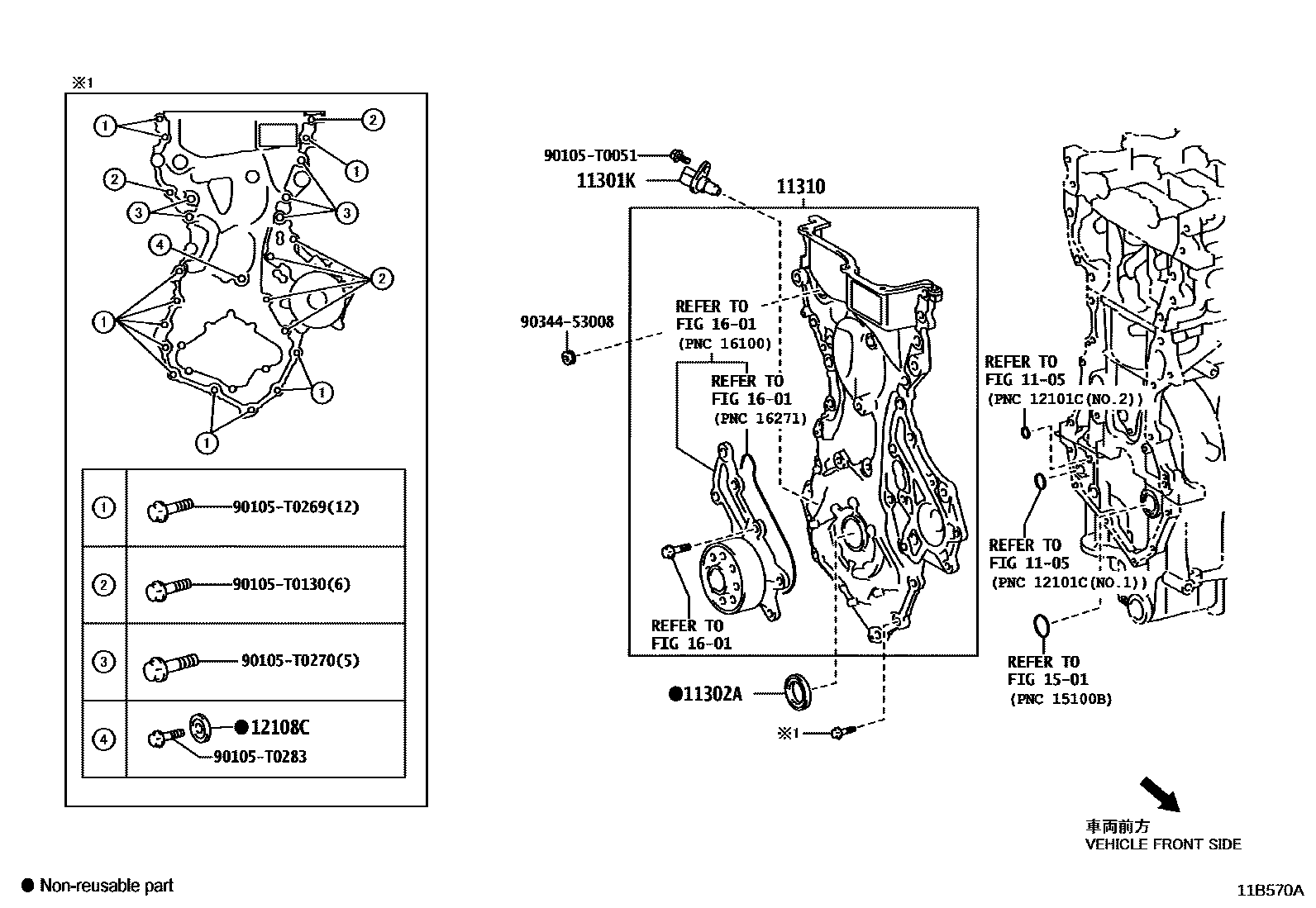

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301KSENSOR, CRANK POSITION

main90919-T5001i2NRFE..NSP170201611-201911

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37050i2ZRFAE..ZSP170201611-201911

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i2ZRFAE..ZSP170201911

main90311-T0076i2NRFE..NSP170201911-202306

11310COVER ASSY, TIMING CHAIN

main11310-0Y040i2NRFE..NSP170201611-201911

12108CGASKET

main16258-0Y010i2NRFE..NSP170201611-201911

1501

1601

90105T0051

main90105-T0051

90105T0130

main90105-T0130

90105T0269

main90105-T0269

90105T0270

main90105-T0270

90105T0283

main90105-T0283

9034453008

main90344-53008

14 parts on this diagram · 2 diagrams in section
