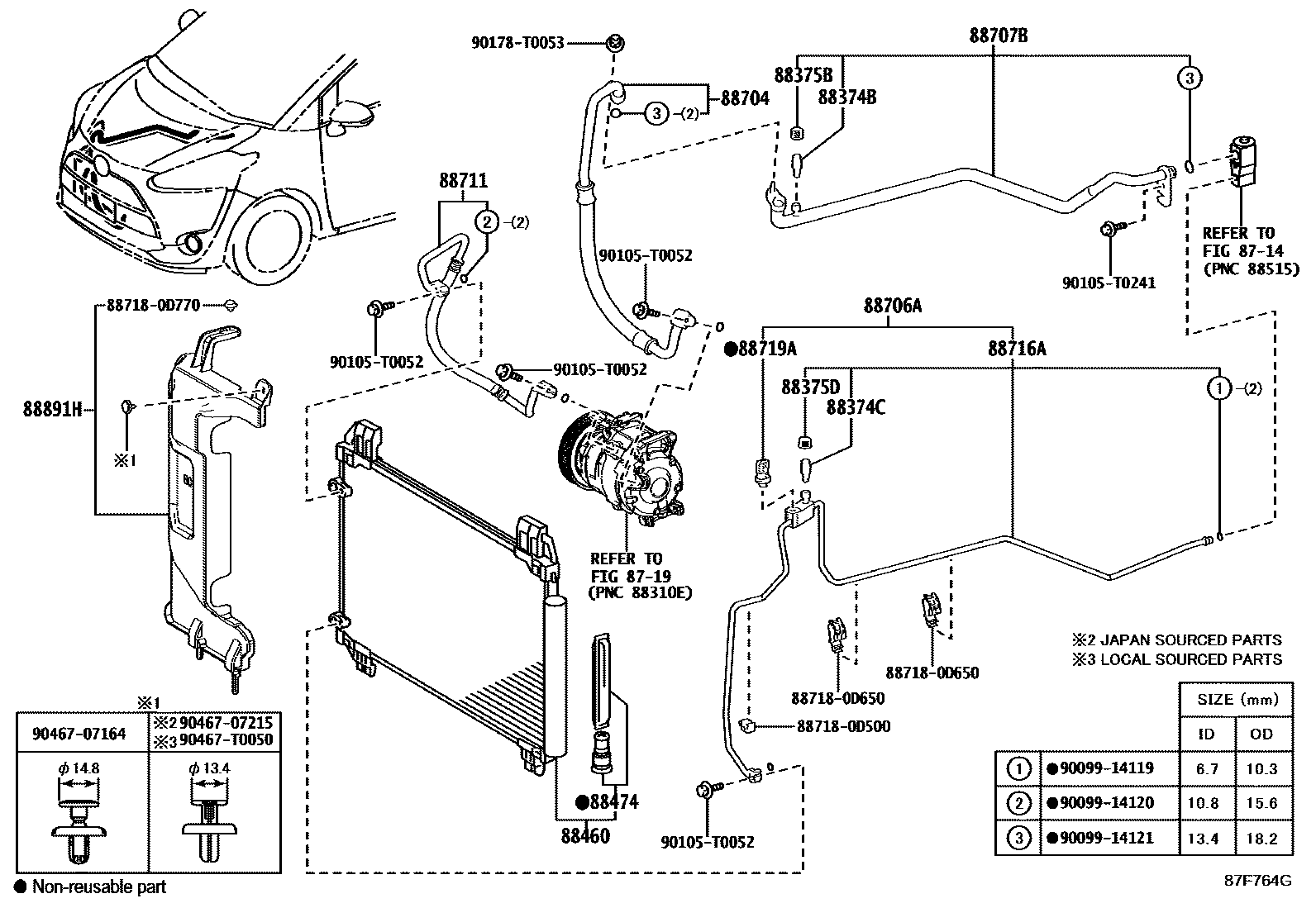

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
FRONT AIR CONDITIONER(MOP)-AUTO COOLER(DOP); FRONT AIR CONDITIONER(MOP)-MANUAL COOLER(DOP)
88374CVALVE, SERVICE, NO.2
FRONT AIR CONDITIONER(MOP)-AUTO COOLER(DOP); FRONT AIR CONDITIONER(MOP)-MANUAL COOLER(DOP)
88375BCAP, SERVICE VALVE, NO.1
FRONT AIR CONDITIONER(MOP)-AUTO COOLER(DOP); FRONT AIR CONDITIONER(MOP)-MANUAL COOLER(DOP)
88375DCAP, SERVICE VALVE, NO.2
FRONT AIR CONDITIONER(MOP)-AUTO COOLER(DOP); FRONT AIR CONDITIONER(MOP)-MANUAL COOLER(DOP)
88460CONDENSER ASSY, COOLER
MALAYSIA SPEC
88474DRYER, COOLER
MALAYSIA SPEC
88704HOSE SUB-ASSY, SUCTION
MALAYSIA SPEC
88706ATUBE SUB-ASSY, LIQUID, A
MALAYSIA SPEC&AIR CONDITIONER(DOP)-AUTO COOLER; MALAYSIA SPEC&AIR CONDITIONER(DOP)-MANUAL COOLER
88707BTUBE SUB-ASSY, SUCTION, B
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
MALAYSIA SPEC
88716APIPE, COOLER REFRIGERANT LIQUID, A
88719ASENSOR, AIR CONDITIONER PRESSURE
FRONT AIR CONDITIONER(MOP)-AUTO COOLER(DOP); FRONT AIR CONDITIONER(MOP)-MANUAL COOLER(DOP)
88891HCOVER, COOLER, NO.1
887180D500PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0D500
887180D650PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0D650
887180D770PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0D770
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90178T0053
main90178-T0053
9046707164
main90467-07164
9046707215
main90467-07215
90467T0050
main90467-T0050
27 parts on this diagram · 6 diagrams in section
