SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR & ROOF 0008 1FLOOR & BACK DOOR

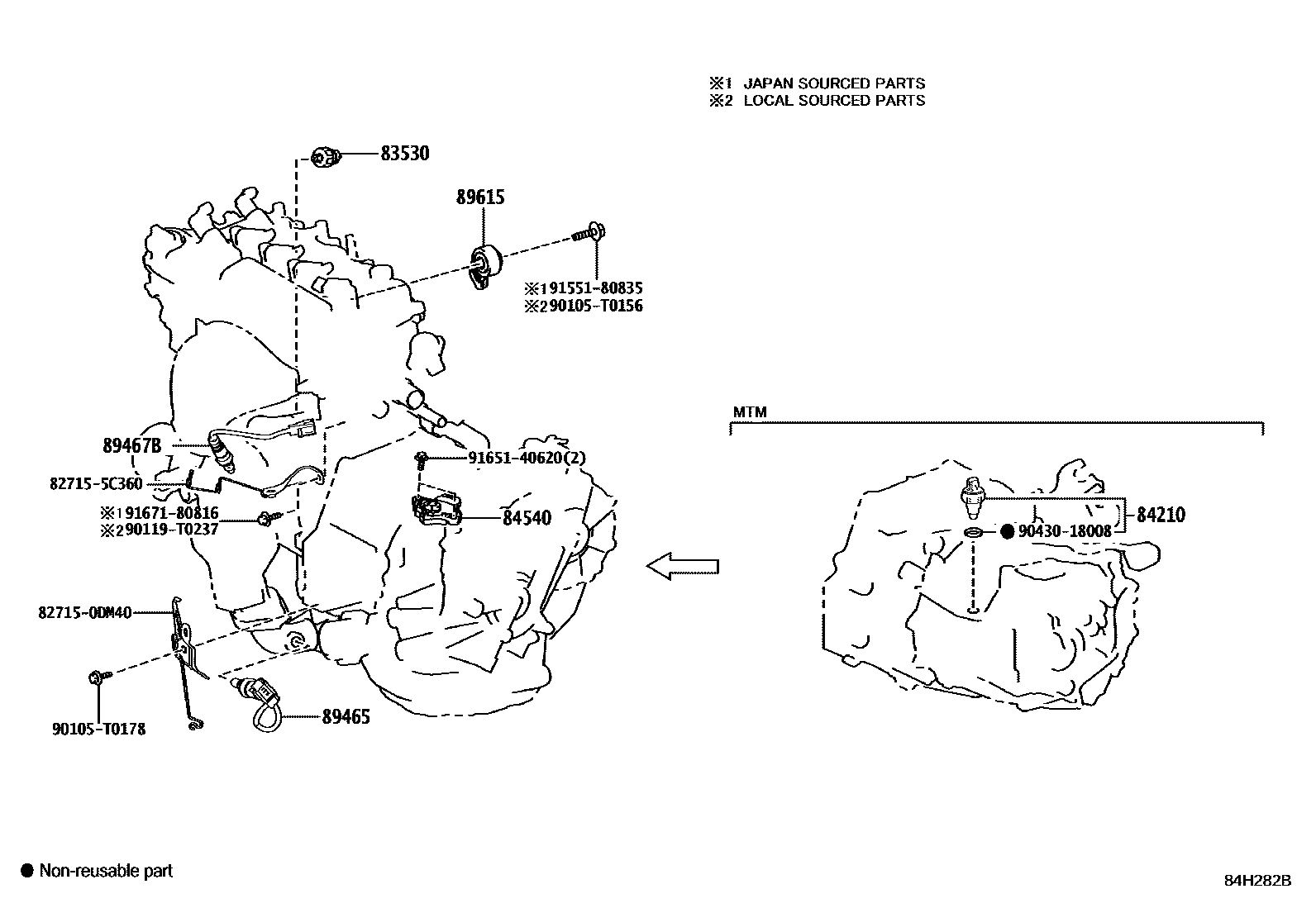

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP170201607-202203

DENSO

main83530-60020iNSP170201607-202203

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP170..6F201607-202203

84540SWITCH ASSY, NEUTRAL START

main84540-52070iNSP170..CVT201607-201907

89465SENSOR, OXYGEN

main89465-52740iNSP170201607-201902

main89465-52A00iNSP170201903-202203

89467BSENSOR, AIR FUEL RATIO

main89467-30050iNSP170201607-201803

main89467-52250iNSP170..6F..TH201803-202203

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP170..CVT;NSP170..6F..IDN201607-202203

827150DM40BRACKET,WIRING HARNESS CLAMP

main82715-0DM40

827155C360BRACKET,WIRING HARNESS CLAMP

main82715-5C360

90105T0156

main90105-T0156

90105T0178

main90105-T0178

90119T0237

main90119-T0237

9043018008

main90430-18008

9155180835

main91551-80835

9165140620

main91651-40620

9167180816

main91671-80816

15 parts on this diagram · 8 diagrams in section
