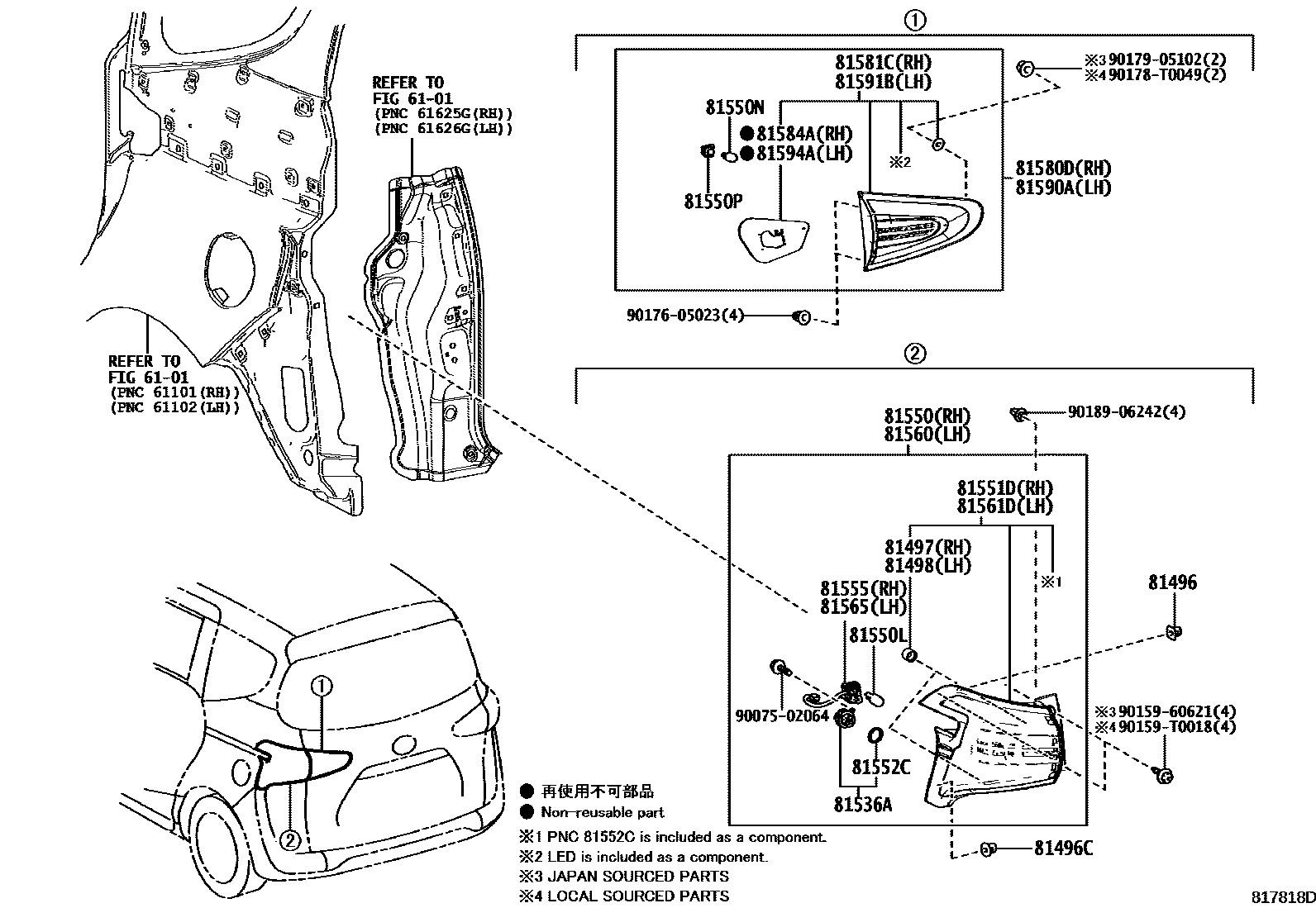

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040×2iNSP170..6F..TH201907-202203

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0D060×2iNSP170201607-201907

81497COVER, REAR COMBINATION LAMP, RH

main90075-15512×2iNSP170201607-201907

81498COVER, REAR COMBINATION LAMP, LH

main90075-15512×2iNSP170201607-201907

81536ALED, REAR COMBINATION LAMP

main81536-52C80×2iNSP170201607-201907

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D630iNSP170..E,G;NSP170..V..IDN201607-201907

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iNSP170..CVT;NSP170..6F..IDN201907

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iNSP170..6F..TH201907-202203

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-99005×2iNSP170..E,G;NSP170..V..IDN201607-201907

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D630iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201907

main81551-52C90iNSP170..Q;NSP170..V..TH201607-201907

81552CGASKET, REAR COMBINATION LAMP

main90075-68010×4iNSP170201607-201907

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D630iNSP170..E,G;NSP170..V..IDN201607-201907

main81555-52C90iNSP170..Q;NSP170..V..TH201607-201907

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D630iNSP170..E,G;NSP170..V..IDN201607-201907

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D630iNSP170..E,G;NSP170..V..IDN201607-201907

main81561-52C90iNSP170..Q;NSP170..V..TH201607-201907

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D630iNSP170..6F..TH201907-202203

main81555-52C90iNSP170..Q;NSP170..V..TH201907

81580DLAMP ASSY, REAR, RH

main81580-0D240iNSP170..E,G;NSP170..V..IDN201607-201907

81581CLENS AND BODY, REAR LAMP, RH

main81581-0D240iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201907

main81581-52330iNSP170..Q;NSP170..V..TH201907

81584AGASKET, REAR LAMP RH

main81584-0D240iNSP170..6F..TH201907-202203

main81584-52320iNSP170..Q;NSP170..V..TH201607-201907

81590ALAMP ASSY, REAR, LH

main81590-0D240iNSP170..E,G;NSP170..V..IDN201607-201907

81591BLENS AND BODY, REAR LAMP, LH

main81591-0D240iNSP170..6F..TH201907-202203

main81591-52330iNSP170..Q;NSP170..V..TH201607-201907

81594AGASKET, REAR LAMP LH

main81594-0D240iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201907

main81594-52320iNSP170..Q;NSP170..V..TH201607-201907

9007502064

main90075-02064

9015960621

main90159-60621

90159T0018

main90159-T0018

9017605023

main90176-05023

90178T0049

main90178-T0049

9017905102

main90179-05102

9018906242

main90189-06242

29 parts on this diagram · 2 diagrams in section
