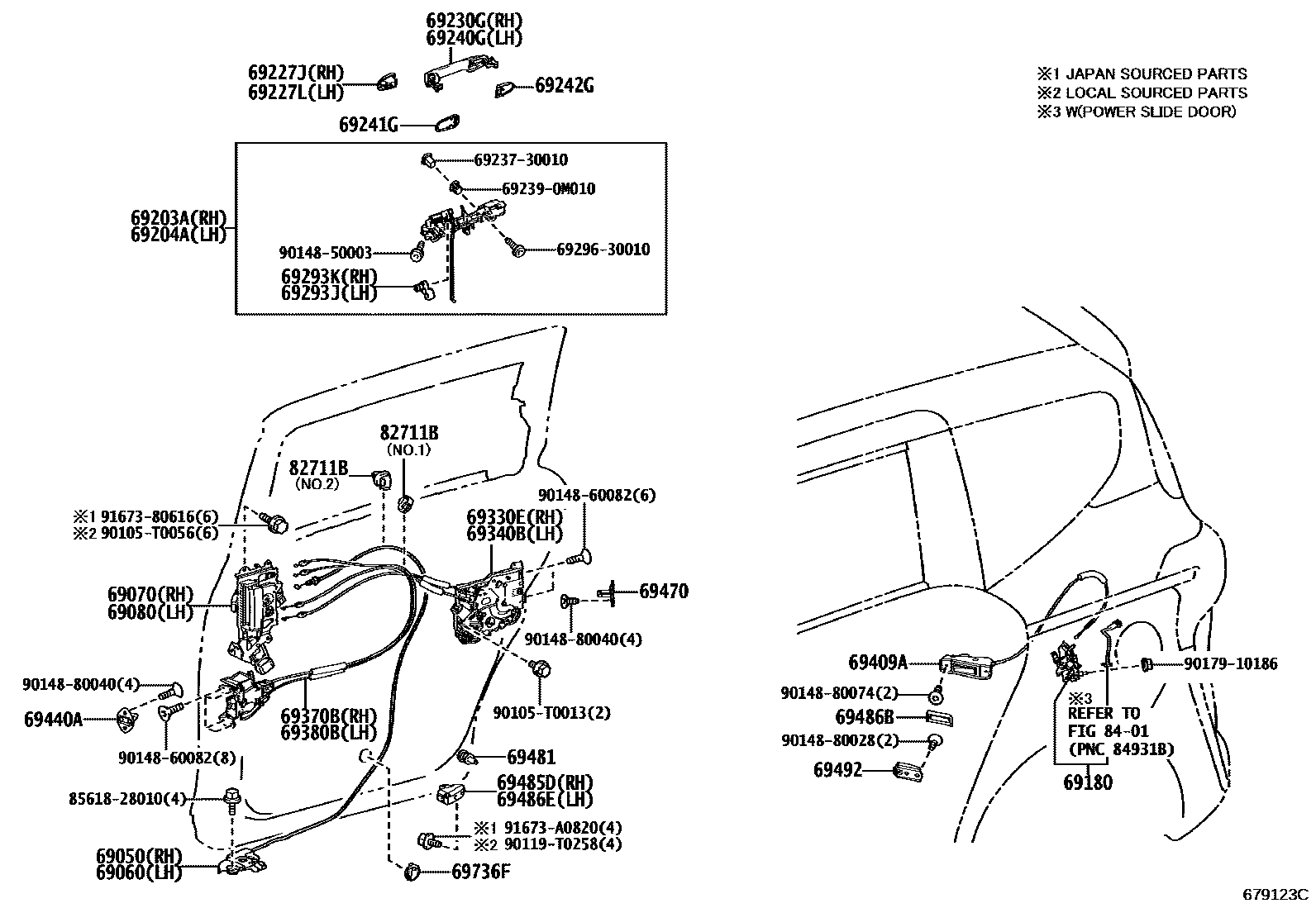

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-0D340iNSP170..6F..TH201907-202203

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-0D340iNSP170201607-201907

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-0D010-C0iNSP170..Q,V201607-201711

BLACK,TRIM0#,2#

main69070-0D011-C0iNSP170..Q,V201712-201907

BLACK,TRIM2#

main69070-0D020-C0iNSP170..E,G201607-201711

BLACK,TRIM2#

main69070-0D021-C0iNSP170..E,G201712-201907

BLACK,TRIM2#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-0D010-C0iNSP170..G201607-201711

BLACK,TRIM0#,2#

main69080-0D011-C0iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201907

BLACK,TRIM2#

main69080-0D020-C0iNSP170..E201607-201711

BLACK,TRIM2#

main69080-0D021-C0iNSP170..E201907

BLACK,TRIM2#

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-0D010iNSP170..G,Q,V201607-201907

main69180-0D020iNSP170..E201607-201907

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0D170iNSP170201607-201907

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0D170iNSP170..6F..TH201907-202203

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69217-0D510iNSP170..E201907

BLACK MATERIAL

main69217-0D921iNSP170..6F..TH201907-202203

LESS COLOR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69217-0D510iNSP170..E201607-201907

BLACK MATERIAL

main69217-0D921iNSP170..G,Q,V201607-201907

LESS COLOR

69230GHANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69213-0D180iNSP170..E201907

main69213-0D900iNSP170..G,Q,V201607-201907

69240GHANDLE ASSY, SLIDE DOOR, OUTSIDE LH

main69213-0D180iNSP170..E201607-201907

main69213-0D900iNSP170..G,Q,V201607-201907

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69242-0D140×2iNSP170201607-201907

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-0D210×2iNSP170201607-201907

69293JSNAP, REAR DOOR OUTSIDE HANDLE, LH

main69293-0D140iNSP170201607-201907

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-0D130iNSP170..CVT;NSP170..6F..IDN201907

69330ELOCK ASSY, SLIDE DOOR, RH

main69200-0D010iNSP170..Q,V201607-201807

main69200-0D011iNSP170..Q,V201808-201902

main69200-0D012iNSP170..Q,V201907

main69200-0D020iNSP170..E,G201607-201807

main69200-0D021iNSP170..E,G201808-201902

main69200-0D022iNSP170..6F..TH201907-202203

69340BLOCK ASSY, SLIDE DOOR, LH

main69300-0D010iNSP170..G,Q,V201607-201807

main69300-0D011iNSP170..G,Q,V201808-201902

main69300-0D012iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201907

main69300-0D020iNSP170..E201607-201807

main69300-0D021iNSP170..E201808-201902

main69300-0D022iNSP170..E201903-201907

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-0D010iNSP170201607-201907

main69370-0D011iNSP170..CVT;NSP170..6F..IDN202206

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-0D010iNSP170201607-201907

main69380-0D011iNSP170..CVT;NSP170..6F..IDN202206

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-0D010iNSP170..CVT;NSP170..6F..IDN201907

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-0D010×2iNSP170201607-201907

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-0D010×2iNSP170201607-201907

69481LATCH, SLIDE DOOR OPEN

main69481-52030×2iNSP170201607-201907

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-0D010iNSP170201607-201907

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-46010iNSP170201607-201907

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-0D010iNSP170201607-201907

69492STOPPER, SLIDE DOOR HALF OPEN

main69492-52020iNSP170201607-201907

69736FGUIDE, SLIDE DOOR LOCKING LINK

main69736-52010×2iNSP170201607-201907

82711BCLAMP, WIRING HARNESS

main82711-16790×2iNSP170201607-201907

NO.1:REFER ILLUST.

main82711-1E300×2iNSP170..6F..TH201907-202203

NO.2:REFER ILLUST.

8401

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

692390M010PIN, BACK DOOR OUTSIDE HANDLE

main69239-0M010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

8561828010SCREW, SLIDE ROOF MOTOR THRUST

main85618-28010

90105T0013

main90105-T0013

90105T0056

main90105-T0056

90119T0258

main90119-T0258

9014850003

main90148-50003

9014860082

main90148-60082

9014880028

main90148-80028

9014880040

main90148-80040

9014880074

main90148-80074

9017910186

main90179-10186

9167380616

main91673-80616

91673A0820

main91673-A0820

45 parts on this diagram · 1 diagram in section
