Toyota 119330 — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

55217ERETAINER, DASH PANEL SILENCER

55701PANEL SUB-ASSY, COWL

55701-0D180

55700-0D340

55701JPANEL SUB-ASSY, COWL TOP, OUTER

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

55713APANEL, COWL TOP SIDE, RH

55714APANEL, COWL TOP SIDE, LH

55722CBRACE, COWL TOP TO COWL, INNER

55735DSEAL, FRONT AIR SHUTTER, RH

55736GSEAL, FRONT AIR SHUTTER, LH

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

55745AREINFORCEMENT, COWL TOP, INNER

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

55781GCLIP, COWL TOP VENTILATOR LOUVER

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

55787CINSULATOR, COWL TOP PANEL, NO.1

56111GLASS, WINDSHIELD

56115ASTOPPER, WINDSHIELD GLASS, NO.1

56116CSTOPPER, WINDSHIELD GLASS, NO.2

56117GDAM, WINDOW GLASS ADHESIVE

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

9011906786

90119-06786

90119T0156

90119-T0156

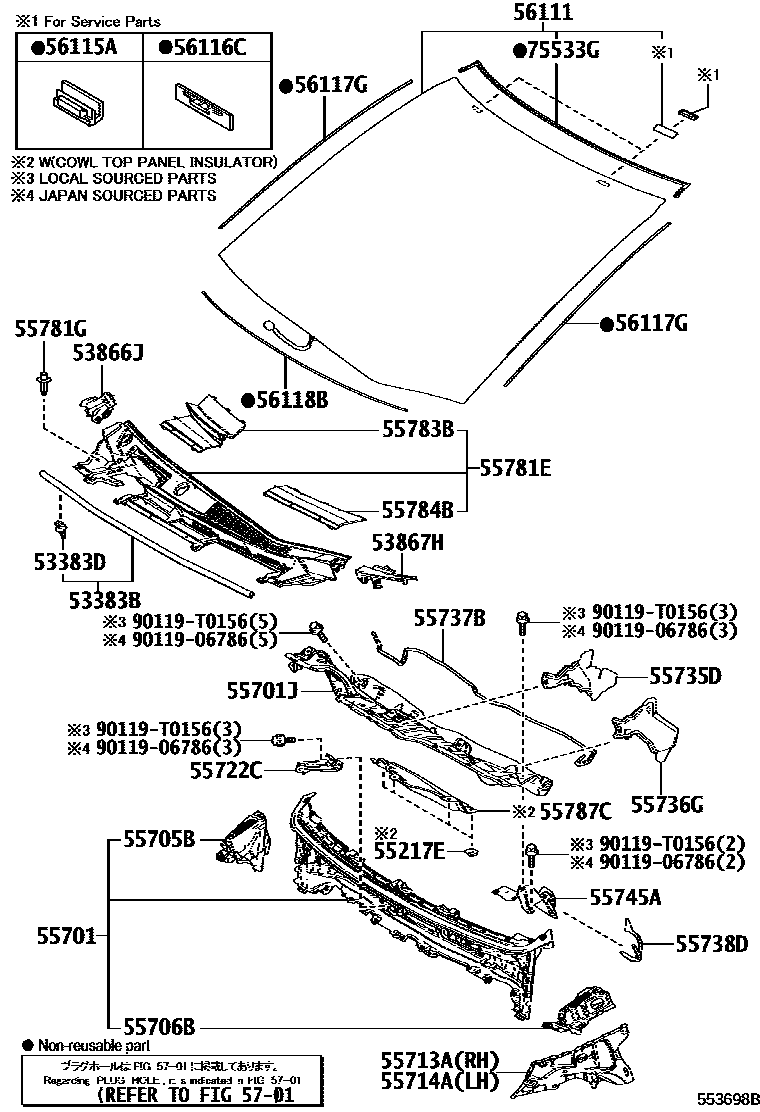

31 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota 119330

This section contains 31 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota 119330. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), SEAL, FRONT FENDER TO COWL SIDE, RH, SEAL, FRONT FENDER TO COWL SIDE, LH, RETAINER, DASH PANEL SILENCER.
