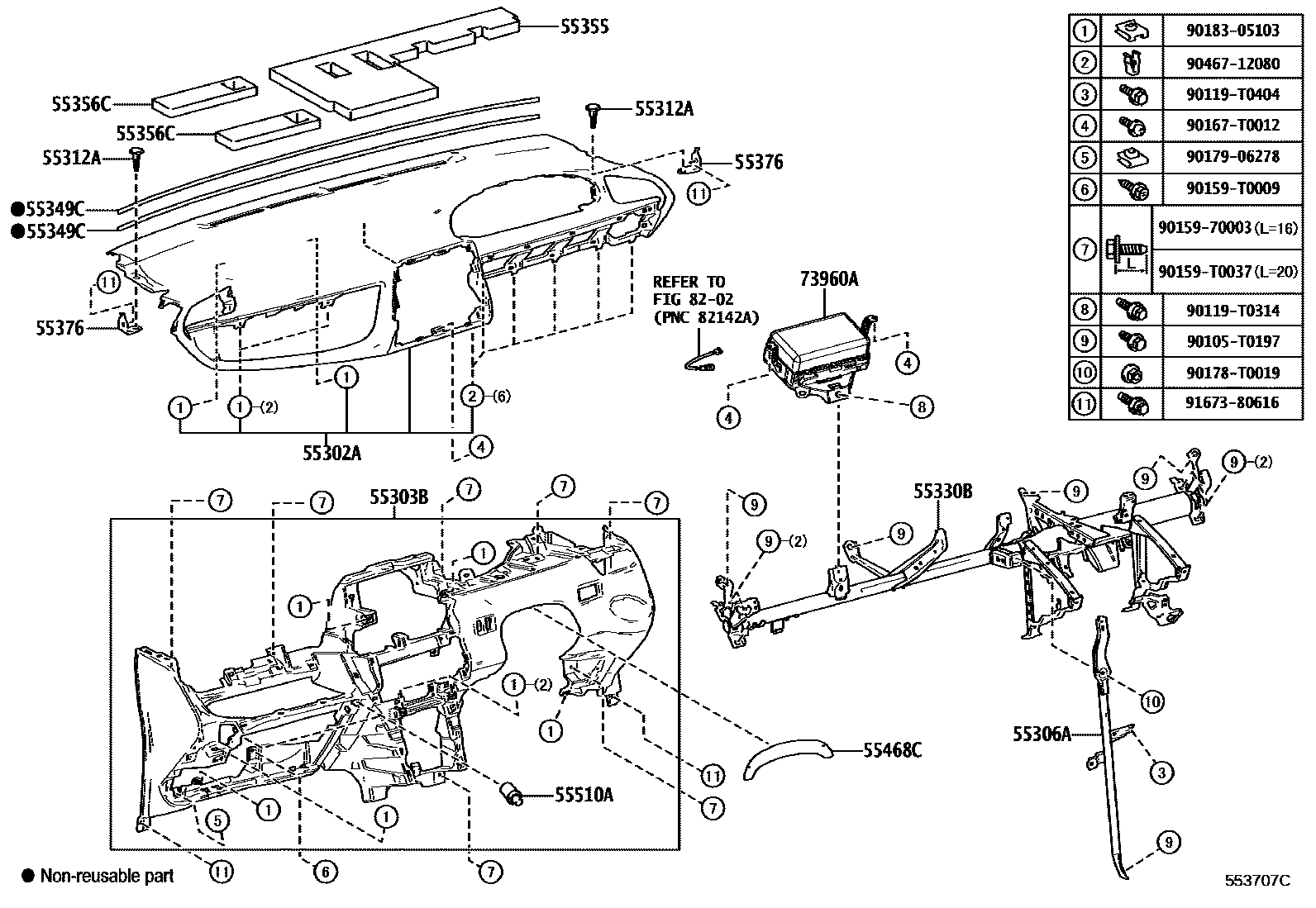

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D220-C0iNSP170..E,G201607-201907

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D180-A0iNSP170..Q,V201607-201907

FROMAGE,TRIM0#,21

main55303-0D180-C0iNSP170..E,G201607-201907

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D280iNSP170201607-201907

55312ACLIP, INSTRUMENT PANEL

main52161-0K040×2iNSP170201607-201907

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0D560iNSP170..CVT;NSP170..6F..IDN201907

55349CCUSHION, INSTRUMENT PANEL

main55349-0D230×2iNSP170201607-201907

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D510iNSP170..CVT;NSP170..6F..IDN201907

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D310×2iNSP170201607-201907

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0D120×2iNSP170201607-201907

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-0D210iNSP170..6F..TH201907-202203

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main55557-52030×2iNSP170..CVT;NSP170..6F..IDN201907

main55557-78010×2iNSP170201607-201707

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D120iNSP170201607-201907

8202

90105T0197

main90105-T0197

90119T0314

main90119-T0314

90119T0404

main90119-T0404

9015970003

main90159-70003

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9167380616

main91673-80616

25 parts on this diagram · 4 diagrams in section
