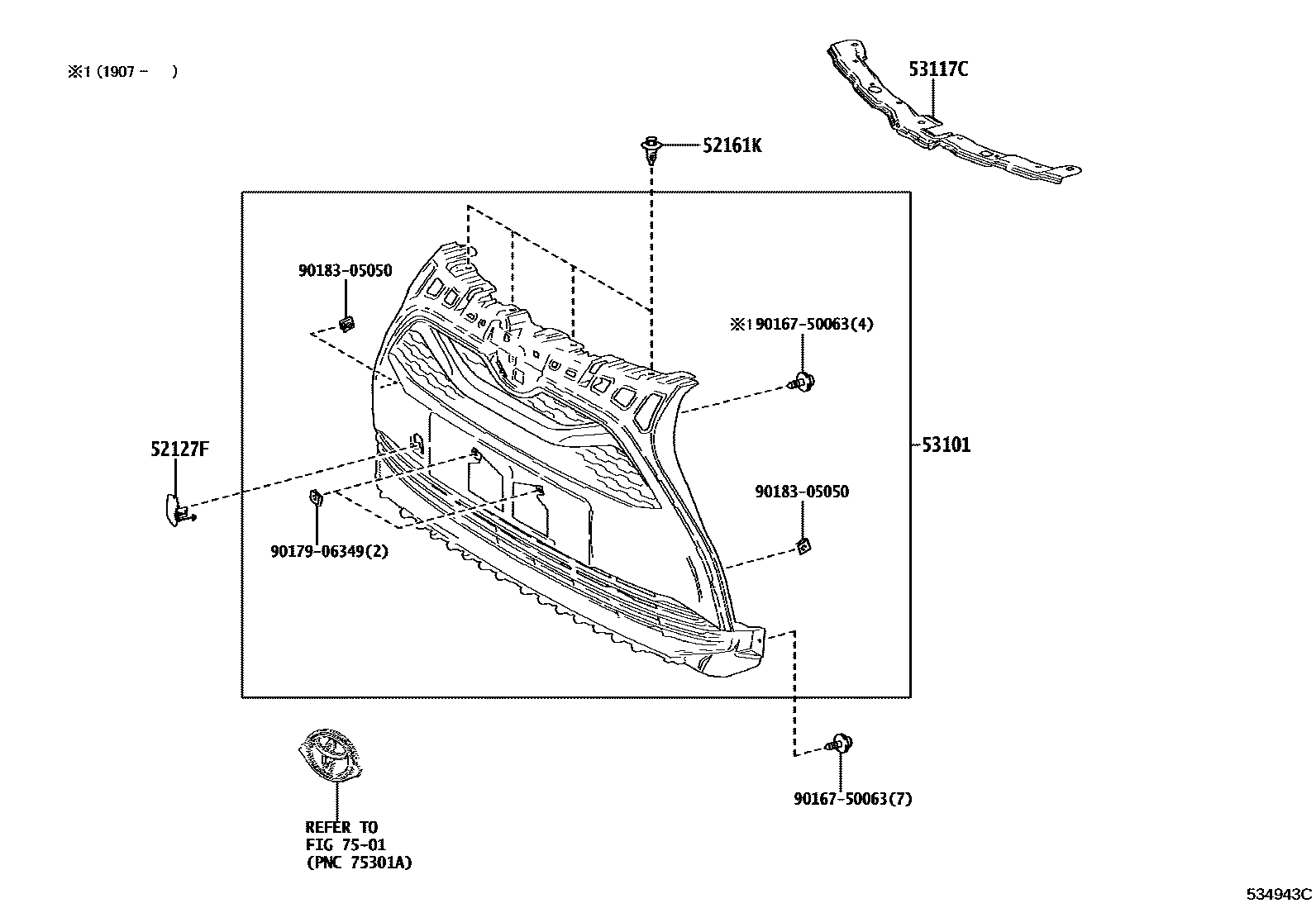

RADIATOR GRILLE

52127FCOVER, FRONT BUMPER HOLE

main52127-0D550iNSP170201607-201907

main52127-0DE90iNSP170..CVT;NSP170..6F..IDN201907

52161KPIECE, FRONT BUMPER

main52161-0K040×4iNSP170201607-201907

53101GRILLE SUB-ASSY, RADIATOR

main53101-0D690iNSP170..E201607-201907

NO PAINT REQ.

main53101-0D700iNSP170..G,Q,V201607-201907

NO PAINT REQ.

main53101-0D907iNSP170..CVT..TH;NSP170..(Q,V)..IDN201907

PLATED

main53101-0DE40iNSP170..E201907

NO PAINT REQ.

main53101-0DE50iNSP170..6F..TH201907-202203

PLATED

53117CRETAINER, RADIATOR GRILLE, NO.1

main52521-0D020iNSP170201607-201907

7501

9016750063

main90167-50063

9017906349

main90179-06349

9018305050

main90183-05050

8 parts on this diagram · 1 diagram in section
