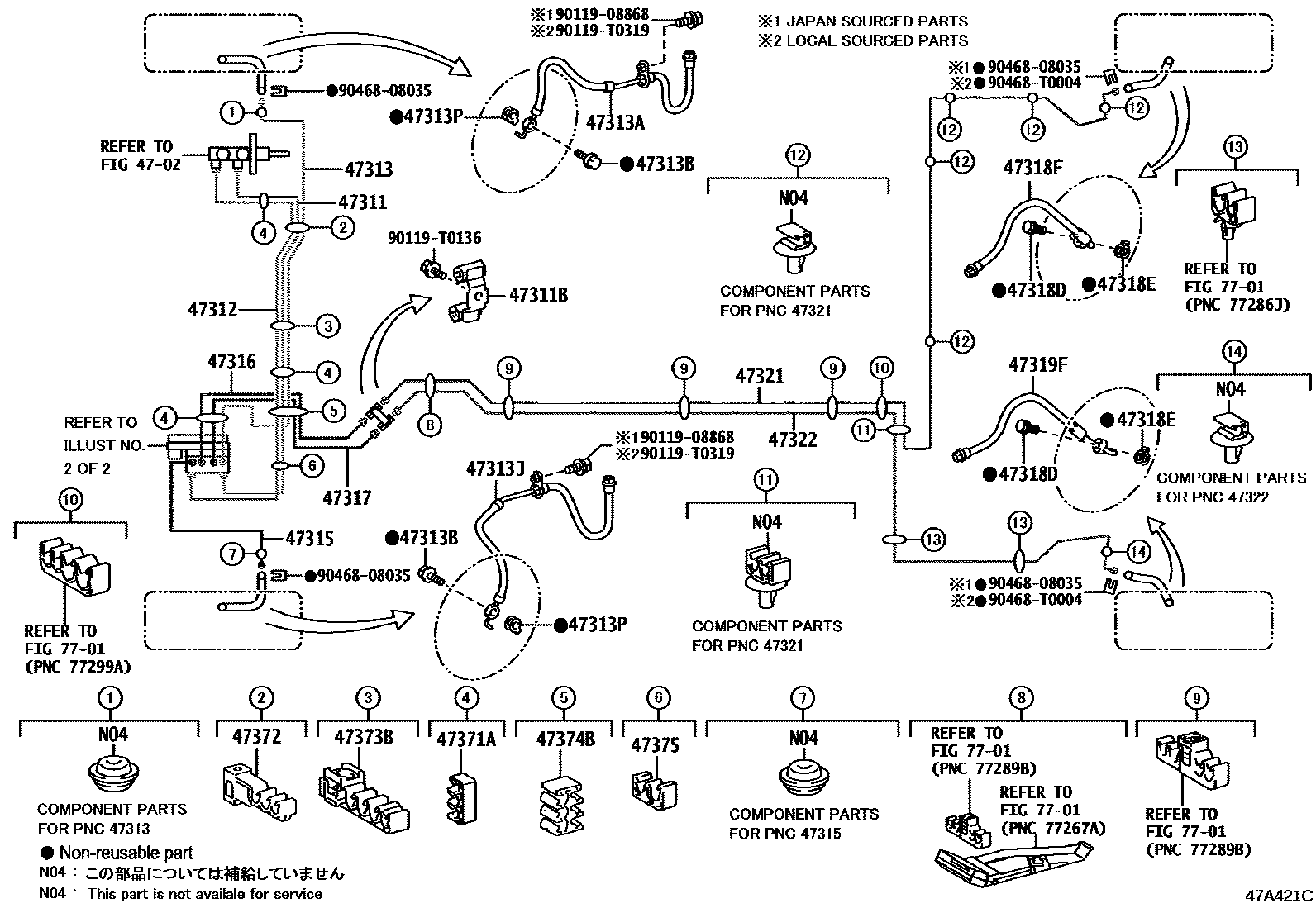

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, W(ABS) 0002 1BRAKE TUBE, W(VSC) 0003 1BRAKE ACTUATOR, W(ABS) 0004 1BRAKE ACTUATOR, W(VSC)

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0D690iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47311-0D700iNSP170..Q;NSP170..CVT..TH201607-201907

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNSP170201607-201907

47312TUBE, FRONT BRAKE, NO.2

main47312-0D620iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47312-0D630iNSP170..Q;NSP170..CVT..TH201607-201907

47313TUBE, FRONT BRAKE, NO.3

main47313-0D380iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47313-0D610iNSP170..Q;NSP170..CVT..TH201607-201907

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2119iNSP170201607-201907

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNSP170201607-201907

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2120iNSP170..6F..TH201907-202203

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNSP170..6F..TH201907-202203

47315TUBE, FRONT BRAKE, NO.5

main47315-0D600iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47315-0D610iNSP170..Q;NSP170..CVT..TH201607-201907

47316TUBE, FRONT BRAKE, NO.6

main47316-0D520iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47316-0D530iNSP170..Q;NSP170..CVT..TH201907

47317TUBE, FRONT BRAKE, NO.7

main47317-0D510iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main47317-0D520iNSP170..Q;NSP170..CVT..TH201907

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iNSP170..CVT;NSP170..6F..IDN201907

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iNSP170201607-201907

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2117iNSP170201607-201907

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2117iNSP170201607-201907

47321TUBE, REAR BRAKE, NO.1

main47321-0D430iNSP170201607-201907

47322TUBE, REAR BRAKE, NO.2

main47322-0D430iNSP170201607-201907

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00899×2iNSP170..Q;NSP170..CVT..TH201607-201907

main90949-01D92×3iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

47372CLAMP, BRAKE TUBE, NO.2

main90464-00955iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main90949-01D94iNSP170..Q;NSP170..CVT..TH201607-201907

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D96iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main90949-01D97iNSP170..Q;NSP170..CVT..TH201907

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D93iNSP170..Q;NSP170..CVT..TH201907

main90949-01D99iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D91iNSP170..6F..TH;NSP170..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main90949-01D98iNSP170..Q;NSP170..CVT..TH201607-201907

7701

9011908868

main90119-08868

90119T0136

main90119-T0136

90119T0319

main90119-T0319

9046808035

main90468-08035

90468T0004

main90468-T0004

29 parts on this diagram · 4 diagrams in section
