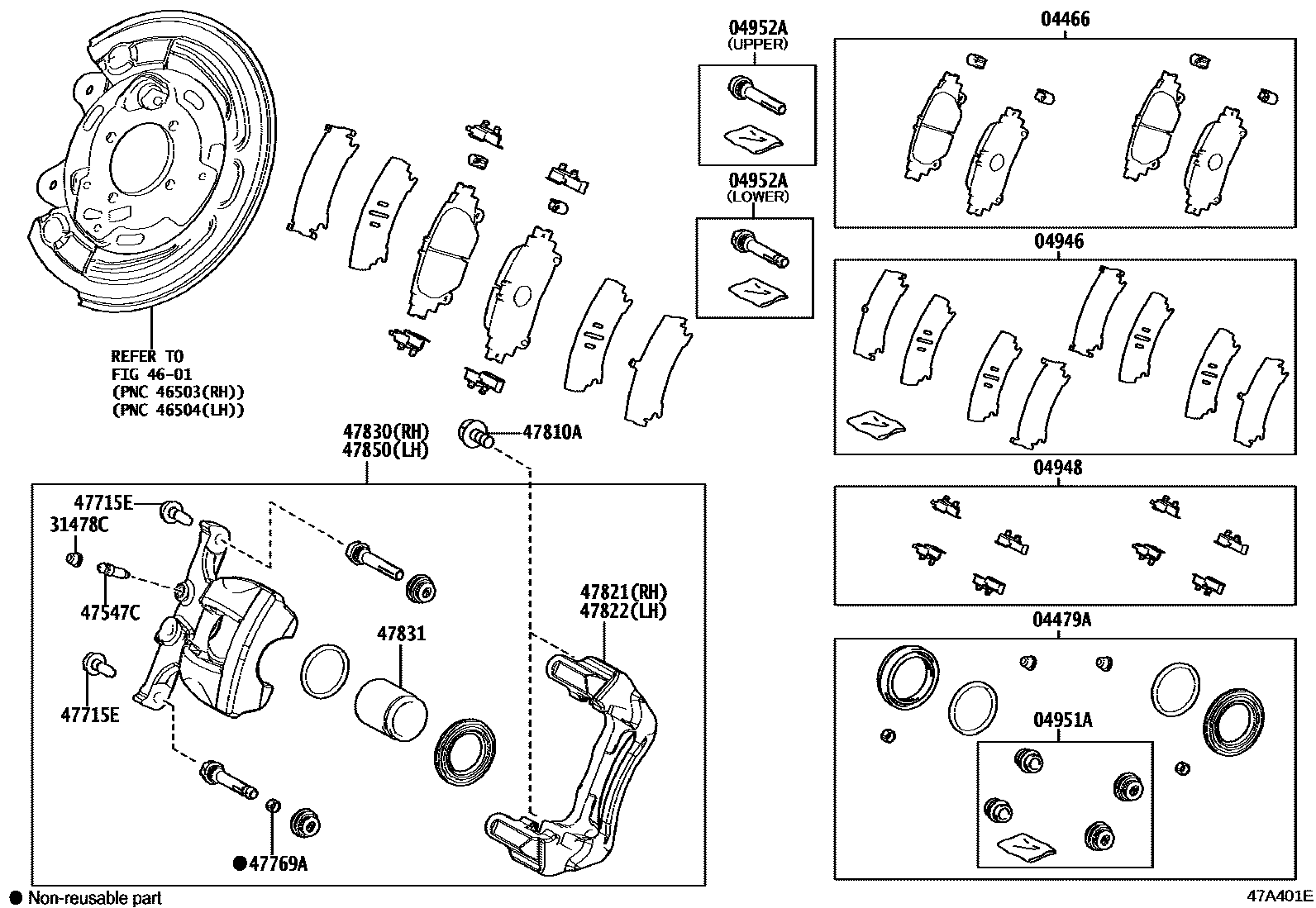

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0D040iNSP170..6F..TH201907-202203

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0D070iNSP170201607-201907

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0D020iNSP170201607-201907

04948FITTING KIT, DISC BRAKE, REAR

main04948-0D010iNSP170201607-201907

04951ABUSH KIT, DISC BRAKE, REAR

main04951-06010iNSP170201607-201907

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0D080×2iNSP170201607-201907

UPPER SIDE

main04952-0D090×2iNSP170..6F..TH201907-202203

LOWER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90016-AJ101×2iNSP170..CVT;NSP170..6F..IDN201907

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90016-AJ002×2iNSP170..CVT;NSP170..6F..IDN201907

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main90016-AA610×4iNSP170201607-201907

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06140×2iNSP170201607-201907

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-T0495×4iNSP170201607-201907

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0D050iNSP170201607-201907

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0D050iNSP170201607-201907

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0D050iNSP170201607-201907

47831PISTON, REAR DISC BRAKE

main47831-0D050×2iNSP170201607-201907

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0D050iNSP170201607-201907

17 parts on this diagram · 1 diagram in section
