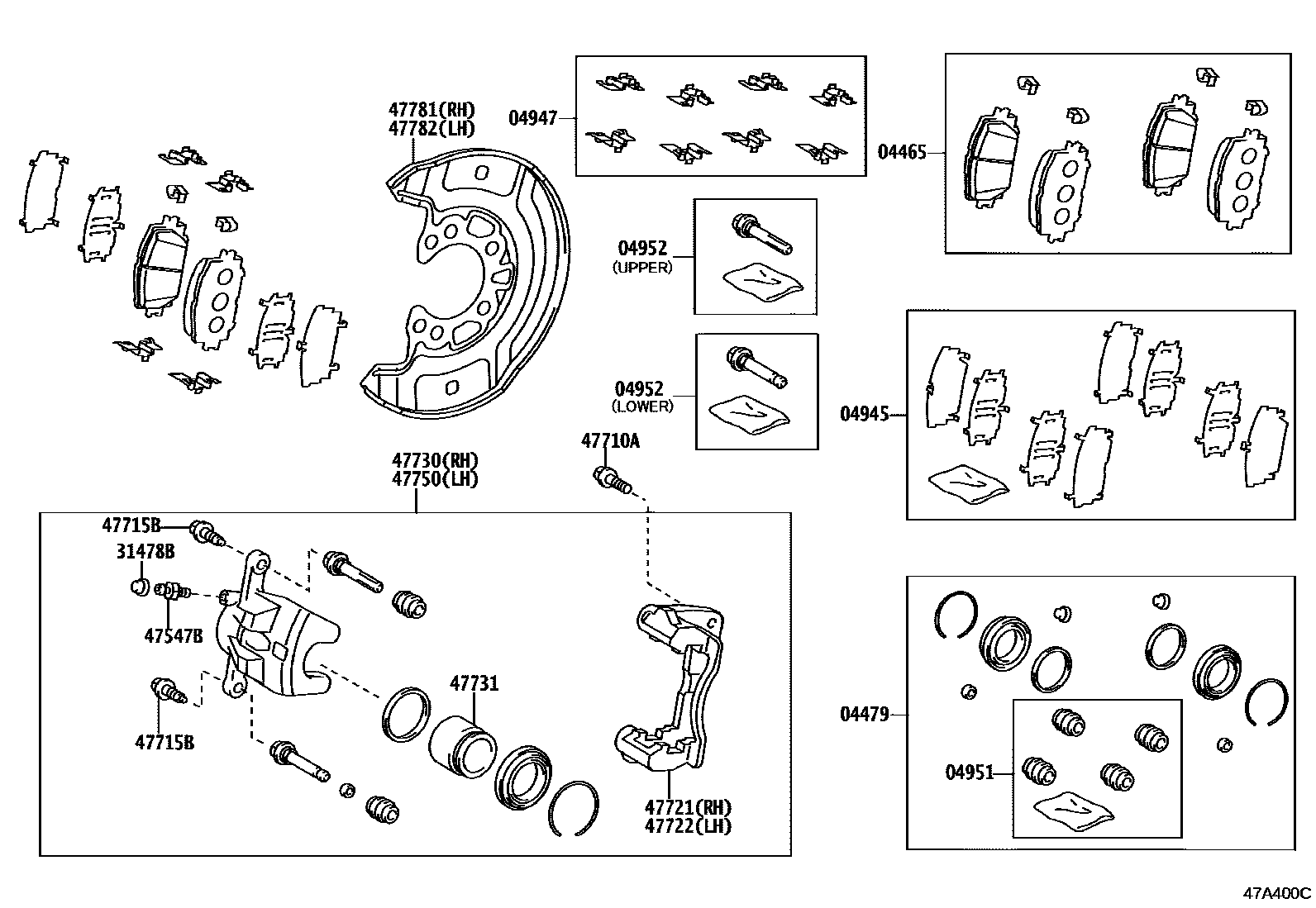

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D200iNSP170201607-201907

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D240iNSP170201607-201907

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D130iNSP170201607-201907

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D070iNSP170201607-201907

04951BUSH KIT, DISC BRAKE, FRONT

main04951-02010iNSP170..6F..TH201907-202203

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0D060×2iNSP170201607-201907

LOWER SIDE

main04952-0D070×2iNSP170201607-201907

UPPER SIDE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90016-AJ101×2iNSP170201607-201907

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90016-AJ002×2iNSP170201607-201907

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNSP170..6F..TH201907-202203

*12-1.25PX29.5-23,(J)

main90105-T0186×4iNSP170..6F..TH201907-202203

*12-1.25PX29.5-23,(L)

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA610×4iNSP170201607-201907

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D180iNSP170201607-201907

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D180iNSP170201607-201907

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D180iNSP170201607-201907

47731PISTON, FRONT DISC BRAKE

main47731-0D180×2iNSP170201607-201907

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D180iNSP170201607-201907

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D180iNSP170201607-201907

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D180iNSP170201607-201907

17 parts on this diagram · 1 diagram in section
