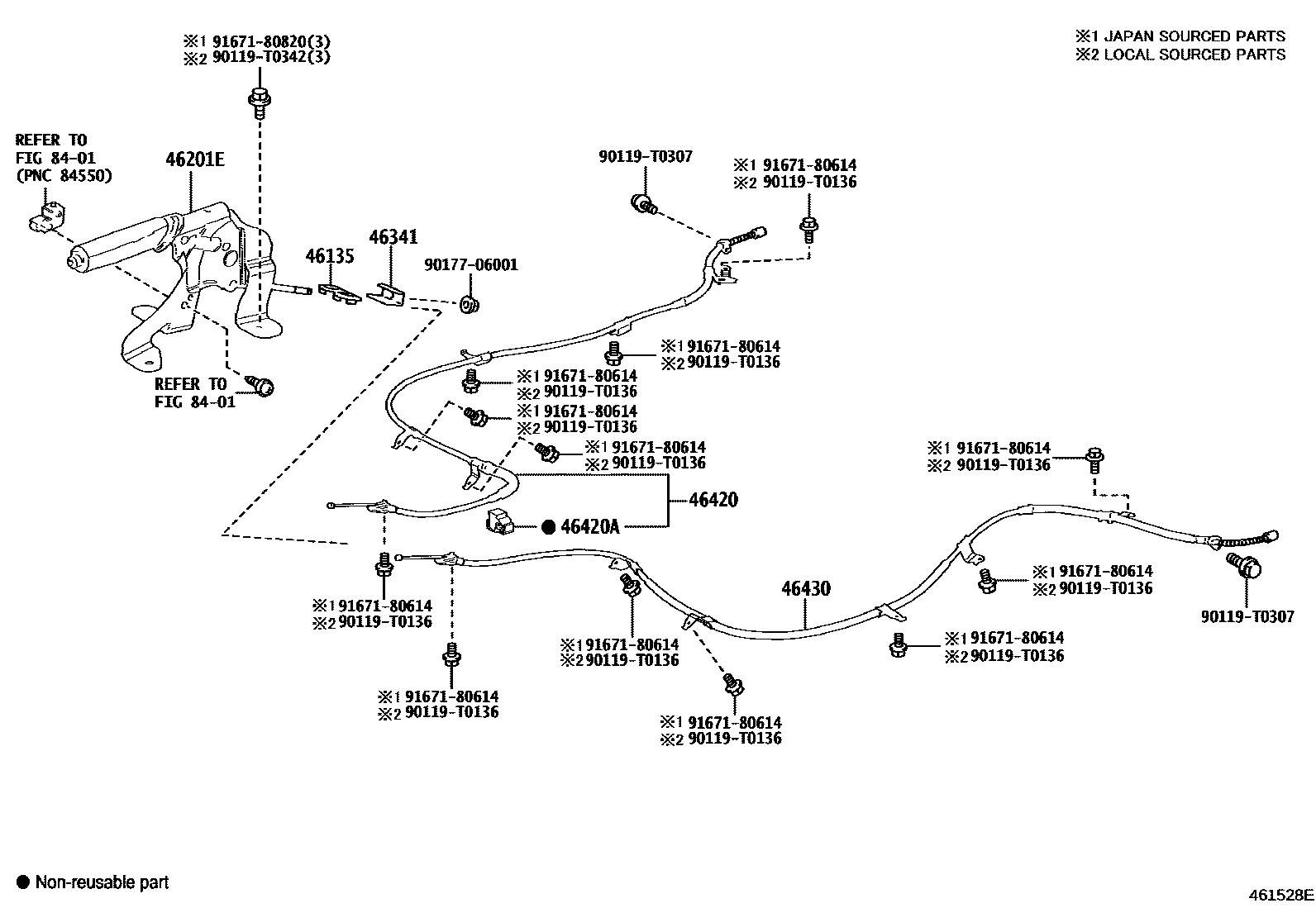

PARKING BRAKE & CABLE

0001 1 0002 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D060iNSP170..CVT;NSP170..6F..IDN201907

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D410-C0iNSP170..Q,V201907

BLACK,TRIM2#

main46201-0D430-C0iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201907

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D120iNSP170..6F..TH201907-202203

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D320iNSP170201607-201609

main46420-0D321iNSP170201609-201907

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-52060iNSP170201607-201907

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D320iNSP170201607-201609

main46430-0D321iNSP170201609-201907

8401

90119T0136

main90119-T0136

90119T0307

main90119-T0307

90119T0342

main90119-T0342

9017706001

main90177-06001

9167180614

main91671-80614

9167180820

main91671-80820

13 parts on this diagram · 2 diagrams in section
