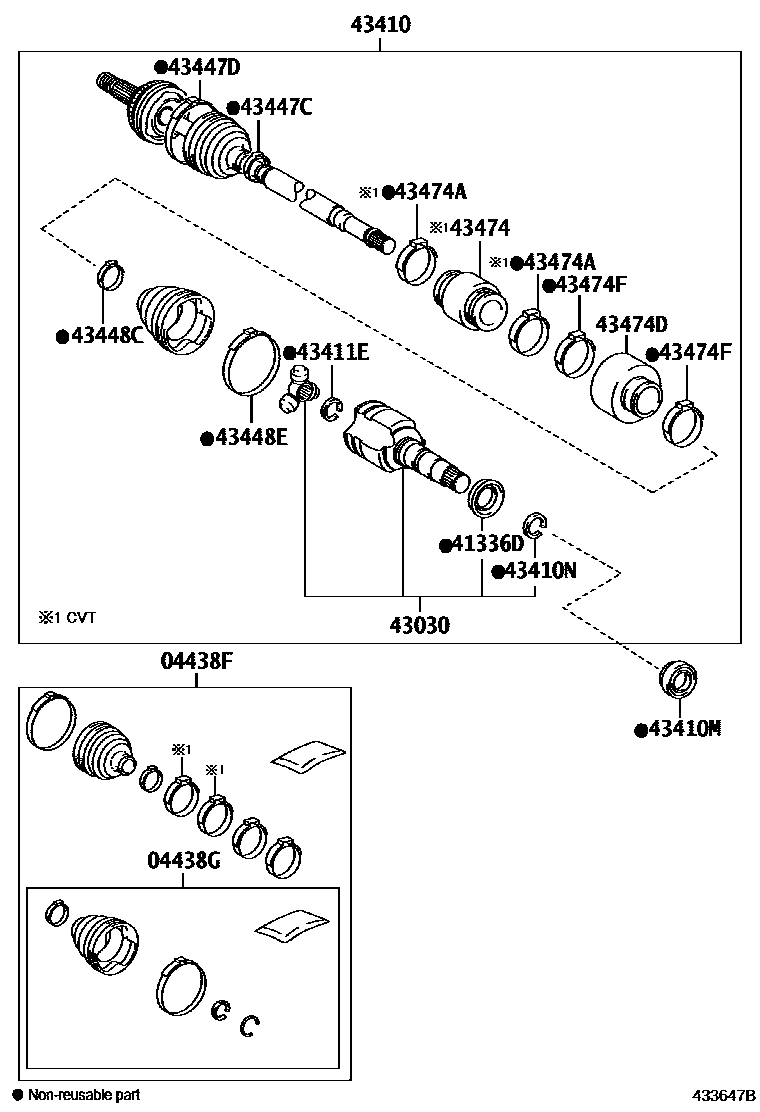

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D410iNSP170..6F201607-201707

main04427-0D411iNSP170..6F..IDN201907-202208

main04427-0D412iNSP170..6F..IDN202208

main04427-0D420iNSP170..CVT201607-201707

main04427-0D421iNSP170..CVT201707-201907

main04427-0D422iNSP170..CVT202208

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D270iNSP170..6F..IDN201907

main04437-0D280iNSP170..CVT201607-201907

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D120iNSP170..CVT201607-201907

main41336-0D130iNSP170..6F..TH201907-202203

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D050iNSP170..CVT201907

main43040-0D060iNSP170..6F..TH201907-202203

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D490iNSP170..6F..IDN201907

main43410-0D500iNSP170..CVT201607-201907

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34046iNSP170..CVT201607-201808

main90311-34050iNSP170..CVT201907

main90311-35065iNSP170..6F201607-201907

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0D390iNSP170..CVT201607-201907

main43425-0D440iNSP170..6F..IDN201907

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D420iNSP170..CVT;NSP170..6F..IDN201907

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DB10iNSP170201607-201907

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0DB30iNSP170201607-201907

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DB10iNSP170201607-201907

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0DB00iNSP170201607-201907

43474DAMPER, DRIVE SHAFT

main43474-0D290iNSP170..CVT201607-201907

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-0DB40×2iNSP170..CVT201607-201907

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D140iNSP170201607-201907

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0DA50×2iNSP170201607-201907

16 parts on this diagram · 2 diagrams in section
