TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

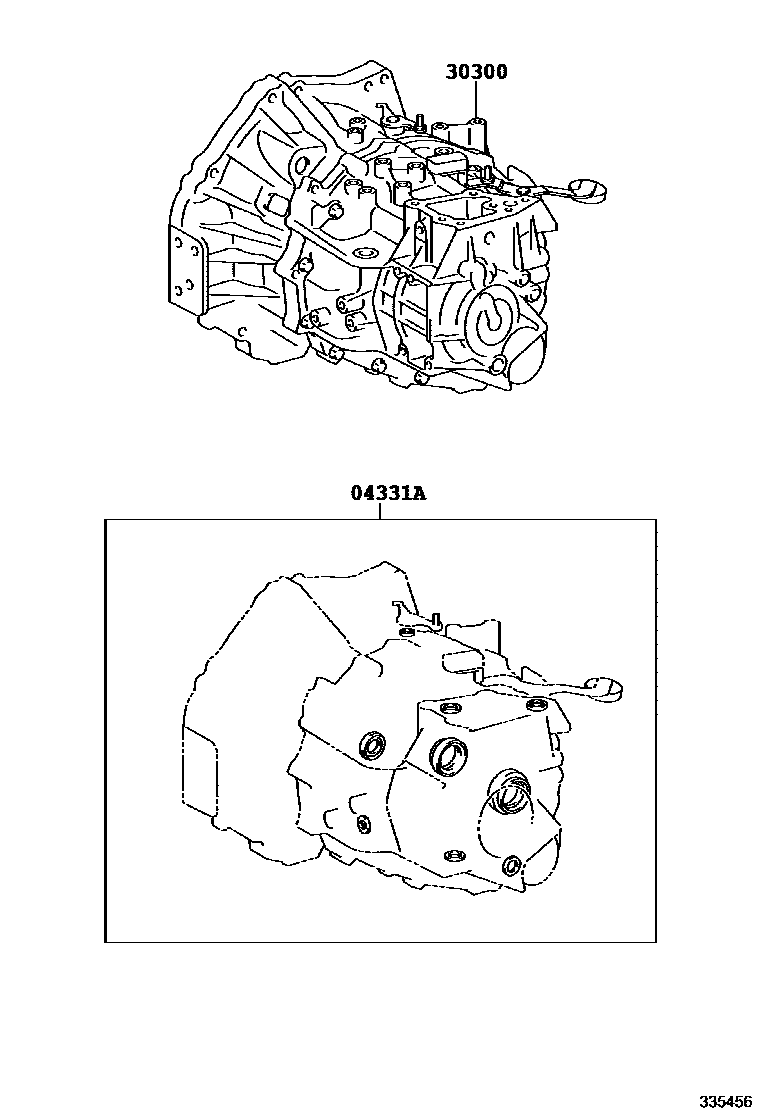

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20252i201607-201611

main04331-20270i201612-201907

30300TRANSAXLE ASSY, MANUAL

main30300-52B30i201607-201907

EC6B

2 parts on this diagram · 1 diagram in section
