Toyota 119330 — CLUTCH PEDAL & FLEXIBLE HOSE

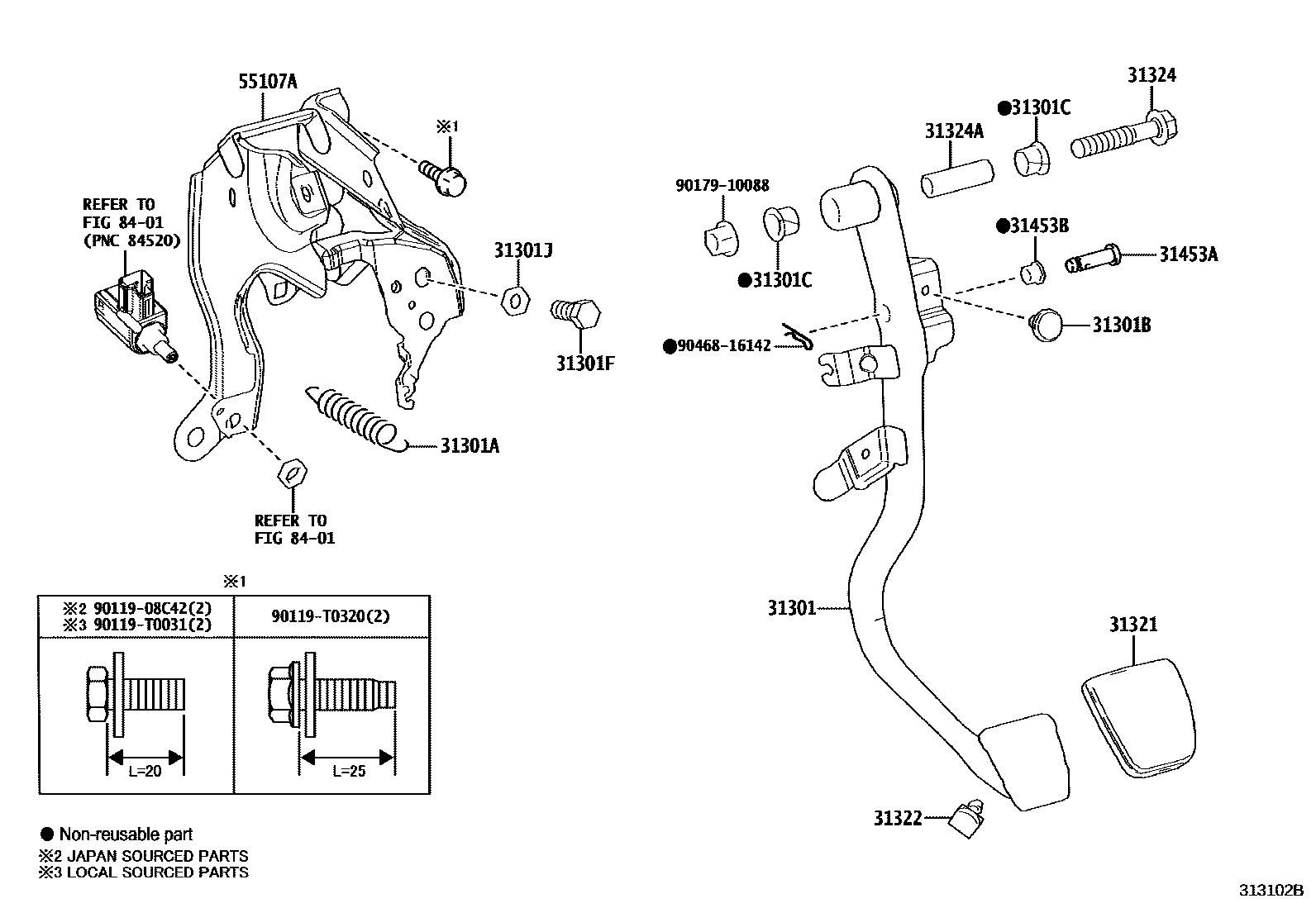

Parts diagram
31301PEDAL SUB-ASSY, CLUTCH
90541-T0013
90386-13015
90170-10017
91112-61025
90541-06036
90507-14055
31301-0D130
31301ASPRING(FOR CLUTCH PEDAL)
31301BCUSHION, NO.1(FOR CLUTCH PEDAL)
31301CBUSH(FOR CLUTCH PEDAL)
31301FBOLT(FOR CLUTCH PEDAL STOPPER)
31301JNUT(FOR CLUTCH PEDAL STOPPER)
31321PAD, CLUTCH PEDAL
31321-52010
31322STOPPER, CLUTCH PEDAL
31322-52010
31324SHAFT, CLUTCH PEDAL
90387-10003
90387-T0027
90105-10444
31324ACOLLAR, CLUTCH PEDAL SHAFT
31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
55107ASUPPORT SUB-ASSY, CLUTCH PEDAL
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011908C42
90119-08C42
90119T0031
90119-T0031
90119T0320
90119-T0320
9017910088
90179-10088
9046816142
90468-16142

19 parts on this diagram · 2 diagrams in section

CLUTCH PEDAL & FLEXIBLE HOSE for Toyota 119330

This section contains 32 genuine Toyota parts for the CLUTCH PEDAL & FLEXIBLE HOSE system of the Toyota 119330. Key components include: CLUTCH MASTER CYLINDER, CLUTCH RELEASE CYLINDER, PEDAL SUB-ASSY, CLUTCH, SPRING(FOR CLUTCH PEDAL), CUSHION, NO.1(FOR CLUTCH PEDAL).
